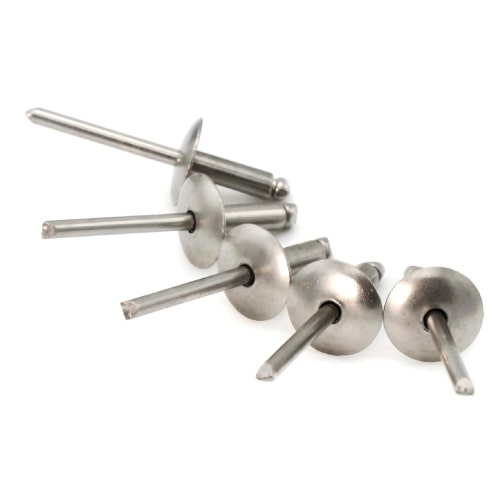

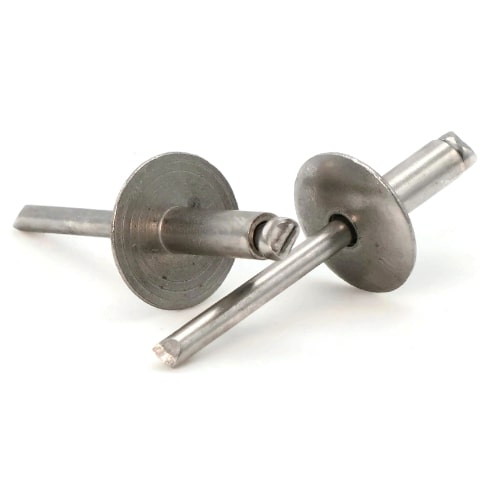

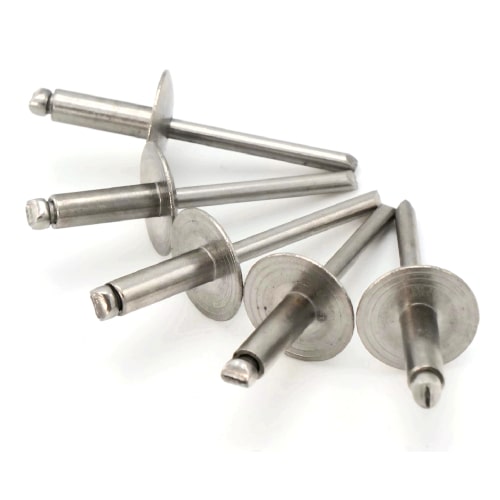

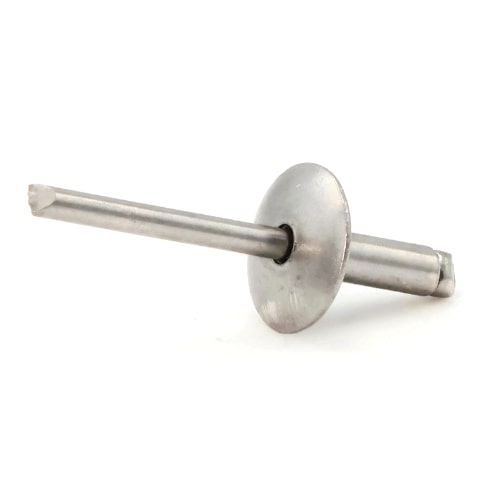

3/16" (#6 LF) POP Rivet Large Flange 304 Stainless Steel

3/16" Stainless Steel Large Flange Open End Blind POP Rivets

POP Rivet, or Blind Rivet, in 304 Stainless Steel

  • 3/16" or #6LF (Rivet Sizing Chart)
  • Large flange rivets are used when there is no access to the blind side of the two materials
  • Larger washer distributes pressure over a greater surface area
  • Used to join two materials together quickly
  • After mandrel breaks off domed head is left exposed
  • Commonly used to prevent damage to soft materials and detur pull-through
  • 304 Stainless steel large flange rivets are suitable for harsh environments due to its corrosion resistance

Stainless Steel Open End Large Flange Blind Rivet Spec Sheet

This item qualifies for FREE SHIPPING on orders $250+
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
POP Rivet 64LF Large Flange SS - 3/16" x 1/4" Grip (.188 - .250)
SKU #1003-100004-08
POP Rivet 64LF Large Flange SS - 3/16" x 1/4" Grip (.188 - .250)
SKU #1003-100004-08
1
 NA
25
 $9.00 (0.36/ea)
100
 $33.00 (0.33/ea)
1000
 $310.00 (0.31/ea)
Subtotal: $0.00 /
POP Rivet 66LF Large Flange SS - 3/16" x 3/8" Grip (.251 - .375)
SKU #1003-100004-24
POP Rivet 66LF Large Flange SS - 3/16" x 3/8" Grip (.251 - .375)
SKU #1003-100004-24
1
 NA
25
 $10.25 (0.41/ea)
100
 $38.00 (0.38/ea)
1000
 $350.00 (0.35/ea)
Subtotal: $0.00 /
POP Rivet 68LF Large Flange SS - 3/16" x 1/2" Grip (.376 - .500)
SKU #1003-100004-40
POP Rivet 68LF Large Flange SS - 3/16" x 1/2" Grip (.376 - .500)
SKU #1003-100004-40
1
 NA
25
 $11.25 (0.45/ea)
100
 $42.00 (0.42/ea)
1000
 $410.00 (0.41/ea)
Subtotal: $0.00 /
POP Rivet 610LF Large Flange SS - 3/16" x 5/8" Grip (.501 - .625)
SKU #1003-100004-56
POP Rivet 610LF Large Flange SS - 3/16" x 5/8" Grip (.501 - .625)
SKU #1003-100004-56
1
 NA
25
 $14.25 (0.57/ea)
100
 $53.00 (0.53/ea)
1000
 $510.00 (0.51/ea)
Subtotal: $0.00 /
POP Rivet 612LF Large Flange SS - 3/16" x 3/4" Grip (.626 - .750)
SKU #1003-100004-76
POP Rivet 612LF Large Flange SS - 3/16" x 3/4" Grip (.626 - .750)
SKU #1003-100004-76
1
 NA
25
 $14.75 (0.59/ea)
100
 $58.00 (0.58/ea)
1000
 $560.00 (0.56/ea)
Subtotal: $0.00 /

Frequently Used With

Rivet Gauge
Rivet Gauge 1050-202
Rivet Gauge
Rivet Gauge
Blind Rivet Measuring & Identification Tool

Our Price: $9.00
Subtotal: $0.00 /
POP Rivet Hand-Operated Tool - 3/32" through 3/16" Rivet Size
POP Rivet Hand-Operated Tool - 3/32" through 3/16" Rivet Size 1050-082
POP Rivet Hand-Operated Tool - 3/32
POP Rivet Hand-Operated Riveter
Rivet Tool for Installing Blind Rivets - 3/16" Capacity

Our Price: $28.74
Subtotal: $0.00 /
POP Rivet Pneumatic Air Rivet Tool - 3/32" through 3/16" Rivet Size
POP Rivet Pneumatic Air Rivet Tool - 3/32" through 3/16" Rivet Size 1050-080
POP Rivet Pneumatic Air Rivet Tool - 3/32
POP Rivet Pneumatic Air Powered Riveter
Rivet Gun for Installing Blind Rivets - 3/16" Capacity

Our Price: $172.49
Subtotal: $0.00 /
Rivet Washers 304 Stainless Steel - 3/16" (ID.197, OD.500, TK.058)
Rivet Washers 304 Stainless Steel - 3/16" (ID.197, OD.500, TK.058) 1836-004-0022
Rivet Washers 304 Stainless Steel - 3/16
1
 NA
25
 $3.75 (0.15/ea)
100
 $9.00 (0.09/ea)
1000
 $70.00 (0.07/ea)
Subtotal: $0.00 /
Norseman Magnum Super Premium Jobber Length Drill Bits - #11
Norseman Magnum Super Premium Jobber Length Drill Bits - #11 1052-338-0062
Norseman Magnum Super Premium Jobber Length Drill Bits - #11
1
 $5.61 (5.61/ea)
5
 $22.50 (4.5/ea)
10
 $43.40 (4.34/ea)
Subtotal: $0.00 /
Product Specifications
Corrosion Resistant
Yes
Drill (Hole) Size
#11
Flange Diameter Nominal
0.625
Grade
304
Head Height
0.092
Head Style
Dome
Mandrel Diameter Nominal
0.114
Material
Stainless Steel
Product Type
Large Flange POP Rivets (Blind Rivets) Open End
Rivet Diameter
(#6) 3/16" (.1875)
Shear (lbs)
950
System of Measurement (Unit)
Inch
Tensile PSI
1200
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
yes
