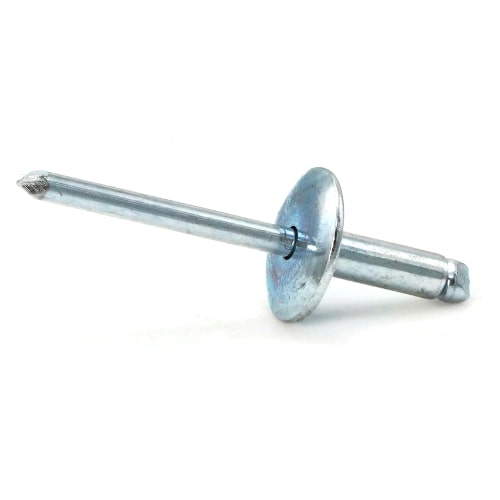

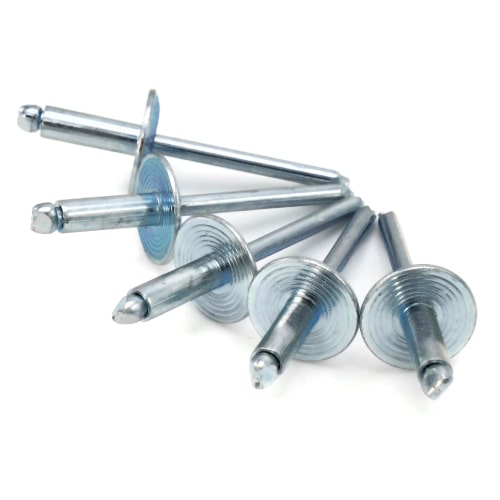

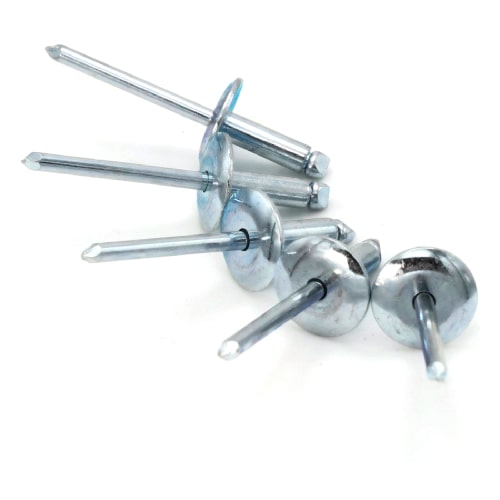

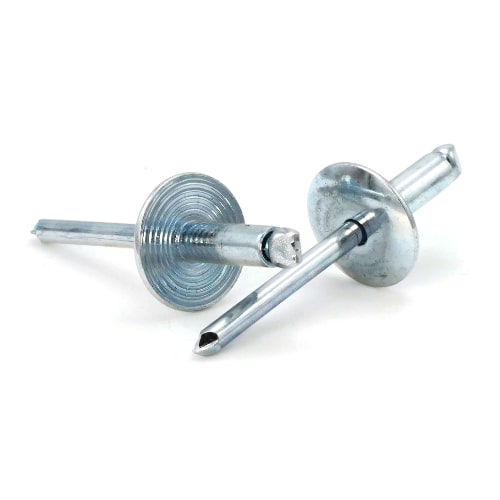

3/16" (#6 LF) POP Rivet Large Flange All Steel

3/16" SBS Steel Large Flange Open End Blind POP Rivets

POP Rivet, or Blind Rivet, in Steel

  • 3/16" or #6LF (Rivet Sizing Chart)
  • SBS Steel
  • Large flange rivets are used when there is no access to the blind side of the two materials
  • Larger washer distributes pressure over a greater surface area
  • Used to join two materials together quickly
  • After mandrel breaks off domed head is left exposed
  • Commonly used to prevent damage to soft materials and deter pull-through

All Steel Open End Large Flange Blind Rivet Spec Sheet

This item qualifies for FREE SHIPPING on orders $99+
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
POP Rivet Large Flange All Steel - 6-4LF 3/16" (.188-.250 Grip)
SKU #1822-006-0002
POP Rivet Large Flange All Steel - 6-4LF 3/16" (.188-.250 Grip)
SKU #1822-006-0002
1
 NA
25
 $4.00 (0.16/ea)
100
 $14.00 (0.14/ea)
1000
 $120.00 (0.12/ea)
Subtotal: $0.00 /
POP Rivet Large Flange All Steel - 6-6LF 3/16" (.251-.375 Grip)
SKU #1822-006-0012
POP Rivet Large Flange All Steel - 6-6LF 3/16" (.251-.375 Grip)
SKU #1822-006-0012
1
 NA
25
 $4.75 (0.19/ea)
100
 $13.00 (0.13/ea)
1000
 $110.00 (0.11/ea)
Subtotal: $0.00 /
POP Rivet Large Flange All Steel - 6-8LF 3/16" (.376-.500 Grip)
SKU #1822-006-0022
POP Rivet Large Flange All Steel - 6-8LF 3/16" (.376-.500 Grip)
SKU #1822-006-0022
1
 NA
25
 $5.00 (0.2/ea)
100
 $15.00 (0.15/ea)
1000
 $130.00 (0.13/ea)
Subtotal: $0.00 /

Frequently Used With

Norseman Magnum Super Premium Jobber Length Drill Bits - #11
Norseman Magnum Super Premium Jobber Length Drill Bits - #11 1052-338-0062
Norseman Magnum Super Premium Jobber Length Drill Bits - #11
1
 $5.61 (5.61/ea)
5
 $22.50 (4.5/ea)
10
 $43.40 (4.34/ea)
Subtotal: $0.00 /
POP Rivet Hand-Operated Tool - 3/32" through 3/16" Rivet Size
POP Rivet Hand-Operated Tool - 3/32" through 3/16" Rivet Size 1050-082
POP Rivet Hand-Operated Tool - 3/32
POP Rivet Hand-Operated Riveter
Rivet Tool for Installing Blind Rivets - 3/16" Capacity

Our Price: $28.74
Subtotal: $0.00 /
POP Rivet Pneumatic Air Rivet Tool - 3/32" through 3/16" Rivet Size
POP Rivet Pneumatic Air Rivet Tool - 3/32" through 3/16" Rivet Size 1050-080
POP Rivet Pneumatic Air Rivet Tool - 3/32
POP Rivet Pneumatic Air Powered Riveter
Rivet Gun for Installing Blind Rivets - 3/16" Capacity

Our Price: $172.49
Subtotal: $0.00 /
Rivet Washers Zinc Plated Steel - 3/16" (ID.197, OD.500, TK.062)
Rivet Washers Zinc Plated Steel - 3/16" (ID.197, OD.500, TK.062) 1836-006-0022
Rivet Washers Zinc Plated Steel - 3/16
1
 NA
25
 $3.25 (0.13/ea)
100
 $8.00 (0.08/ea)
1000
 $30.00 (0.03/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Drill (Hole) Size
#11
Finish
Zinc Plated
Flange Diameter Nominal
0.625
Head Height Max
0.092
Head Style
Dome
Mandrel Diameter Nominal
0.114
Material
Steel
Other
Open End, Large Flange
Pilot Hole
0.192 - 0.196
Product Type
Blind Rivets
Rivet Diameter
(#6) 3/16" (.1875)
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
