2"-4-1/2 Hot Dip Galvanized Plain Pattern Eye Bolts with Nuts

2"-4.5 Hot Dip Galvanized Plain Pattern Eye Bolts

2"-4.5 Plain Pattern Eye Bolts with Nuts


  • Drop Forged, Passivated and Electropolished for a durable corrosion resistant finish
  • ASTM A-193-B8 and UNC-2A
  • Domestic Forged USA Made Product
  • HDG Steel provides superior corrosion resistance due to its tightly bonded Molten Zinc Alloy finish
  • Due to the finishing process for Hot Dip Galvanized fasteners, it is recommended to only use Hot Dip Galvanized fasteners with Hot Dip Galvanized fasteners and not mix metals. This can create threading and durability issues.

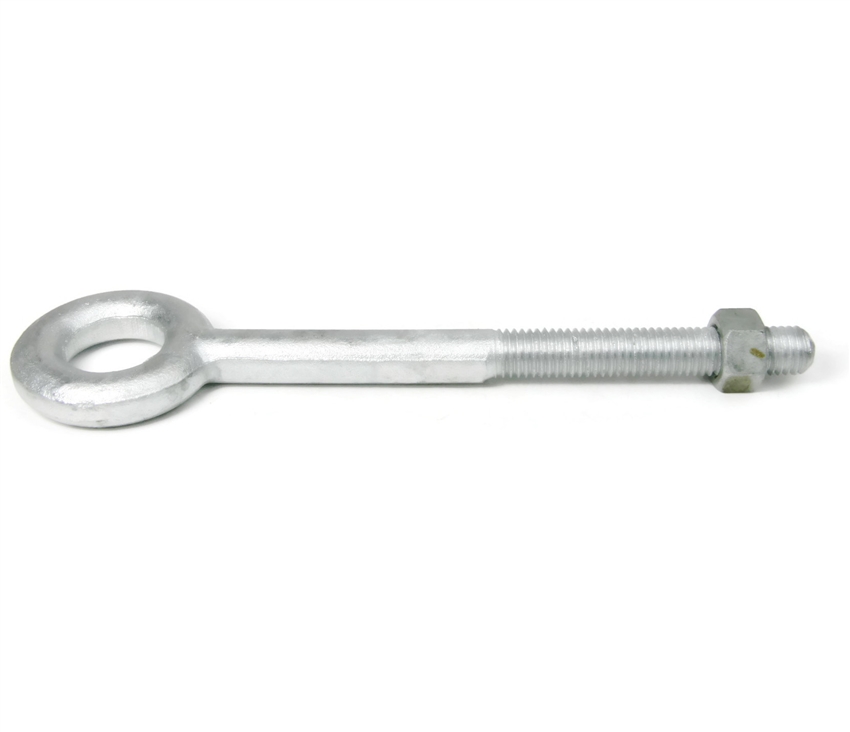

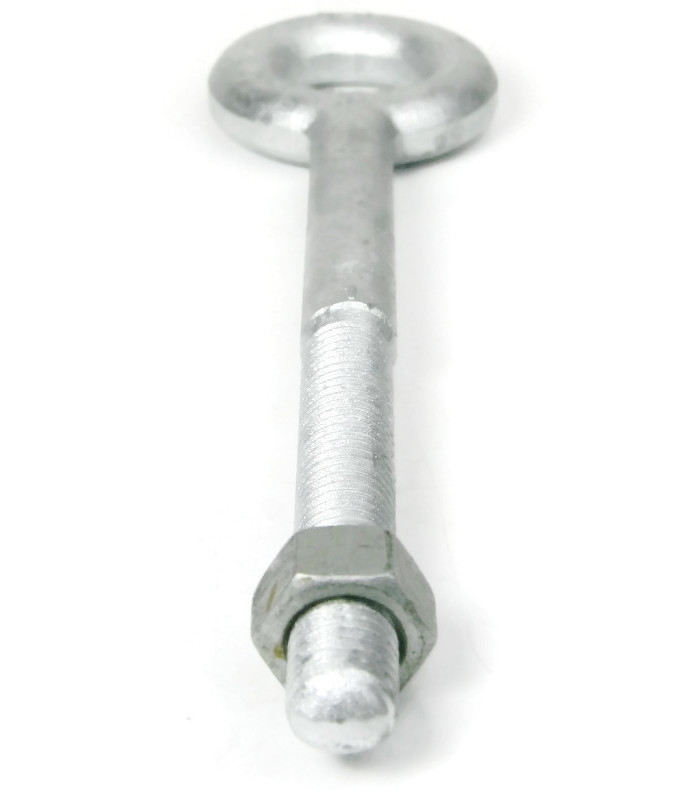

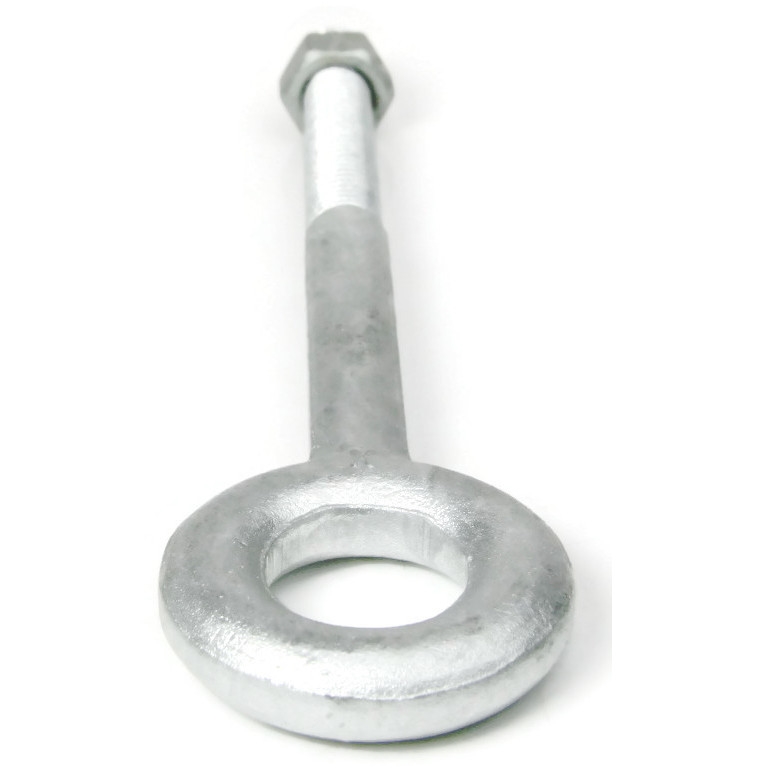

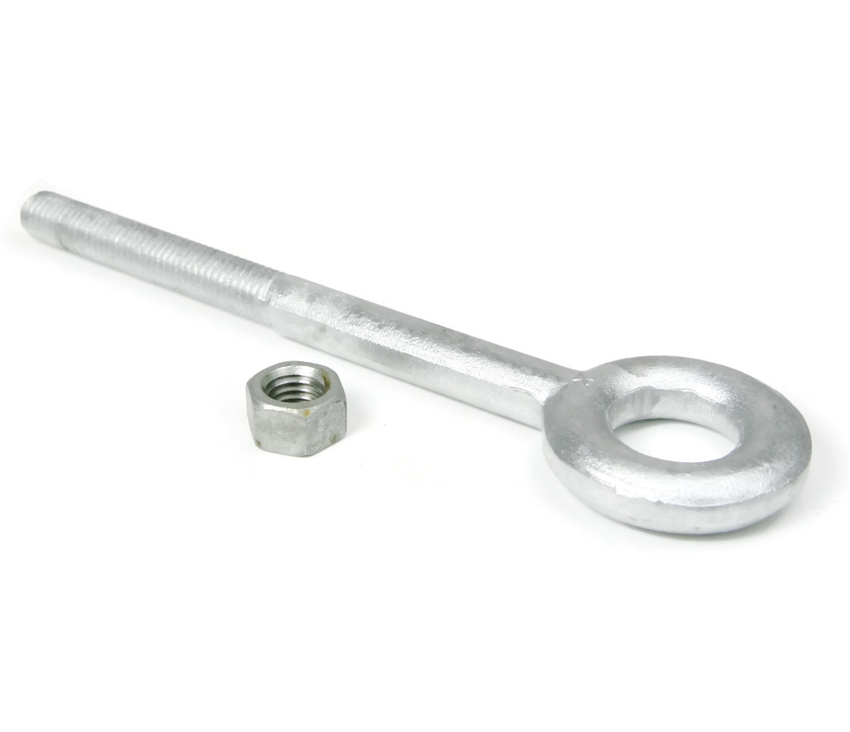

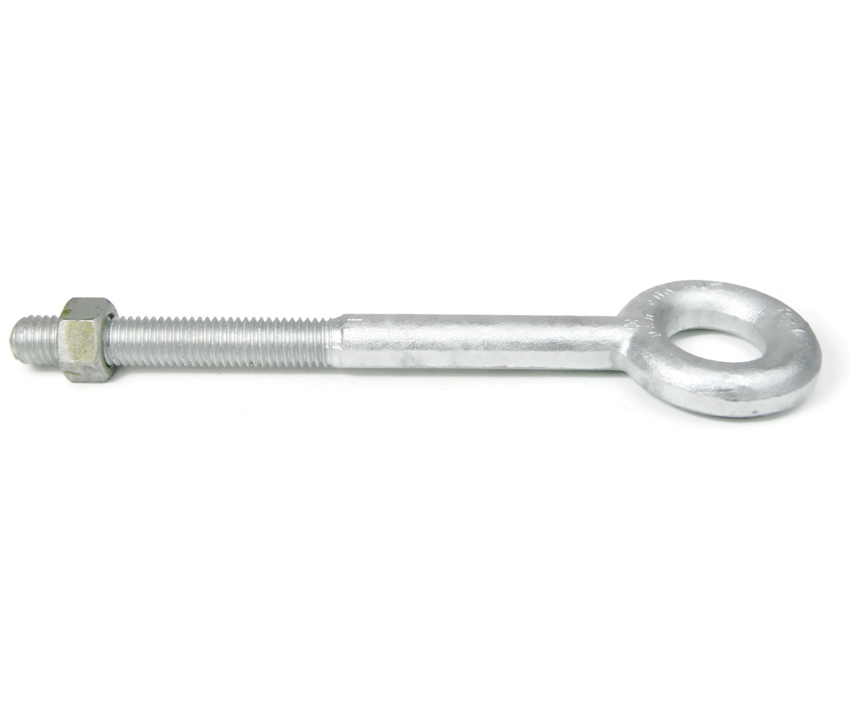

2"-4-1/2 Hot Dip Galvanized Plain Pattern Eye Bolts with Nuts have a threaded shank with a ring for a head. This ring is used to hold a hanging fitting or a load, commonly seen in industrial applications. In a shoulder pattern Eye Bolt, there is a shoulder between the shank and the eye. The shoulder pattern variety features a shoulder between the ring and the shank. Comes with Nut.

If you are unsure if an Eye Bolt has the appropriate specifications for your application, or have a question regarding any of the information concerning Eye bolts, please call us at 866-573-0445 for further assistance.

Please follow Ken Forge's recommendations for load capacities of Eye Bolts and their safety information for the installation and usage of Eye bolts on their website.

Sizes listed as: Shank Diameter - Thread Pitch x Shank Length
Proudly Made in The USA

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Nut Eye Bolt Plain Pattern Hot Dipped Galvanized 2"-4.5 x 12"
SKU #1556-022-0002
Nut Eye Bolt Plain Pattern Hot Dipped Galvanized 2"-4.5 x 12"
SKU #1556-022-0002
1
$357.18 (357.18/ea)
10
$3,061.50 (306.15/ea)
100
$28,168.00 (281.68/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$5.17 (5.17/ea)
100
$468.00 (4.68/ea)
1000
$4,470.00 (4.47/ea)
Subtotal: $0.00 /
1
$218.98 (218.98/ea)
10
$2,137.60 (213.76/ea)
Subtotal: $0.00 /
1
$298.73 (298.73/ea)
10
$2,916.10 (291.61/ea)
Subtotal: $0.00 /

Product Specifications
ASTM
A-193-B8
Color
Gray
Corrosion Resistant
Yes
Drive Style
External Hex
Eye Bolt Pattern
Plain
Eye Inside Diameter
3-1/4"
Eye Outside Diameter
6-7/8"
Finish
Hot Dip Galvanized
Head Style
Eye
Material
Steel
Other
Includes Nut
Product Type
Eye Bolts
Shank Diameter
2"
Standards Met
ASTM A-193-B8
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
4.5 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
