Metric Hex Finish Nuts, Stainless Steel A4 (316), M5 x .8 (8.0 Flats x 3.7 Thick)
Metric Sized Finished Hex Nuts in A4 Stainless Steel
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.06*
|
| 100 – 999 |
$0.04*
|
| 1000+ |
$0.03*
|
- Across Flats (Width): Min 7.78mm, Max 8.00mm
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: M5
- Drive Style: External Hex
- Thread Direction: Right Hand
- Fit: 6H
- Grade: A4
- Internal Thread: M5-0.8
- Marine Grade: Yes
- Material: Stainless Steel
- Part Number: 3661124192056
- Product Type: Hex Finish Nut
- Size Type: Regular
- System of Measurement: Metric
- Thread Direction: Right Hand
- Thread Pitch: .8mm
- Thread Size: M5
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
|
|
|

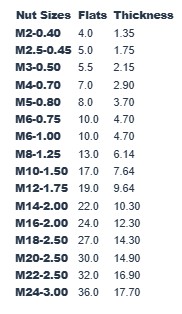

| Nut Sizes | Flats | Thickness |
| M2-0.40 | 4.0 | 1.35 |
| M2.5-0.45 | 5.0 | 1.75 |
| M3-0.50 | 5.5 | 2.15 |
| M4-0.70 | 7.0 | 2.90 |
| M5-0.80 | 8.0 | 3.70 |
| M6-1.00 | 10.0 | 4.70 |
| M8-1.25 | 13.0 | 6.14 |
| M10-1.50 | 17.0 | 7.64 |
| M12-1.75 | 19.0 | 9.64 |
| M14-2.00 | 22.0 | 10.30 |
| M16-2.00 | 24.0 | 12.30 |
| M18-2.50 | 27.0 | 14.30 |
| M20-2.50 | 30.0 | 14.90 |
| M22-2.50 | 32.0 | 16.90 |
| M24-3.00 | 36.0 | 17.70 |
Product number:
MHNA45
Resources:
Metric Hex Nut Size Chart
