Zinc Plated Keps K Lock Nuts

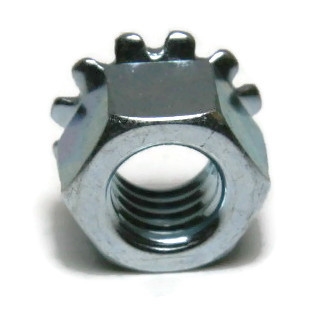

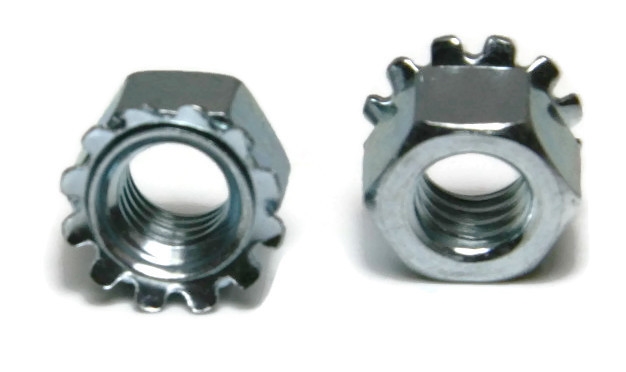

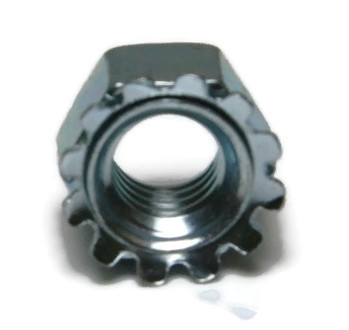

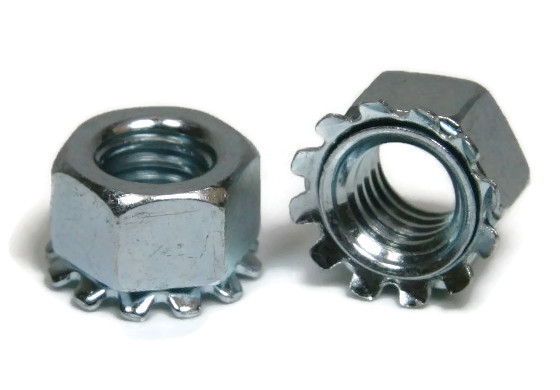

K-Lock Nuts with External Tooth Lock Washers - Zinc Plated Steel
- Hexagonal shape
- Features an attached free-spinning external tooth (star) lock washer
- Lock washer helps to prevent unintentional loosening of the assembly
- Zinc plated to add durability and a layer of protection
- REACH and RoHS compliant
- UNC and UNF Sizes Available
|
Nut Size
|
Width Across Flats | Overall Thickness |
Washer Diameter
|
|
#4
|
1/4" |
Max 0.098 - Min 0.087
|
Max 0.286 - Min 0.277 |
| #5 | 5/16" | Max 0.114 - Min 0.102 | Max 0.348 - Min 0.338 |
|
#6
|
5/16" | Max 0.114 - Min 0.102 | Max 0.348 - Min 0.338 |
|
#8
|
11/32" | Max 0.130 - Min 0.117 | Max 0.381 - Min 0.370 |
|
#10
|
3/8" | Max 0.130 - Min 0.117 | Max 0.406 - Min 0.395 |
| #12 | 7/16" | Max 0.161 - Min 0.148 | Max 0.506 - Min 0.494 |
| 1/4" | 7/16" | Max 0.193 - Min 0.178 | Max 0.506 - Min 0.494 |
| 5/16" | 1/2" | Max 0.273 - Min 0.258 | Max 0.592 - Min 0.579 |
| 3/8" | 9/16" | Max 0.385 - Min 0.365 | Max 0.665 - Min 0.651 |
See Product Specifications
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Drive Style
External Hex
Finish
Zinc Plated
Material
Steel
Standards Met
REACH, RoHS
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
