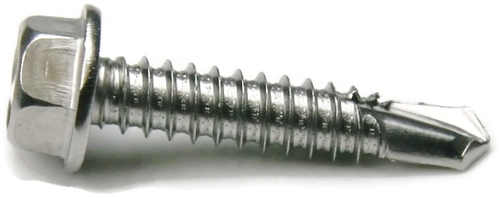

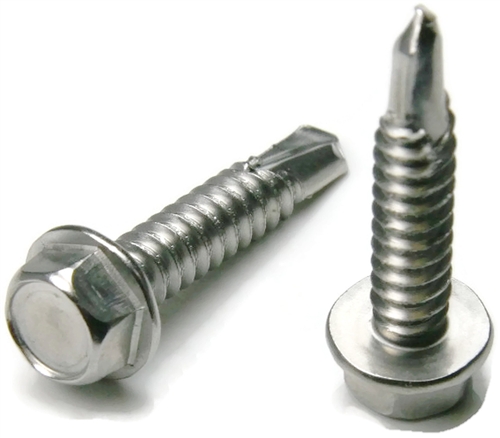

#10-16 | 410 Stainless Steel Hex Washer Head Self Drilling Sheet Metal Screws
Diameter - Thread Pitch: #10-16
- #10-16
- Hexagon drive for use with a wrench or socket
- Fully Threaded from tip to head
- Integral washer at the top of the head
- TEK Self drilling screws
- 410 Stainless steel hex washer head self drilling screws are hardened to make installation in most materials easier
- 410 Stainless steel is hardened and rust resistant
- NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
See Product Specifications
Select Package Quantity
Loading ...
Product Specifications
Across Flats (Width)
5/16" (Max 0.312 - Min 0.309)
ANSI
B18.6.4
Color
Silver
Corrosion Resistant
Yes
Diameter
#10
Drive Style
External Hex
Driver Max RPM
2,300
Grade
410
Hardness
40 Rockwell C
Head Size
5/16"
Head Style
Hex Washer
Material
Stainless Steel
Point Type
TEK
Product Type
Self Drilling Screws
Standards Met
ANSI B18.6.4
System of Measurement (Unit)
Inch
TEK Self Drilling Point
TEK-3 (0.353)
Tensile PSI
180,000 PSI Heat Treated
Thread Diameter Major
(#10) 0.189"
Thread Diameter Minor
(#10) 0.141"
Thread Direction
Right Hand
Thread Pitch (Count)
16 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Wrench Size
5/16"
