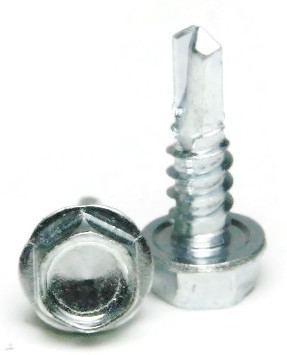

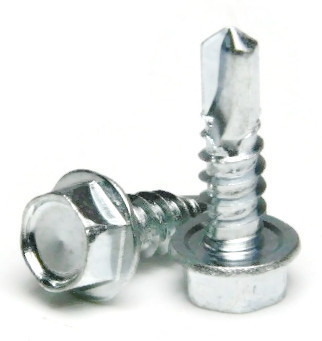

#6-20 Hex Washer Head Sheet Metal Screws Self Drill Zinc Plated Steel

#6-20 Zinc Plated Hex Washer Head Self Drilling Sheet Metal Screws

Diameter - Thread Pitch: #6-20

  • #6-20
  • Hexagon drive for use with a wrench or socket
  • Fully Threaded from tip to head
  • Integral washer at the top of the head
  • TEK Self drilling screws
  • Zinc plated steel hex washer head self drilling screws add a layer of corrosion resistance to the steel
  • Not suitable of extreme environment uses
  • Can be either a light shiny color or have a bright blue hue
  • REACH and RoHS Compliant
  • NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
#6-20 x 3/8"
SKU #8204-002-0018
#6-20 x 3/8"
SKU #8204-002-0018
1 $0.07 (0.07/ea)
100 $3.00 (0.03/ea)
1000 $20.00 (0.02/ea)
Subtotal: $0.00 /
#6-20 x 1/2"
SKU #8204-002-0020
#6-20 x 1/2"
SKU #8204-002-0020
1 $0.07 (0.07/ea)
100 $3.00 (0.03/ea)
1000 $20.00 (0.02/ea)
Subtotal: $0.00 /
#6-20 x 5/8"
SKU #8204-002-0022
#6-20 x 5/8"
SKU #8204-002-0022
1 $0.08 (0.08/ea)
100 $3.00 (0.03/ea)
1000 $20.00 (0.02/ea)
Subtotal: $0.00 /
#6-20 x 3/4"
SKU #8204-002-0024
#6-20 x 3/4"
SKU #8204-002-0024
1 $0.09 (0.09/ea)
100 $4.00 (0.04/ea)
1000 $30.00 (0.03/ea)
Subtotal: $0.00 /
#6-20 x 1"
SKU #8204-002-0026
#6-20 x 1"
SKU #8204-002-0026
1 $0.11 (0.11/ea)
100 $4.00 (0.04/ea)
1000 $30.00 (0.03/ea)
Subtotal: $0.00 /
#6-20 x 1-1/4"
SKU #8204-002-0012
#6-20 x 1-1/4"
SKU #8204-002-0012
1 $0.12 (0.12/ea)
100 $5.00 (0.05/ea)
1000 $40.00 (0.04/ea)
Subtotal: $0.00 /
#6-20 x 1-1/2"
SKU #8204-002-0014
#6-20 x 1-1/2"
SKU #8204-002-0014
1 $0.14 (0.14/ea)
100 $5.00 (0.05/ea)
1000 $40.00 (0.04/ea)
Subtotal: $0.00 /
#6-20 x 2"
SKU #8204-002-0016
#6-20 x 2"
SKU #8204-002-0016
1 $0.14 (0.14/ea)
100 $7.00 (0.07/ea)
1000 $60.00 (0.06/ea)
Subtotal: $0.00 /

Frequently Used With

Flat Washers Zinc SAE - #6 (ID 0.156 x OD 0.375 x THK 0.064)
Flat Washers Zinc SAE - #6 (ID 0.156 x OD 0.375 x THK 0.064) 1102-006-0042
Flat Washers Zinc SAE - #6 (ID 0.156 x OD 0.375 x THK 0.064)
1 $0.05 (0.05/ea)
100 $2.00 (0.02/ea)
1000 $10.00 (0.01/ea)
Subtotal: $0.00
Magnetic Nutsetters - 1/4" Drive x 1-3/4" Length
Magnetic Nutsetters - 1/4" Drive x 1-3/4" Length 1060-008-0002
Magnetic Nutsetters - 1/4
1 $4.36 (4.36/ea)
10 $36.80 (3.68/ea)
100 $292.00 (2.92/ea)
Subtotal: $0.00
53 Piece Industrial Insert Bit and Hand Driver Set - Standard and Security - VSH53A
53 Piece Industrial Insert Bit and Hand Driver Set - Standard and Security - VSH53A 1050-302
53 Piece Industrial Insert Bit and Hand Driver Set - Standard and Security - VSH53A
53 Piece Industrial Insert Bit and Hand Driver Set Standard and Security Insert Bit Set - VSH53A
Our Price: $80.49
Subtotal: $0.00
Product Specifications
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#6
Drive Style
External Hex
Finish
Zinc Plated
Head Style
Hex Washer
Material
Steel
Point Type
TEK 2
Product Type
Sheet Metal Screws
System of Measurement (Unit)
Inch
Thread Diameter Major
(#6) 0.139"
Thread Diameter Minor
(#6) 0.104"
Thread Direction
Right Hand
Thread Pitch (Count)
20 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Wrench Size
1/4"
