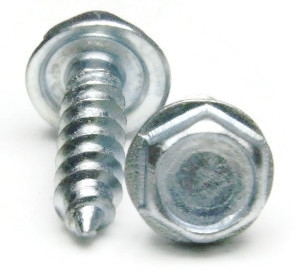

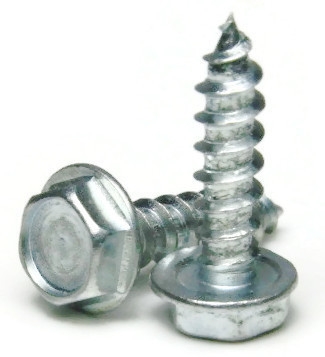

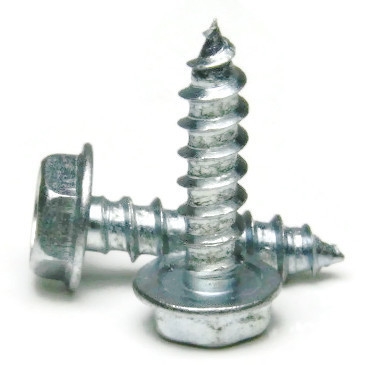

Sheet Metal Screws, Hex Washer Head, Zinc Plated Steel, #10 x 3/4"

Diameter - Thread Pitch: #10-12
  • #10-12
  • Fully Threaded
  • CR+3 Zinc Plated Steel
  • Clean silver color also used for finishing and decorative applications
  • Zinc plated steel hex washer head sheet metal screws are durable and corrosion resistant
  • REACH and RoHS Compliant
  • NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
Type A Sheet Metal Screw Thread Specifications
Product number: 8202-006-0002
Print this page
Click on a size/sku in the table to view product-specific details and specifications.

Specifications

  • Across Flats (Width): 5/16" (Max 0.312 - Min 0.309)
  • Color: Silver
  • Condition: New
  • Corrosion Resistant: Yes
  • Diameter: #10
  • Drive Style: External Hex
  • Elongation: 30%
  • Head Type: Hex Washer Head
  • Thread Direction: Right Hand
  • Thread Type: Coarse
  • Finish: Zinc Plated
  • Head Diameter: 5/16", Max 0.312 - Min 0.305
  • Head Size: 5/16"
  • Head Style: Hex Washer
  • Length: 3/4"
  • Material: Steel
  • Part Number: 720572197020
  • Point Type: A
  • Product Type: Sheet Metal Screws
  • Size System: US
  • Size Type: Regular
  • System of Measurement: Inch
  • Thread Diameter Major: (#10) 0.194" - 0.188"
  • Thread Diameter Minor: (#10) 0.133" - 0.126"
  • Thread Direction: Right Hand
  • Thread Pitch: 12 Per Inch
  • Thread Size: #10-12
  • Thread Standard: UNC
  • Thread Type: Coarse
  • Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
  • Washer OD: Max 0.414 - Min 0.384
  • Weight: 1 lb
  • Wrench Size: 5/16"
Select Size/SKU & Quantity
1 Available Sizes
SIZE/SKU Review Volume Pricing* Enter Any Qty
#10-12 x 3/4"
8202-006-0002
1
$0.07 ($0.07/ea)
100
$6.00 ($0.06/ea)
1000
$50.00 ($0.05/ea)
$0.00
