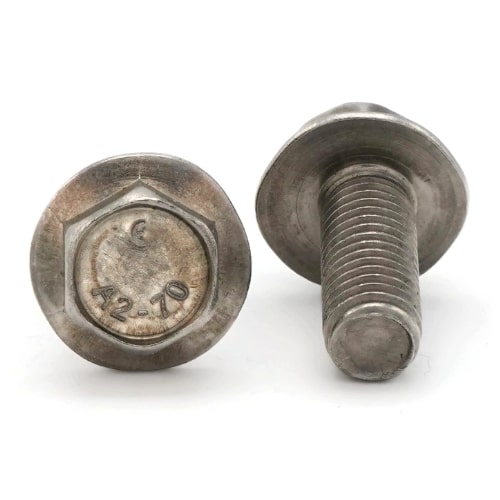

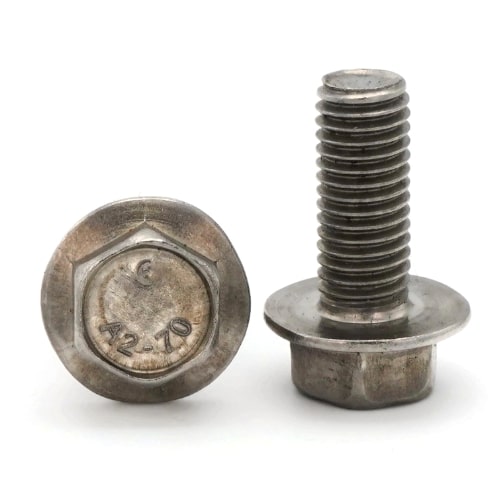

M8 Hex Flange Bolt A2 Stainless Steel Metric

M8 x 1.25 Stainless Steel Metric Head Flange Bolts

Diameter - Thread Pitch: M8 x 1.25


  • M8 x 1.25
  • Hex bolt with flange designed to be driven by a wrench or socket
  • Flange head to prevent pull-through and distribute pressure across a wider surface area
  • A2 Stainless steel is corrosion and rust resistant
  • A2 Stainless steel metric hex flange bolts are used in exterior
  • Built in integral washer to distribute pressure over a greater surface area and prevent pull-through

Diameter x Thread Pitch x Length from Under Head

Select Products Below
Product Specifications
Across Flats (Width)
13mm, Max 12.98mm - Min 12.79mm
Body Diameter
M8 (8mm) Max 8.00mm - Min 7.78mm
Corrosion Resistant
yes
Drive Style
Wrench/Socket
Head Height Basic
Max 7.80mm - Min 7.62mm
Head Style
Hex with Flange
Material
A2 Stainless Steel
Outside Diameter (OD)
Max 16.82mm - Min 16.18mm
Product Type
Metric Hex Head Flange Bolts
Thread Pitch (Count)
1.25
Thread Standard
UNC
Width Across Corners
Max 14.78mm - Min 14.66mm
Wrench Size
13mm
Select Products Below
Qty
Size
Select Package Quantity
SubTotal
M8 x 1.25 x 16M
SKU #1021-210000-0001
M8 x 1.25 x 16M
SKU #1021-210000-0001
1
$0.67 (0.67/ea)
25
$15.25 (0.61/ea)
100
$55.00 (0.55/ea)
1000
$490.00 (0.49/ea)

M8 x 1.25 x 20M
SKU #1021-210000-0007
M8 x 1.25 x 20M
SKU #1021-210000-0007
1
$0.71 (0.71/ea)
25
$16.50 (0.66/ea)
100
$59.00 (0.59/ea)
1000
$540.00 (0.54/ea)

M8 x 1.25 x 25M
SKU #1021-210000-0013
M8 x 1.25 x 25M
SKU #1021-210000-0013
1
$0.82 (0.82/ea)
25
$18.75 (0.75/ea)
100
$68.00 (0.68/ea)
1000
$610.00 (0.61/ea)

M8 x 1.25 x 30M
SKU #1021-210000-0019
M8 x 1.25 x 30M
SKU #1021-210000-0019
1
$0.96 (0.96/ea)
25
$22.00 (0.88/ea)
100
$81.00 (0.81/ea)
1000
$730.00 (0.73/ea)

M8 x 1.25 x 35M
SKU #1021-210000-0025
M8 x 1.25 x 35M
SKU #1021-210000-0025
1
$2.51 (2.51/ea)
25
$57.50 (2.30/ea)
100
$219.00 (2.19/ea)
1000
$1,870.00 (1.87/ea)

M8 x 1.25 x 40M
SKU #1021-210000-0031
M8 x 1.25 x 40M
SKU #1021-210000-0031
1
$2.62 (2.62/ea)
25
$60.00 (2.40/ea)
100
$219.00 (2.19/ea)
1000
$1,970.00 (1.97/ea)

M8 x 1.25 x 50M
SKU #1021-210000-0037
M8 x 1.25 x 50M
SKU #1021-210000-0037
1
$2.98 (2.98/ea)
25
$68.25 (2.73/ea)
100
$248.00 (2.48/ea)
1000
$2,230.00 (2.23/ea)
