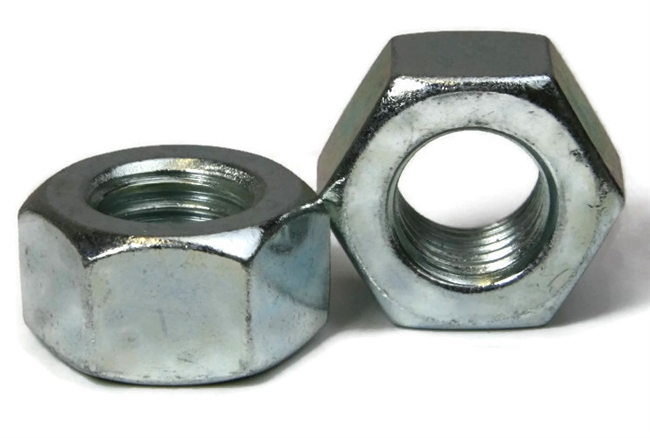

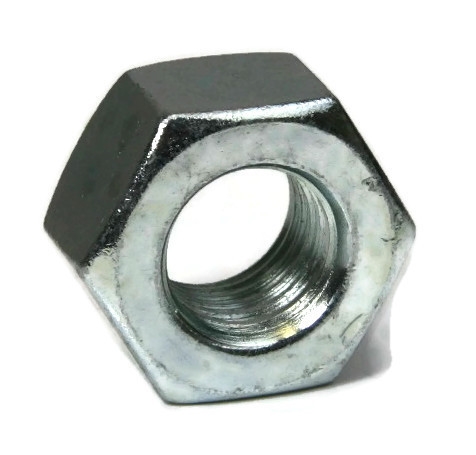

Zinc Plated Heavy Hex Nuts
Extra Thick Hex Finish Nuts
- Comparable to hex nuts but thicker
- UNC Coarse Thread Sizes
- Often used when a heavier, stronger and thicker nut is required
- Provides a thicker finished look
- Case Hardened CR+3 Zinc plated steel
- REACH and RoHS Compliant
| Nut Sizes | Flats | Height |
| 1/4" | 1/2" | 15/64" |
| 5/16" | 9/16" | 19/64" |
| 3/8" | 11/16" | 23/64" |
| 7/16" | 3/4" | 27/64" |
| 5/8" | 1-1/16" | 39/64" |
| 3/4" | 1-1/4" | 47/64" |
| 7/8" | 1-7/16" | 55/64" |
| 1" | 1-5/8" | 63/64" |
| 1-1/8" |
1-13/16"
|
1-7/64"
|
| 1-1/4" | 2" | 1-7/32" |
| 1-1/2" | 2-3/8" | 1-15/32" |
| 1-5/8" | 2-9/16" | 1-19/32" |
| 1-3/4" | 2-3/4" | 1-23/32" |
| 2" | 3-1/8" | 1-31/32" |
Product Specifications
Color
Silver
Finish
Case Hardened (CR+3) Zinc Plated
Material
Zinc Plated Steel
Product Type
Heavy Hex Nut
Standards Met
REACH, RoHS
Thread Direction
Right Hand
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
