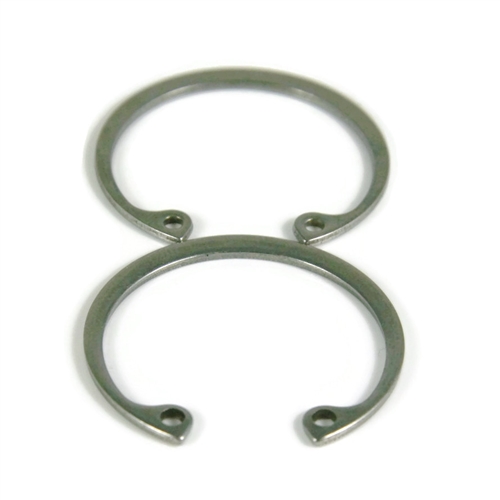

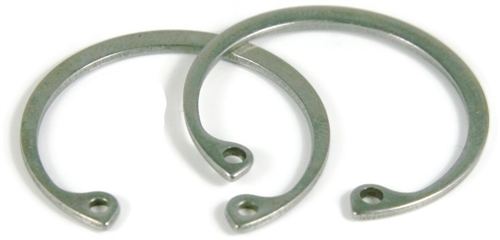

HO-77SS 0.777" Internal Retaining Ring - Stainless Steel

HO-77SS Stainless Steel Internal Snap Rings

Fits Shaft Diameter: 0.777"


  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
  • Made of stainless steel
  • Installed in a bore or housing
  • Axially installed
  • Corrosion resistant
0.777" HO-77SS Internal retaining rings are designed to be installed into a groove on a shaft.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA Made Retaining Rings
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
HO-77SS 0.777" Internal Retaining Ring - Stainless Steel
SKU #816024-0002
HO-77SS 0.777" Internal Retaining Ring - Stainless Steel
SKU #816024-0002
1
$1.46 (1.46/ea)
25
$34.25 (1.37/ea)
100
$127.00 (1.27/ea)
1000
$1,150.00 (1.15/ea)
Subtotal: $0.00 /

Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.024"
Diameter
0.825"
Finish
Passivated
Fits Shaft Diameter
(0.777", 19.7mm)
Free Diameter
0.859"
Grade
15-7
Manufacturer Part Number
HO-77SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.042"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.046"
