HO-31SS 5/16" Internal Retaining Ring - Stainless Steel

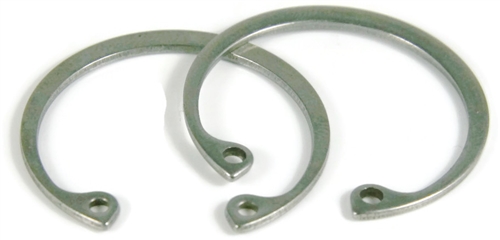

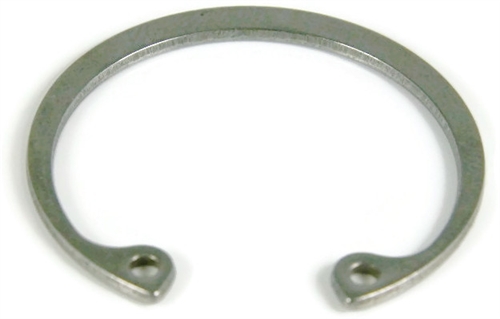

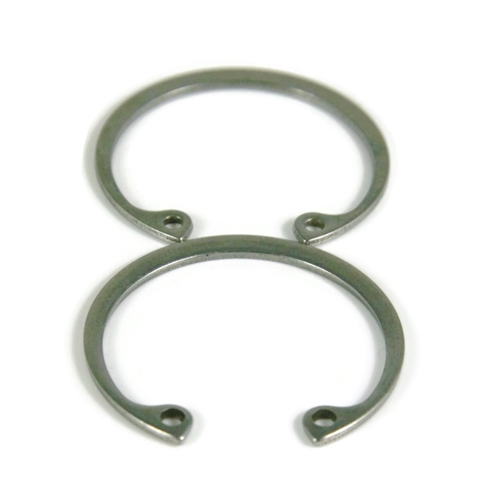

HO-31SS Internal Retaining Ring - Stainless Steel



Alternative Views:


Stainless Steel Internal Retaining / Housing Rings - HO-31SS

Fits Shaft Diameter: 5/16"

Axially Installed Internal Rotor Clips, or Housing Rings, are designed to be installed into a groove on a shaft. Once installed in a bore or housing, a portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly. HO-31SS Internal Retaining Rings are made of stainless steel, and are axially installed.

Product Specifications:
HO Style Internal Retaining Rings / Housing Rings: HO-31SS
Material: Stainless Steel
Fits Shaft Diameter: (0.312, 5/16", 7.9mm)
Thickness: 0.015"

Groove Size:
Diameter: 0.330
Width: 0.020
Depth: 0.009
Free Diameter: 0.346

USA Made Retaining Rings

USA MADE FASTENER



Item# Item Name Our Price Qty Add
816004-0002 HO-31SS 5/16" Internal Retaining Ring - Stainless Steel - Qty-1
$0.36
816004-0004 HO-31SS 5/16" Internal Retaining Ring - Stainless Steel - Qty-25
$8.31
816004-0006 HO-31SS 5/16" Internal Retaining Ring - Stainless Steel - Qty-100
$30.24
816004-0008 HO-31SS 5/16" Internal Retaining Ring - Stainless Steel - Qty-250
$71.81
816004-0010 HO-31SS 5/16" Internal Retaining Ring - Stainless Steel - Qty-1000
$272.13
