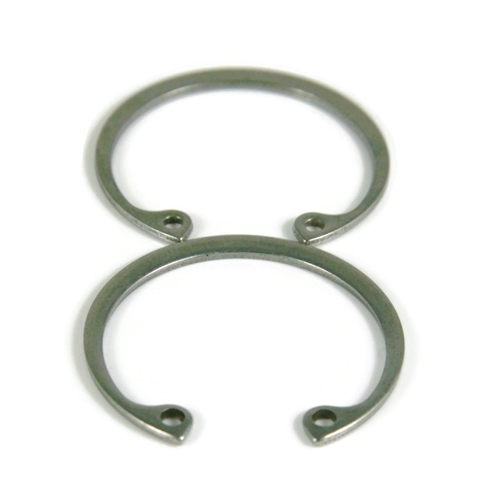

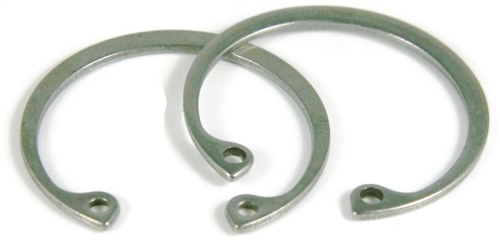

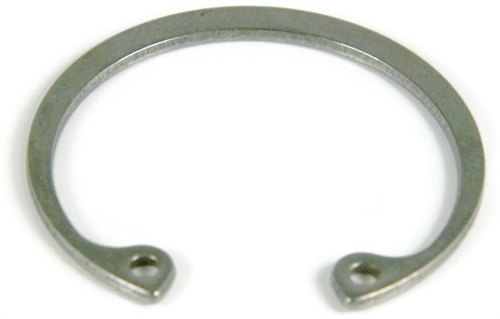

HO-181SS 46mm Internal Retaining Ring - Stainless Steel

46mm HO-181SS Stainless Steel Internal Snap Rings

Fits Shaft Diameter: 46mm

  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
  • Made of stainless steel
  • Installed in a bore or housing
  • Axially installed
  • Corrosion resistant
46mm HO-181SS Internal retaining rings are designed to be installed into a groove on a shaft.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA Made Retaining Rings
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
HO-181SS 46mm Internal Retaining Ring - Stainless Steel
SKU #816068-0002
HO-181SS 46mm Internal Retaining Ring - Stainless Steel
SKU #816068-0002
1
 $3.71 (3.71/ea)
25
 $86.50 (3.46/ea)
100
 $320.00 (3.2/ea)
1000
 $2,930.00 (2.93/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

RP-500 Internal Standard Pliers - 46mm through 3" Ring Size
RP-500 Internal Standard Pliers - 46mm through 3" Ring Size 1050-036
RP-500 Internal Standard Pliers - 46mm through 3
RP-500 Internal Standard Snap Ring Pliers
Installation & Removal Tool for HO Style Internal Retaining Rings

Our Price: $84.50
Subtotal: $0.00 /
Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.055"
Diameter
1.922"
Finish
Passivated
Fits Shaft Diameter
(1.812", 1-13/16", 46.0mm)
Free Diameter
2.012"
Grade
15-7
Manufacturer Part Number
HO-181SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.062"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.068"
