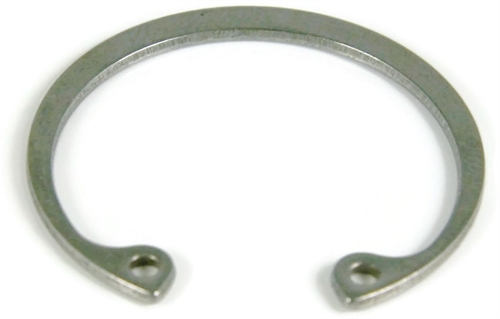

HO-175SS 1-3/4" Internal Retaining Ring, Stainless Steel

Fits Shaft Diameter: 1-3/4"

Commonly referred to as a retaining ring, snap ring, or c-clip
A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
Made of stainless steel
Installed in a bore or housing
Axially installed
Corrosion resistant

1-3/4" HO-175SS Internal retaining rings are designed to be installed into a groove on a shaft.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

Product number: 816066-0002

Print this page

Brand: Rotor Clip
Additional Sizing Info: Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color: Silver
Condition: New
Corrosion Resistant: Yes
Depth: 0.054"
Diameter: 1.858"
Finish: Passivated
Fits Shaft Diameter: (1.750", 1-3/4", 44.4mm)
Free Diameter: 1.942"
Grade: 15-7
Manufacturer Part Number: HO-175SS
Material: Stainless Steel
Part Number: 661291529559
Product Type: Retaining Rings
Size System: US
Size Type: Regular
System of Measurement: Inch/Millimeter
Thickness: 0.062"
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made: Yes
Weight: 1 lb
Width: 0.068"
