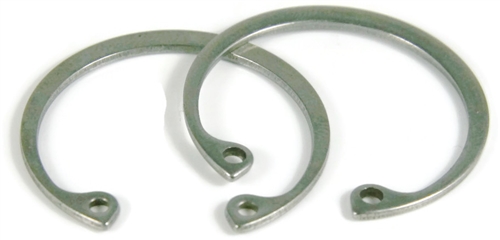

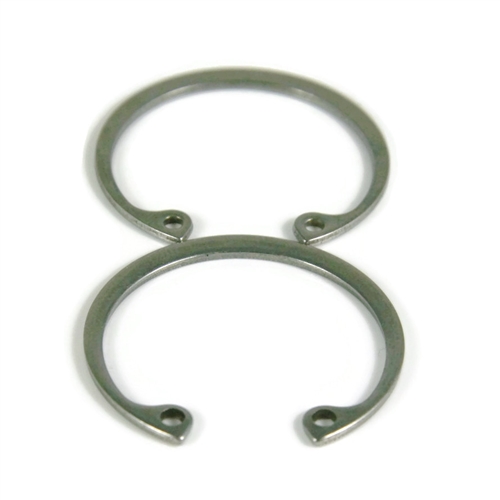

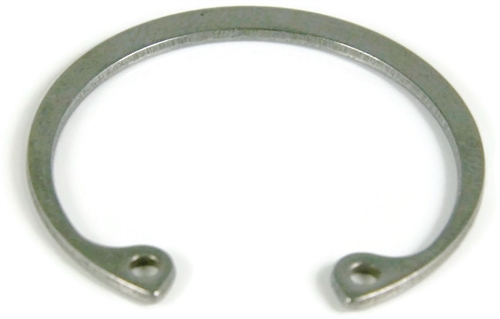

HO-156SS 1-9/16" Internal Retaining Ring - Stainless Steel

HO-156SS Stainless Steel Internal Snap Rings

Fits Shaft Diameter: 1-9/16"


  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
  • Made of stainless steel
  • Installed in a bore or housing
  • Axially installed
  • Corrosion resistant
1-9/16" HO-156SS Internal retaining rings are designed to be installed into a groove on a shaft.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA Made Retaining Rings
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
HO-156SS 1-9/16" Internal Retaining Ring - Stainless Steel
SKU #816058-0002
HO-156SS 1-9/16" Internal Retaining Ring - Stainless Steel
SKU #816058-0002
1
$3.56 (3.56/ea)
100
$277.00 (2.77/ea)
1000
$2,670.00 (2.67/ea)
Subtotal: $0.00 /




Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.048"
Diameter
1.658"
Finish
Passivated
Fits Shaft Diameter
(1.562", 1-9/16", 39.7mm)
Free Diameter
1.734"
Grade
15-7
Manufacturer Part Number
HO-156SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.062"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.068"
