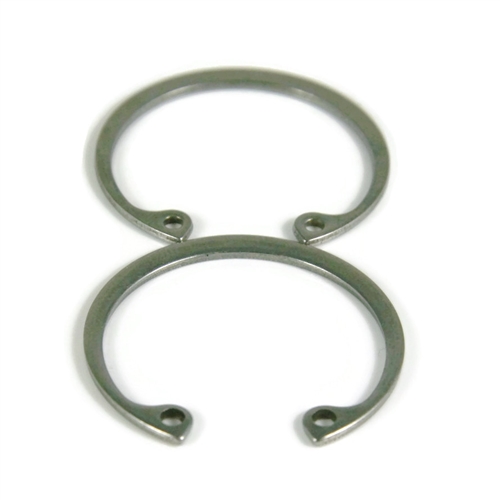

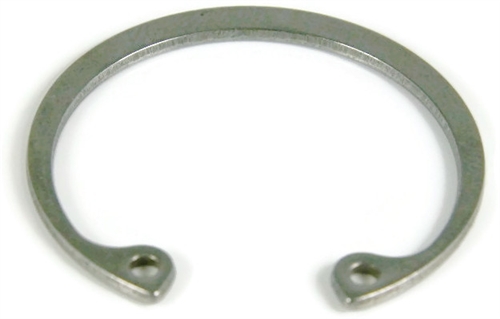

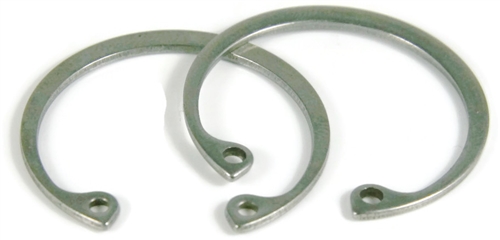

HO-143SS 1-7/16" Internal Retaining Ring - Stainless Steel

HO-143SS Stainless Steel Internal Snap Rings

Fits Shaft Diameter: 1-7/16"

  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
  • Made of stainless steel
  • Installed in a bore or housing
  • Axially installed
  • Corrosion resistant
1-7/16" HO-143SS Internal retaining rings are designed to be installed into a groove on a shaft.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA Made Retaining Rings
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
HO-143SS 1-7/16" Internal Retaining Ring - Stainless Steel
SKU #816052-0002
HO-143SS 1-7/16" Internal Retaining Ring - Stainless Steel
SKU #816052-0002
1
 $2.73 (2.73/ea)
25
 $63.50 (2.54/ea)
100
 $235.00 (2.35/ea)
1000
 $2,150.00 (2.15/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

RP-300 Internal Standard Pliers - 1-1/16" through 1-3/4" Ring Size
RP-300 Internal Standard Pliers - 1-1/16" through 1-3/4" Ring Size 1050-034
RP-300 Internal Standard Pliers - 1-1/16
RP-300 Internal Standard Snap Ring Pliers
Installation & Removal Tool for HO Style Internal Retaining Rings

Our Price: $35.50
Subtotal: $0.00 /
Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.045"
Diameter
1.528"
Finish
Passivated
Fits Shaft Diameter
(1.438", 1-7/16", 36.5mm)
Free Diameter
1.596"
Grade
15-7
Manufacturer Part Number
HO-143SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.050"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.056"
