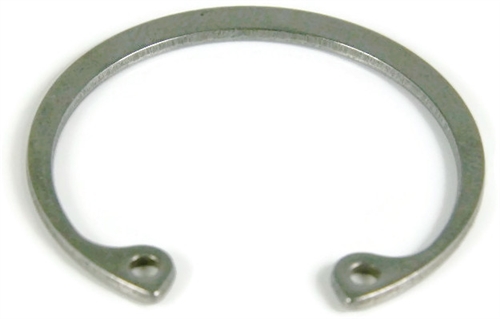

HO-131SS 1-5/16" Internal Retaining Ring - Stainless Steel

HO-131SS Stainless Steel Internal Snap Rings

Fits Shaft Diameter: 1-5/16"

  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
  • Made of stainless steel
  • Installed in a bore or housing
  • Axially installed
  • Corrosion resistant
1-5/16" HO-131SS Internal retaining rings are designed to be installed into a groove on a shaft.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA Made Retaining Rings
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
HO-131SS 1-5/16" Internal Retaining Ring - Stainless Steel
SKU #816048-0002
HO-131SS 1-5/16" Internal Retaining Ring - Stainless Steel
SKU #816048-0002
1
 $2.53 (2.53/ea)
25
 $59.00 (2.36/ea)
100
 $217.00 (2.17/ea)
1000
 $1,990.00 (1.99/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

RP-300 Internal Standard Pliers - 1-1/16" through 1-3/4" Ring Size
RP-300 Internal Standard Pliers - 1-1/16" through 1-3/4" Ring Size 1050-034
RP-300 Internal Standard Pliers - 1-1/16
RP-300 Internal Standard Snap Ring Pliers
Installation & Removal Tool for HO Style Internal Retaining Rings

Our Price: $35.50
Subtotal: $0.00 /
Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.042"
Diameter
1.396"
Finish
Passivated
Fits Shaft Diameter
(1.312", 1-5/16", 33.3mm)
Free Diameter
1.456"
Grade
15-7
Manufacturer Part Number
HO-131SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.050"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.056"
