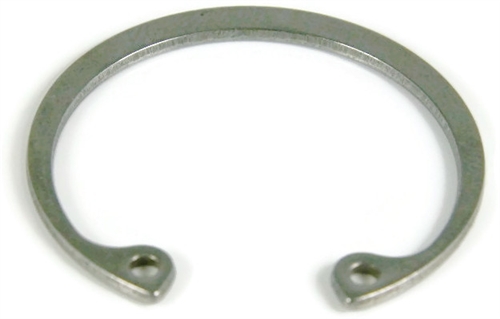

HO-112SS 1-1/8" Internal Retaining Ring - Stainless Steel

HO-112SS Stainless Steel Internal Snap Rings

Fits Shaft Diameter: 1-1/8"


  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
  • Made of stainless steel
  • Installed in a bore or housing
  • Axially installed
  • Corrosion resistant
1-1/8" HO-112SS Internal retaining rings are designed to be installed into a groove on a shaft.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA Made Retaining Rings
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
HO-112SS 1-1/8" Internal Retaining Ring - Stainless Steel
SKU #816042-0002
HO-112SS 1-1/8" Internal Retaining Ring - Stainless Steel
SKU #816042-0002
1
$2.12 (2.12/ea)
25
$49.50 (1.98/ea)
100
$183.00 (1.83/ea)
1000
$1,670.00 (1.67/ea)
Subtotal: $0.00 /




Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.050"
Diameter
1.197"
Finish
Passivated
Fits Shaft Diameter
(1.125", 1-1/8", 28.6mm)
Free Diameter
1.249"
Grade
15-7
Manufacturer Part Number
HO-112SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.050"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.056"
