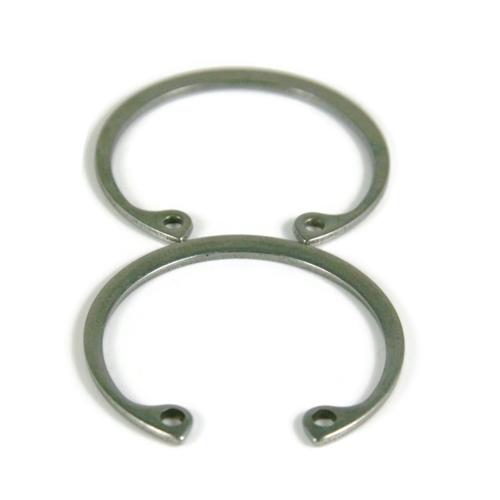

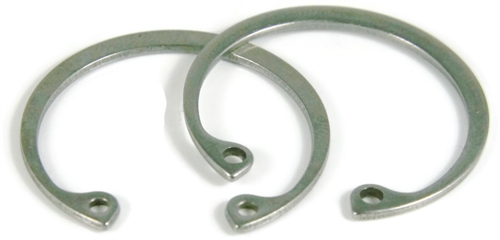

HO-102SS 26mm Internal Retaining Ring, Stainless Steel
Fits Shaft Diameter: 26mm
| Quantity | Unit price |
|---|---|
| To 99 |
$1.72*
|
| To 999 |
$1.35*
|
| From 1000 |
$1.29*
|
- Brand: Rotor Clip
- Additional Sizing Info: Diameter, Width, Depth, and Free Diameter refer to Groove Size
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Depth: 0.034"
- Diameter: 1.091"
- Finish: Passivated
- Fits Shaft Diameter: (1.023", 26.0mm)
- Free Diameter: 1.136"
- Grade: 15-7
- Manufacturer Part Number: HO-102SS
- Material: Stainless Steel
- Part Number: 661291529412
- Product Type: Retaining Rings
- Size System: US
- Size Type: Regular
- System of Measurement: Inch/Millimeter
- Thickness: 0.042"
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- Width: 0.046"
- Commonly referred to as a retaining ring, snap ring, or c-clip
- A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
- Made of stainless steel
- Installed in a bore or housing
- Axially installed
- Corrosion resistant
Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic
Product number:
816038-0002
