Stainless Steel Metric Flat Washers
Metric Sized Round Washers in A2 Stainless Steel
A flat washer is a round outer diameter thin plate with a center hole (inner diameter) punched to the size of the bolt or screw size.
- Used to distribute loads of threaded bolts, screws and nuts evenly as the fastener is tightened
- durable and long lasting assembly
- corrosion resistant

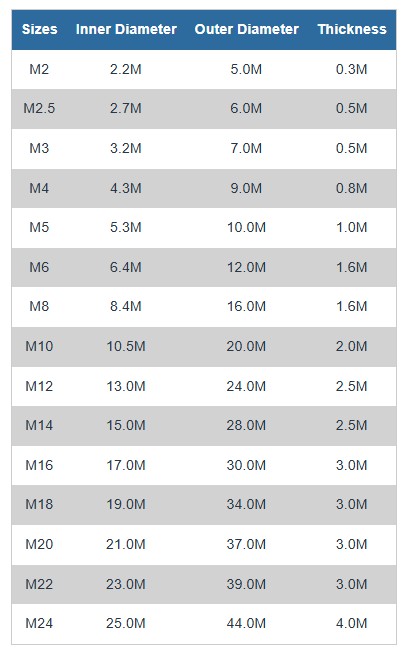

| Sizes | Inner Diameter | Outer Diameter | Thickness |
| M2 | 2.2M | 5.0M | 0.3M |
| M2.5 | 2.7M | 6.0M | 0.5M |
| M3 | 3.2M | 7.0M | 0.5M |
| M4 | 4.3M | 9.0M | 0.8M |
| M5 | 5.3M | 10.0M | 1.0M |
| M6 | 6.4M | 12.0M | 1.6M |
| M8 | 8.4M | 16.0M | 1.6M |
| M10 | 10.5M | 20.0M | 2.0M |
| M12 | 13.0M | 24.0M | 2.5M |
| M14 | 15.0M | 28.0M | 2.5M |
| M16 | 17.0M | 30.0M | 3.0M |
| M18 | 19.0M | 34.0M | 3.0M |
| M20 | 21.0M | 37.0M | 3.0M |
| M22 | 23.0M | 39.0M | 3.0M |
| M24 | 25.0M | 44.0M | 4.0M |
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Corrosion Resistant
Yes
Grade
A2
Material
Stainless Steel
System of Measurement (Unit)
Millimeter
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
