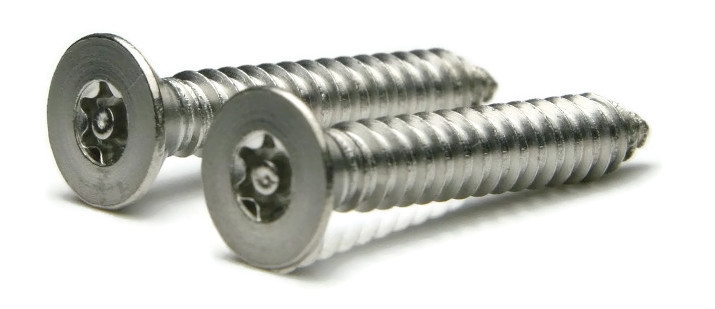

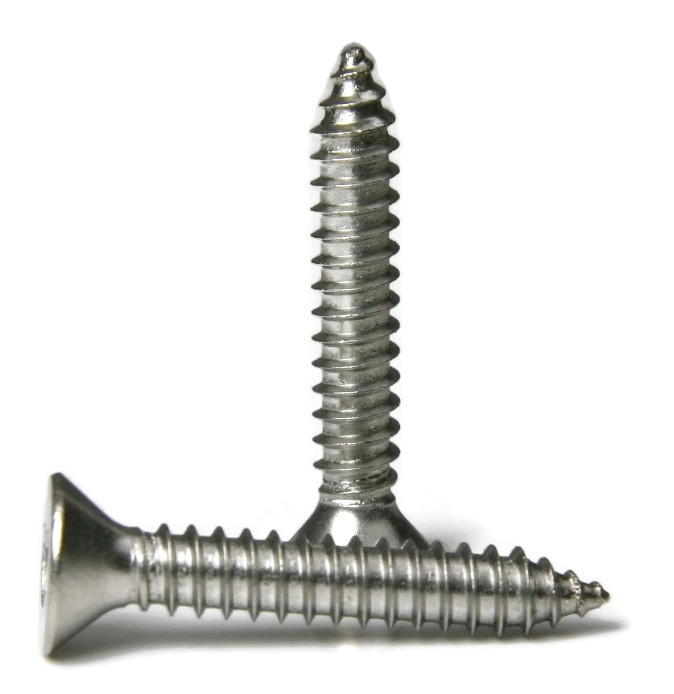

#10-16 Star Drive with Pin Security Flat Head Sheet Metal Screws
Diameter - #10 | Security Star Drive Size - T-20/T-25
- #10-16
- Tamper Proof Star Drive Size - T-20/T-25
- Used for metal to metal or metal to plastic/wood/composite applications
- Tamper resistant drive style
- 18-8 Stainless steel star drive flat head sheet metal screws are corrosion resistant
- NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Additional Sizing Info
Dive Size Varies with Length
Color
Silver
Corrosion Resistant
Yes
Diameter
#10
Drive Style
Star (with Pin)
Grade
18-8
Head Style
Flat
Material
Stainless Steel
Product Type
Tamper Proof Sheet Metal Screws
System of Measurement (Unit)
Inch
Thread Diameter Major
(#10) 0.194 - 0.188
Thread Diameter Minor
(#10) 0.133 - 0.126
Thread Direction
Right Hand
Thread Pitch (Count)
12 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Torx TP Drive
T-20, T-25
