Stainless Steel Fender Washers
304 Stainless Steel Large OD Flat Washers
- Prevent pull-through
- Allow for distribution of weight over greater area than with normal washers
- Can be used where rust has made a hole larger
- Used on materials that are softer such as sheet metal
- 304 Stainless Steel fender washers are durable, corrosion resistant and long lasting
- Actual measurements may vary slightly +/- depending on production run

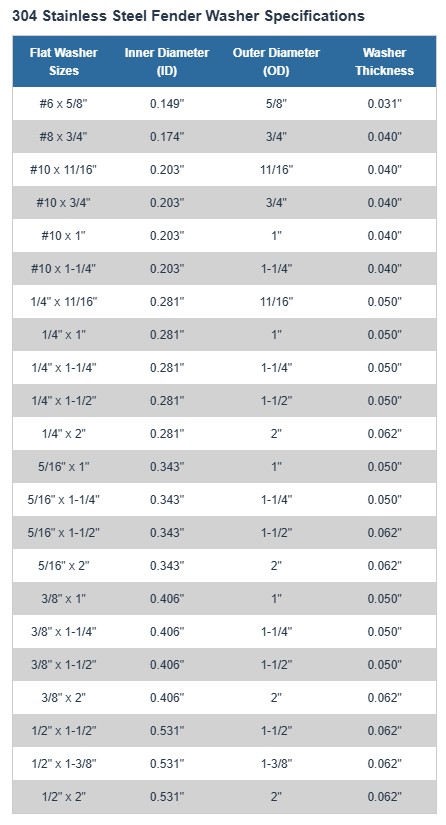

304 Stainless Steel Fender Washer Specifications
| Flat Washer Sizes | Inner Diameter (ID) | Outer Diameter (OD) | Washer Thickness |
| #6 x 5/8" | 0.149" | 5/8" | 0.031" |
| #8 x 3/4" | 0.174" | 3/4" | 0.040" |
| #10 x 11/16" | 0.203" | 11/16" | 0.040" |
| #10 x 3/4" | 0.203" | 3/4" | 0.040" |
| #10 x 1" | 0.203" | 1" | 0.040" |
| #10 x 1-1/4" | 0.203" | 1-1/4" | 0.040" |
| 1/4" x 11/16" | 0.281" | 11/16" | 0.050" |
| 1/4" x 1" | 0.281" | 1" | 0.050" |
| 1/4" x 1-1/4" | 0.281" | 1-1/4" | 0.050" |
| 1/4" x 1-1/2" | 0.281" | 1-1/2" | 0.050" |
| 1/4" x 2" | 0.281" | 2" | 0.062" |
| 5/16" x 1" | 0.343" | 1" | 0.050" |
| 5/16" x 1-1/4" | 0.343" | 1-1/4" | 0.050" |
| 5/16" x 1-1/2" | 0.343" | 1-1/2" | 0.062" |
| 5/16" x 2" | 0.343" | 2" | 0.062" |
| 3/8" x 1" | 0.406" | 1" | 0.050" |
| 3/8" x 1-1/4" | 0.406" | 1-1/4" | 0.050" |
| 3/8" x 1-1/2" | 0.406" | 1-1/2" | 0.062" |
| 3/8" x 2" | 0.406" | 2" | 0.062" |
| 1/2" x 1-1/2" | 0.531" | 1-1/2" | 0.062" |
| 1/2" x 1-3/8" | 0.531" | 1-3/8" | 0.062" |
| 1/2" x 2" | 0.531" | 2" | 0.062" |
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Material
304 Stainless Steel
Product Type
Fender Washer
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
