BSE31-SS 5/16" External Bowed 'E'

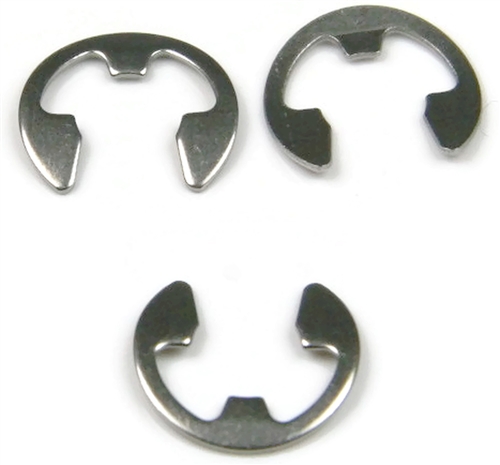

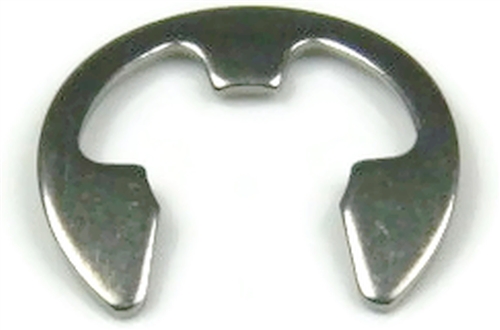

BSE31-SS Stainless Steel Bowed E Snap Rings

Fits Shaft Diameter: 5/16"

  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • The most popular and widely used style of radial snap ring
  • Called "E" rings because of the three prongs on the inside of the ring
  • These rings make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
  • Stainless steel and radially installed
5/16" External Bowed E models are thicker than standard 'E' Retaining Rings of the same nominal size, thus making them a sturdier product.
USA Made Retaining Rings

USA MADE FASTENER

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
BSE31-SS 5/16" External Bowed 'E' Stainless Steel
SKU #817000-0002
BSE31-SS 5/16" External Bowed 'E' Stainless Steel
SKU #817000-0002
1
 NA
25
 $15.50 (0.62/ea)
100
 $58.00 (0.58/ea)
1000
 $520.00 (0.52/ea)
Subtotal: $0.00 /
Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.47"
Diameter
0.25"
Finish
Passivated
Fits Shaft Diameter
(0.312", 5/16", 7.9mm)
Free Diameter
0.243"
Grade
15-7
Manufacturer Part Number
BSE31-SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch
Thickness
0.025"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
