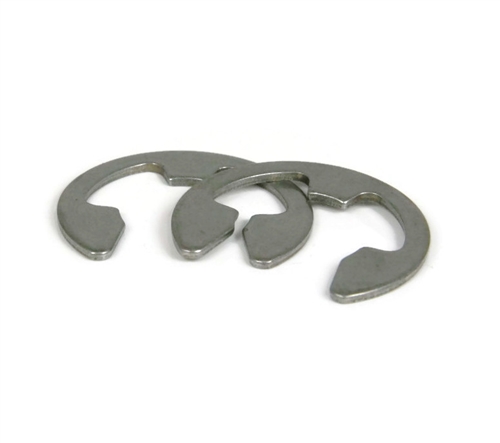

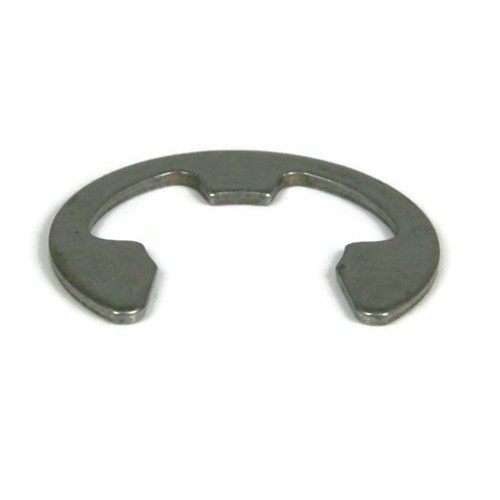

E-75SS 3/4" External Retaining Ring - Stainless Steel

E-75SS Stainless Steel E Snap Rings

Fits Shaft Diameter: 3/4"

  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • Called "E" rings because of the three prongs on the inside of the ring
  • Make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
3/4" External 'E' Radially Assembled Snap Rings, also called E Clips, E Rings or Retaining Clips are the most popular and widely used style of radial retaining ring.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA Made Retaining Rings

USA MADE FASTENER

This item qualifies for FREE SHIPPING on orders $99+
This item is eligible for SUBSCRIPTIONS (more info click here)
Select Products Below
See Product Specifications
Select Products Below
See Product Specifications
Size:
Qty
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Loading ...



Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.085"
Diameter
0.580"
Finish
Passivated
Fits Shaft Diameter
(0.750", 3/4", 19.0mm)
Free Diameter
0.574"
Grade
15-7
Manufacturer Part Number
E-75SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.050"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.056"
