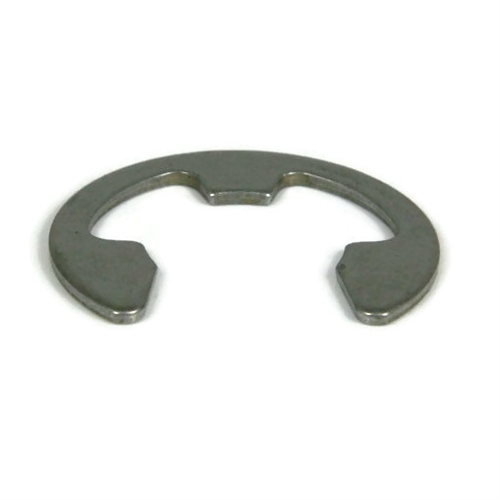

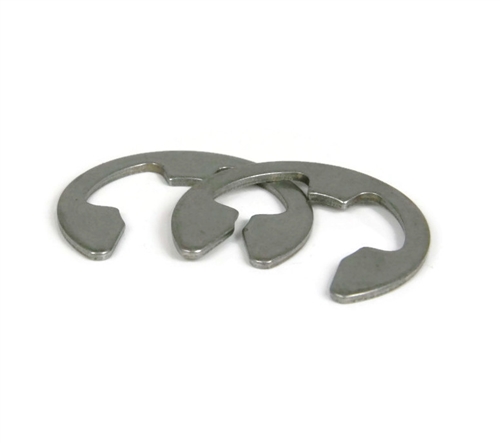

E-50SS 1/2" External Retaining Ring, Stainless Steel

Fits Shaft Diameter: 1/2"

Commonly referred to as a retaining ring, snap ring, or c-clip
Called "E" rings because of the three prongs on the inside of the ring
Make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention

1/2" External 'E' Radially Assembled Snap Rings, also called E Clips, E Rings or Retaining Clips are the most popular and widely used style of radial retaining ring.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA MADE FASTENER

Product number: 816088-0002

Print this page

Specifications

Brand: Rotor Clip
Additional Sizing Info: Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color: Silver
Condition: New
Corrosion Resistant: Yes
Depth: 0.052"
Diameter: 0.396"
Finish: Passivated
Fits Shaft Diameter: (0.500", 1/2", 12.7mm)
Free Diameter: 0.392"
Grade: 15-7
Manufacturer Part Number: E-50SS
Material: Stainless Steel
Part Number: 661291582141
Product Type: Retaining Rings
Size System: US
Size Type: Regular
System of Measurement: Inch/Millimeter
Thickness: 0.042"
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made: Yes
Weight: 1 lb
Width: 0.046"

Select Size/SKU & Quantity

1 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
0.396" 816088-0002	1 $0.52 ($0.52/ea) 100 $43.00 ($0.43/ea) 1000 $390.00 ($0.39/ea)	Quantity for E-50SS 1/2" External Retaining Ring, Stainless Steel $0.00
