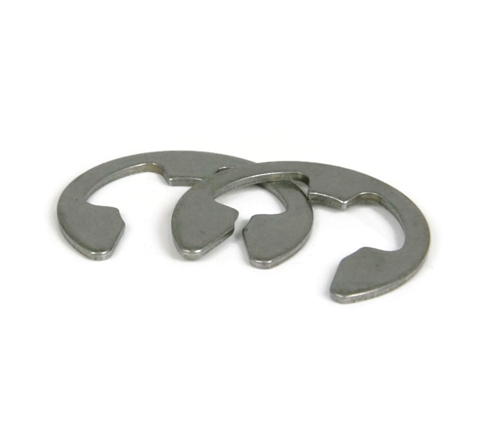

E-15SS 5/32" External Retaining Ring - Stainless Steel

E-15SS Stainless Steel E Snap Rings

Fits Shaft Diameter: 5/32"


  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • Called "E" rings because of the three prongs on the inside of the ring
  • Make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
5/32" External 'E' Radially Assembled Snap Rings, also called E Clips, E Rings or Retaining Clips are the most popular and widely used style of radial retaining ring.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA Made Retaining Rings

USA MADE FASTENER


Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
E-15SS 5/32" External Retaining Ring - Stainless Steel
SKU #816078-0002
E-15SS 5/32" External Retaining Ring - Stainless Steel
SKU #816078-0002
1
$0.16 (0.16/ea)
100
$13.00 (0.13/ea)
1000
$120.00 (0.12/ea)
Subtotal: $0.00 /




Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.020"
Diameter
0.116"
Finish
Passivated
Fits Shaft Diameter
(0.156", 5/32", 4.0mm)
Free Diameter
0.114"
Grade
15-7
Manufacturer Part Number
E-15SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.025"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.029"
