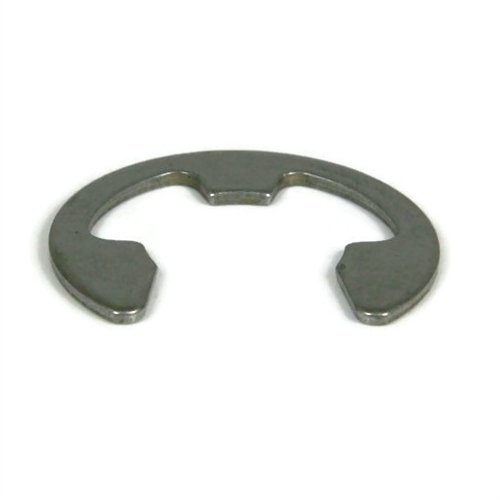

E-12SS 1/8" External Retaining Ring - Stainless Steel

1/8" E-12SS Stainless Steel External E Snap Rings

Fits Shaft Diameter: 1/8"

  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • Called "E" rings because of the three prongs on the inside of the ring
  • Make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
1/8" External 'E' Radially Assembled Snap Rings, also called E Clips, E Rings or Retaining Clips are the most popular and widely used style of radial retaining ring.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA Made Retaining Rings

USA MADE FASTENER

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
E-12SS 1/8" External Retaining Ring - Stainless Steel
SKU #816074-0002
E-12SS 1/8" External Retaining Ring - Stainless Steel
SKU #816074-0002
1
 NA
25
 $3.75 (0.15/ea)
100
 $10.00 (0.1/ea)
1000
 $90.00 (0.09/ea)
Subtotal: $0.00 /
Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.015"
Diameter
0.095"
Finish
Passivated
Fits Shaft Diameter
(0.125", 1/8", 3.2mm)
Free Diameter
0.094"
Grade
15-7
Manufacturer Part Number
E-12SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.015"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.020"
