316 Stainless Steel Adjustable Post Cap Anchors

316 Stainless Steel Adjustable Post Cap Anchors

H1-Stainless Steel Decking Adjustable Post Cap Anchors


Post Cap Anchors are used to secure a wood post to a support beam. Used with nails to secure the post cap connection between a wood column and a wood beam. Should only be installed with 316 Stainless Steel Nails to maintain product warranty.

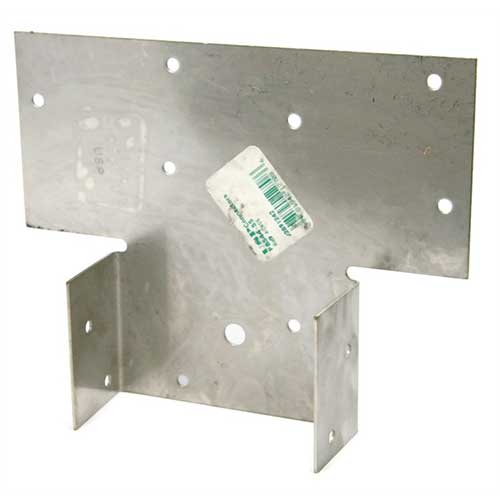

Each Adjustable Post Cap Anchor is a two-piece design, requiring two (2) for proper installation, for installing to the tops of posts and subsequently for installing beams between the flanges. Because the two (2) pieces that make up the assembly are separate, the post they can be installed upon may have a variable width which means the width of the beam can also be variable.

All Decking Post Cap Anchors in this selection are made of 316 Stainless Steel for superior corrosion resistance. 316 Stainless Steel is well suited for applications in severe, harsh, or marine environments. Proudly made in the USA.

NOTE: Two-Piece Post Caps are sold by piece, not by assembly; if you need 2 pieces to complete an assembly, order the 2 quantity or 2 of the single quantity. The single quantity is mainly for replacements or to complete a partial assembly.

Not recommended for fence posts or other unrestrained (not fixed or fastened at top) applications. These anchors are not designed to resist overturning loads.

Post / Column Size: 4 x 4 6 x 6
Manufacturer Part Number: PBS44-SS PBS66-SS
Simpson Part Number: AC4SS AC6SS

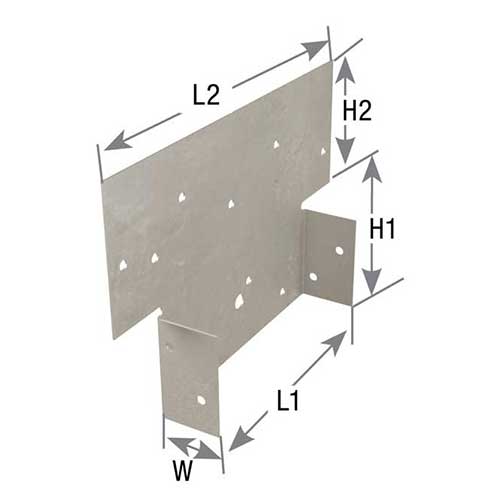

Dimensions (W): 1-7/16" 1-1/4"
Dimensions (H1): 2-5/16" 2-5/16"
Dimensions (H2): 2-13/16" 2-7/8"
Dimensions (L1): 3-9/16" 5-1/2"
Dimensions (L2): 6-1/2" 8"

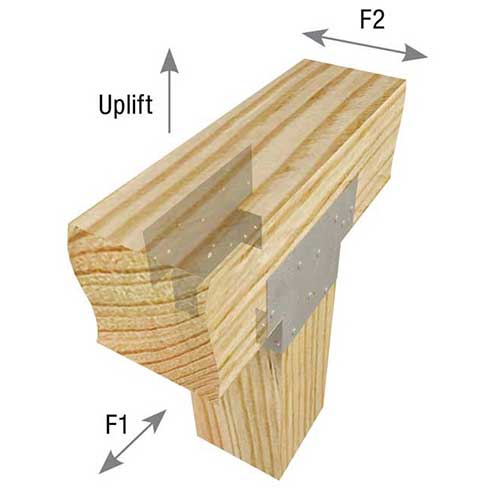

Uplift Load (Lbs.): 2630 2280
F1 Load (Lbs.): 1730 1850
F2 Load (Lbs.): 1195 1310
Steel Gauge: 18 18
Material: 316 Stainless Steel
Made in the USA
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Decking Adjustable Post Cap Anchors 316 SS - 4" x 4" (Single Piece)
SKU #6100-006-0002
Decking Adjustable Post Cap Anchors 316 SS - 4" x 4" (Single Piece)
SKU #6100-006-0002
1
$32.06 (32.06/ea)
2
$54.76 (27.38/ea)
10
$264.40 (26.44/ea)
Subtotal: $0.00 /
Decking Adjustable Post Cap Anchors 316 SS - 6" x 6" (Single Piece)
SKU #6100-006-0012
Decking Adjustable Post Cap Anchors 316 SS - 6" x 6" (Single Piece)
SKU #6100-006-0012
1
$37.48 (37.48/ea)
2
$63.88 (31.94/ea)
10
$308.40 (30.84/ea)
Subtotal: $0.00 /

Frequently Used With

1
NA
25
$9.50 (0.38/ea)
100
$31.00 (0.31/ea)
1000
$250.00 (0.25/ea)
Subtotal: $0.00 /

Product Specifications
Corrosion Resistant
Yes
Grade
316
Marine Grade
Yes
Material
Stainless Steel
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
