Post Cap Anchors are used to secure a wood post to a support beam. Used with nails to secure the post cap connection between a wood column and a wood beam. Should only be installed with 316 Stainless Steel Nails to maintain product warranty.

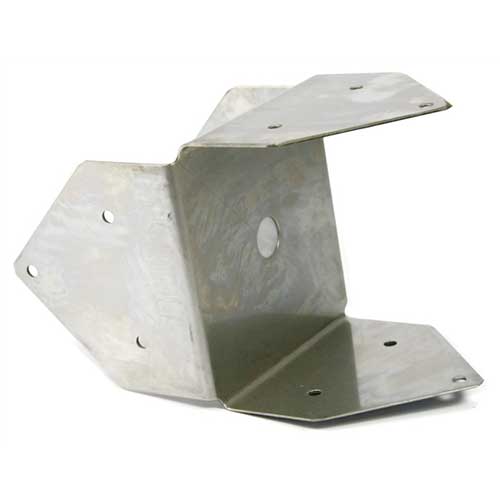

Each Post Cap Anchor is a one-piece design for installing to the tops of posts and subsequently for installing beams between the upper flanges.
All Decking Post Cap Anchors in this selection are made of 316 Stainless Steel for superior corrosion resistance. 316 Stainless Steel is well suited for applications in severe, harsh, or marine environments. Proudly made in the USA.
Not recommended for fence posts or other unrestrained (not fixed or fastened at top) applications. These anchors are not designed to resist overturning (moment) loads.
|
Post / Column Size:
|
4 x 4
|
|
Manufacturer Part Number:
|
C44
|
|
Simpson Part Number:
|
BC4SS
|
|

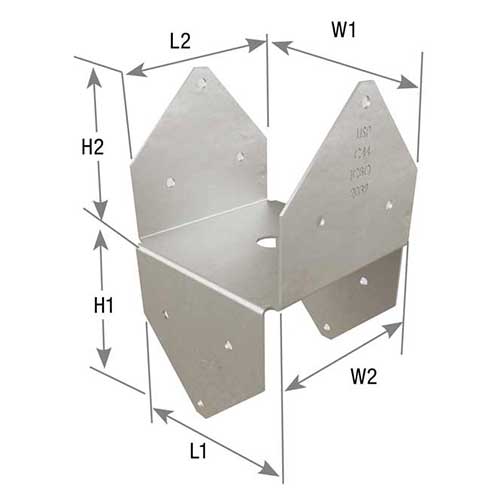

Dimensions (W1-W2):
|
3-9/16"
|
|
Dimensions (H1-H2):
|
2-7/8"
|
|
Dimensions (L1-L2):
|
3-1/4"
|
|

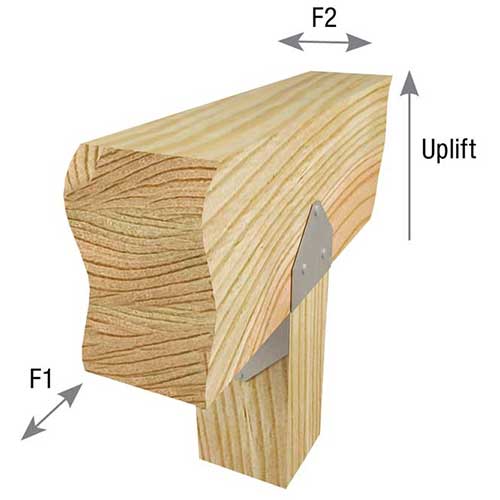

Uplift Load (Lbs.):
|
1000
|
|
F1 Load (Lbs.):
|
1225
|
|
F2 Load (Lbs.):
|
1225
|
|
Steel Gauge:
|
18
|
|
Material:
|
316 Stainless Steel
|
