#5-40 Helicoil Insert for Metal 18-8 Stainless Steel UNC

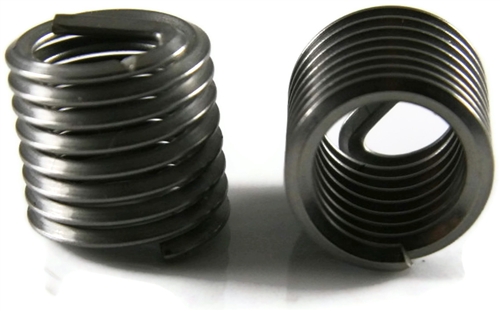

#5-40 Stainless Steel E-Z Coil Helical Threaded Inserts

Internal Thread Size: #5-40

#5-40 Stainless steel helical inserts are used to reinforce and repair tapped holes in soft metals.

  • Feature strong, corrosion resistant internal threads
  • Engineered to withstand temperatures up to 800 degrees Fahrenheit
  • The diameter of a helical insert will be larger than the tapped hole (before install)
  • Once properly installed the insert diameter reduces allowing the helical insert to thread the hole
After installation, E-Z Lok coil inserts will stay firmly in place as the radial pressure of the spring releases.

Stainless Steel Helical Threaded Inserts are ideal for applications requiring additional corrosion resistance, as well as automotive, food, beverage, and other clean-critical applications.

Sizes Listed As:
Internal Thread Size x Insert Length
D = Diameter, (ex #4-40 x 2D is 2 times as long as the Insert's Diameter)

EZ-LOK
Part # 		Internal
Thread 		Length Drill Size EZ-LOK
Drive Tool
#20310 #5-40
 1D (0.125) #29 M1004
#20315 #5-40
 1.5D (0.188) #29 M1004
#20320 #5-40
 2D (0.250) #29 M1004
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Helicoil Insert 18-8 SS Unified US Coarse - #5-40 x 1D (0.125)
SKU #11150002
Helicoil Insert 18-8 SS Unified US Coarse - #5-40 x 1D (0.125)
SKU #11150002
1
 $1.16 (1.16/ea)
25
 $27.75 (1.11/ea)
100
 $104.00 (1.04/ea)
1000
 $1,020.00 (1.02/ea)
Subtotal: $0.00 /
Helicoil Insert 18-8 SS Unified US Coarse - #5-40 x 1.5D (0.188)
SKU #11150012
Helicoil Insert 18-8 SS Unified US Coarse - #5-40 x 1.5D (0.188)
SKU #11150012
1
 $1.07 (1.07/ea)
25
 $25.50 (1.02/ea)
100
 $95.00 (0.95/ea)
1000
 $930.00 (0.93/ea)
Subtotal: $0.00 /
Helicoil Insert 18-8 SS Unified US Coarse - #5-40 x 2D (0.250)
SKU #11150022
Helicoil Insert 18-8 SS Unified US Coarse - #5-40 x 2D (0.250)
SKU #11150022
1
 $1.23 (1.23/ea)
25
 $29.00 (1.16/ea)
100
 $109.00 (1.09/ea)
1000
 $1,080.00 (1.08/ea)
Subtotal: $0.00 /

Frequently Used With

E-Z Lok Drive Tool - #500-9
E-Z Lok Drive Tool - #500-9 11840020
E-Z Lok Drive Tool - #500-9
E-Z Lok Drive Tool - #500-9

Our Price: $15.93
Subtotal: $0.00 /
MRO Solution 1000 - Food Grade Anti-Seize Lubricant - 8 oz.
MRO Solution 1000 - Food Grade Anti-Seize Lubricant - 8 oz. 1050-104
MRO Solution 1000 - Food Grade Anti-Seize Lubricant - 8 oz.
Food Grade Anti Seize MRO Solution 1000 - 8oz
Prevent Fastener Galling & Locking Up with Anti-Seize Lubricants

Our Price: $21.74
Subtotal: $0.00 /
MRO Solution 2400 - Marine Grade Anti-Seize Lubricant - 8 oz.
MRO Solution 2400 - Marine Grade Anti-Seize Lubricant - 8 oz. 1050-106
MRO Solution 2400 - Marine Grade Anti-Seize Lubricant - 8 oz.
Anti Seize MRO Solution 2400 - 8oz
Prevent Fastener Galling & Locking Up with Anti-Seize Lubricants

Our Price: $18.11
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#5
Drill (Hole) Size
#29
Drive Style
E-Z Lok Drive Tool
Free Running OD
Max 0.165 - Min 0.157
Grade
18-8
Head Style
No Head
Internal Thread
#5-40
Material
Stainless Steel
Pilot Hole
#29
Product Type
Thread Insert - Coil
System of Measurement (Unit)
Inch
Tap Size
STI #5-40
Thread Direction
Right Hand
Thread Pitch (Count)
40 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
