#10-24 Helicoil Insert for Metal 18-8 Stainless Steel UNC

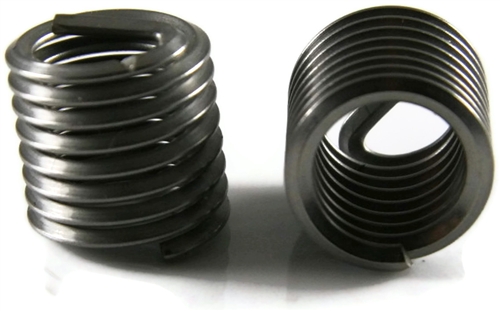

#10-24 Stainless Steel E-Z Coil Helical Threaded Inserts

Internal Thread Size: #10-24


10-24 Helicoil Inserts are used to reinforce and repair tapped holes in soft metals.

  • Feature strong, corrosion resistant internal threads
  • Engineered to withstand temperatures up to 800 degrees Fahrenheit
  • The diameter of a helical insert will be larger than the tapped hole (before install)
  • Once properly installed the insert diameter reduces allowing the helical insert to thread the hole
After installation, E-Z Lok coil inserts will stay firmly in place as the radial pressure of the spring releases.


Stainless Steel 10-24 Helicoil Inserts are ideal for applications requiring additional corrosion resistance, as well as automotive, food, beverage, and other clean-critical applications.

Sizes Listed As:
Internal Thread Size x Insert Length
D = Diameter, (ex #4-40 x 2D is 2 times as long as the Insert's Diameter)


EZ-LOK
Part #
Internal
Thread
Length Drill Size EZ-LOK
Drive Tool
#20610 #10-24
1D (0.190) 13/64" M1007
#20615 #10-24 1.5D (0.285) 13/64" M1007
#20620 #10-24 2D (0.380) 13/64" M1007
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Helicoil Insert 18-8 SS Unified US Coarse - #10-24 x 1D (0.190)
SKU #11210002
Helicoil Insert 18-8 SS Unified US Coarse - #10-24 x 1D (0.190)
SKU #11210002
1
$1.11 (1.11/ea)
25
$27.00 (1.08/ea)
100
$104.00 (1.04/ea)
1000
$1,020.00 (1.02/ea)
Subtotal: $0.00 /
Helicoil Insert 18-8 SS Unified US Coarse - #10-24 x 1.5D (0.285)
SKU #11210012
Helicoil Insert 18-8 SS Unified US Coarse - #10-24 x 1.5D (0.285)
SKU #11210012
1
$1.02 (1.02/ea)
25
$24.75 (0.99/ea)
100
$95.00 (0.95/ea)
1000
$930.00 (0.93/ea)
Subtotal: $0.00 /
Helicoil Insert 18-8 SS Unified US Coarse - #10-24 x 2D (0.380)
SKU #11210022
Helicoil Insert 18-8 SS Unified US Coarse - #10-24 x 2D (0.380)
SKU #11210022
1
$1.17 (1.17/ea)
25
$28.50 (1.14/ea)
100
$109.00 (1.09/ea)
1000
$1,080.00 (1.08/ea)
Subtotal: $0.00 /




Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#10
Drill (Hole) Size
13/64"
Drive Style
E-Z Lok Drive Tool
Free Running OD
Max 0.248 - Min 0.240
Grade
18-8
Head Style
No Head
Internal Thread
#10-24
Material
Stainless Steel
Pilot Hole
13/64"
Product Type
Thread Insert - Coil
System of Measurement (Unit)
Inch
Tap Size
STI #10-24
Thread Direction
Right Hand
Thread Pitch (Count)
24 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
