Cap Nuts, Nickel Plated Steel, #6-32 UNC
Steel Acorn / Cap Nuts with a Nickel Plating for Durability
Quantity | Unit price |
---|---|
To 99 |
$0.13*
|
To 999 |
$0.09*
|
From 1000 |
$0.07*
|
- Across Flats (Width): Max 0.312" - Min 0.302"
- Color: Silver
- Condition: New
- Diameter: #6
- Drive Style: External Hex
- Thread Direction: Right Hand
- Finish: Nickel Plated
- Fit: 2B
- Internal Thread: #6-32
- Material: Steel
- Part Number: 722703791480
- Product Type: Cap Nuts
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #6-32
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb

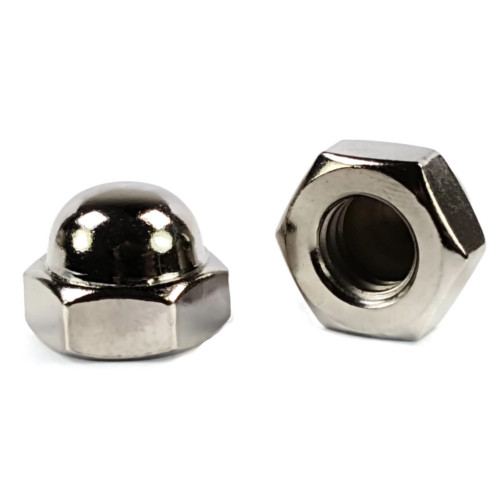

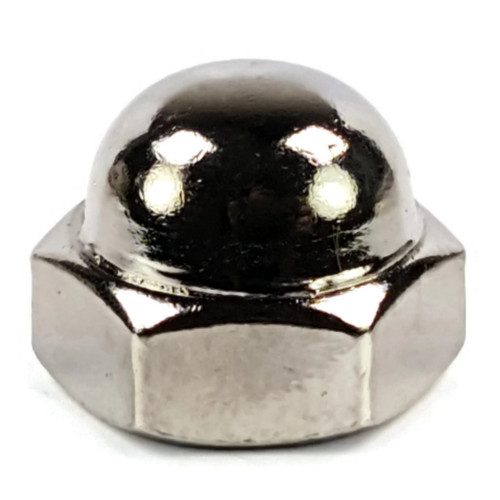

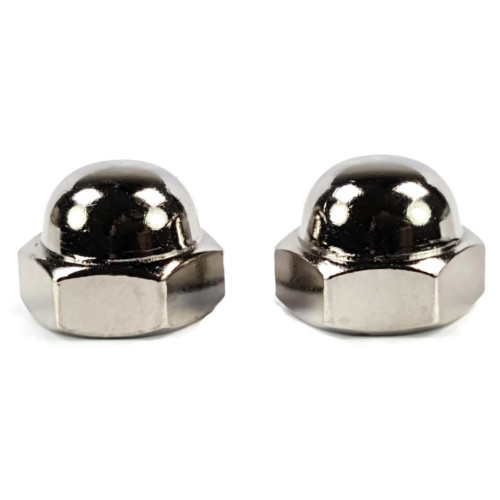

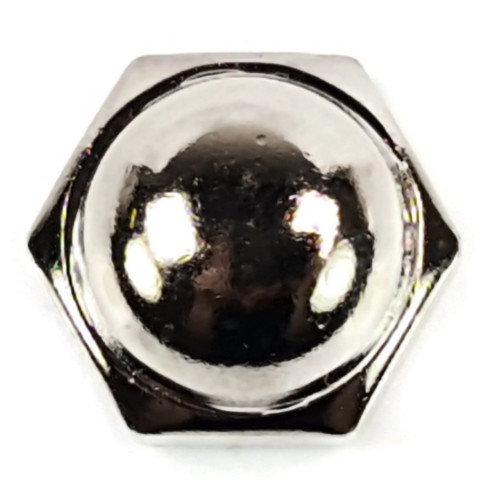

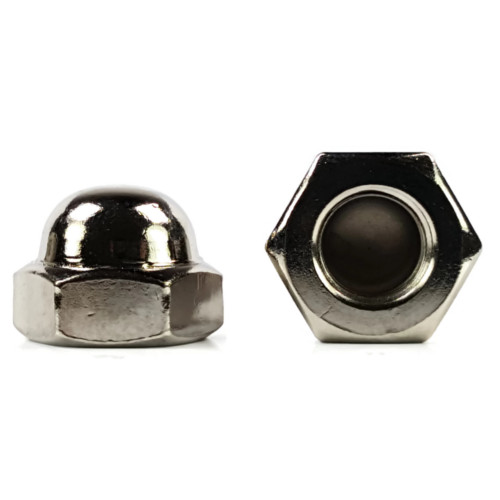

- Hex nut with a closed end
- Domed thread to protect external thread
- Low Crown
- Most Popular style
- Easily Removable
- Aesthetic finished look
- Also known as an Acorn Nut, Cap Nut, or Dome Nut

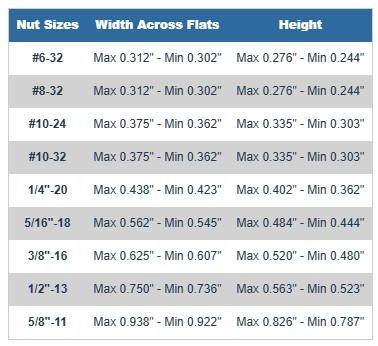

Nut Sizes | Width Across Flats | Height |
#6-32 | Max 0.312" - Min 0.302" | Max 0.276" - Min 0.244" |
#8-32 | Max 0.312" - Min 0.302" | Max 0.276" - Min 0.244" |
#10-24 | Max 0.375" - Min 0.362" | Max 0.335" - Min 0.303" |
#10-32 | Max 0.375" - Min 0.362" | Max 0.335" - Min 0.303" |
1/4"-20 | Max 0.438" - Min 0.423" | Max 0.402" - Min 0.362" |
5/16"-18 | Max 0.562" - Min 0.545" | Max 0.484" - Min 0.444" |
3/8"-16 | Max 0.625" - Min 0.607" | Max 0.520" - Min 0.480" |
1/2"-13 | Max 0.750" - Min 0.736" | Max 0.563" - Min 0.523" |
5/8"-11 | Max 0.938" - Min 0.922" | Max 0.826" - Min 0.787" |
Product number:
1102-121-0002
