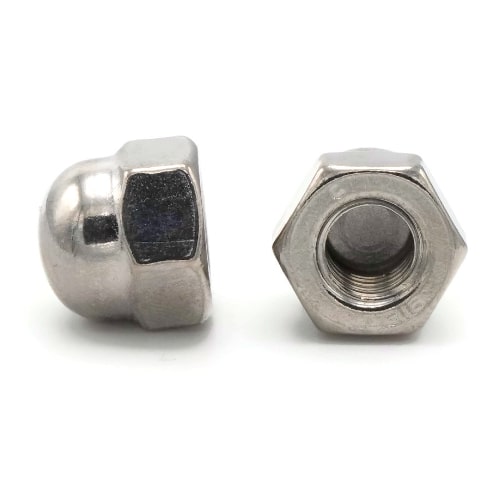

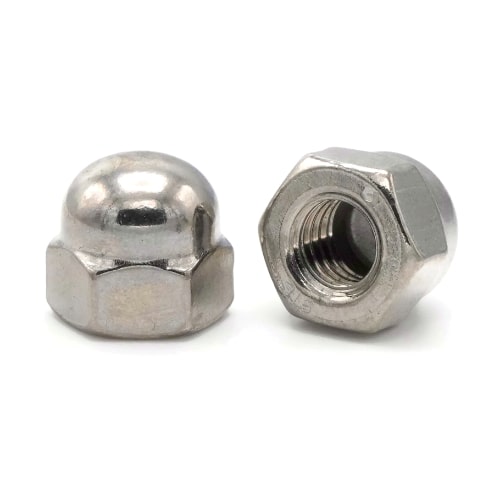

Cap Nuts, Stainless Steel 316, 1/4"-20 (7/16 Flats x 15/32 Height)
Acorn / Cap Nuts in Premium 316 Stainless Steel
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.97*
|
| 100 – 999 |
$0.64*
|
| 1000+ |
$0.58*
|
- Across Flats (Width): 7/16"
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 1/4"
- Drive Style: External Hex
- Thread Direction: Right Hand
- Fit: 2B
- Grade: 316
- Internal Thread: 1/4/2020
- Marine Grade: Yes
- Material: Stainless Steel
- Part Number: 720572178784
- Product Type: Cap Nuts
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 20 Per Inch
- Thread Size: 1/4"-20
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Hex nut with a closed end
- Domed thread to protect external thread
- Low Crown
- Most Popular style
- Easily Removable
- Aesthetic finished look
- Also known as an Acorn Nut, Cap Nut, or Dome Nut
| Nut Sizes | Flats | Height |
| 1/4"-20 | 7/16" | 15/32" |
| 5/16"-18 | 9/16" | 17/32" |
| 3/8"-16 | 5/8" | 5/8" |
| 5/8"-11 | 1" | 63/64" |
| 3/4"-10 | 1-1/16" | 1-3/16" |
Product number:
1102-140-0002
