Beveled Square Washers Hot Dipped Galvanized Steel

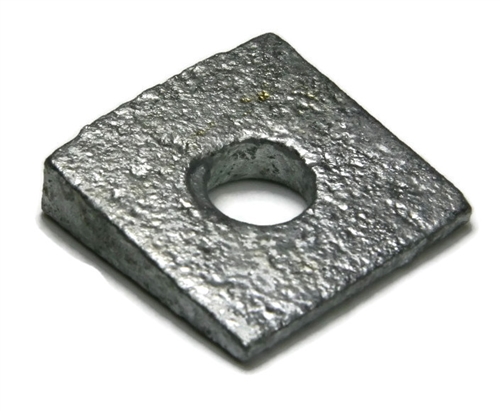

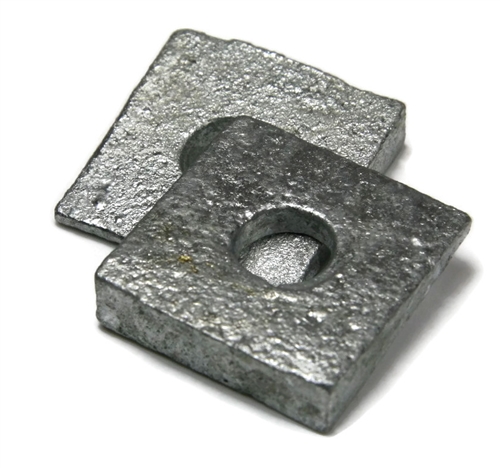

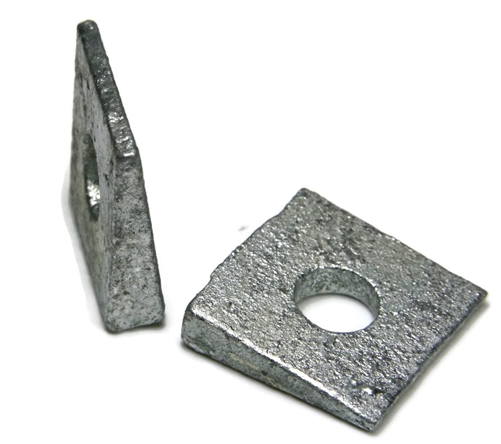

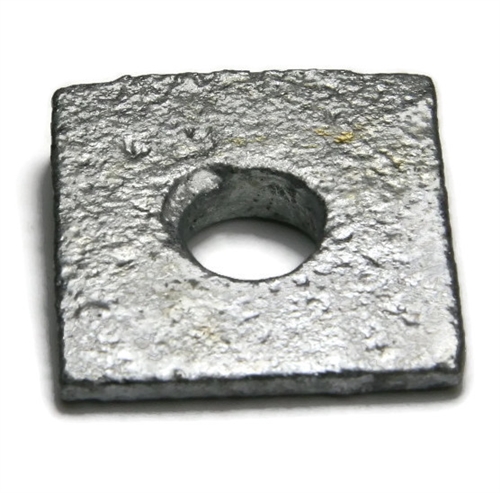

Beveled Square Washers

Malleable F436 Hardened Washer in Hot Dipped Galvanized Steel


  • Beveled square washers are used in areas where the surfaces of a fastener assembly are not even
  • Larger surface area to create greater resistance to movement
  • Limits the effect of vibration loosening of fastener assemblies
  • Commonly used where seismic activity is likely to occur
  • Malleable F436 hardened washers have a hard dipped galvanized coating
  • Hot dipped galvanized coating creates a corrosion resistant finish which is perfect for harsh environments
  • Actual measurements may vary slightly +/- depending on production run

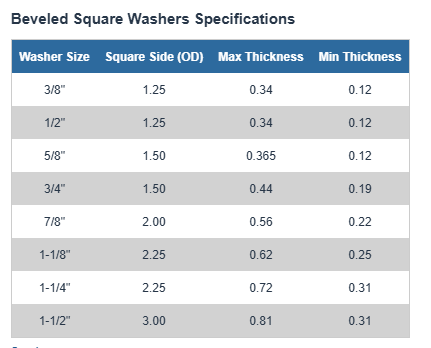

Beveled Square Washers Specifications
Washer Size
Square Side (OD) Max Thickness
Min Thickness
3/8" 1.25 0.34 0.12
1/2" 1.25 0.34 0.12
3/4" 1.50 0.44 0.19
7/8" 2.00 0.56 0.22
1-1/8" 2.25 0.62 0.25
1-1/4" 2.25 0.72 0.31
1-1/2" 3.00 0.81 0.31
Select Products Below
Product Specifications
Color
Gray
Corrosion Resistant
Yes
Finish
Hot Dip Galvanized
Material
Steel
Product Type
Beveled Square Washer
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Select Products Below
Qty
Size
Select Package Quantity
SubTotal
3/8" OD 1.25
SKU #1070-016-0002
3/8" OD 1.25
SKU #1070-016-0002
1
$0.45 (0.45/ea)
25
$10.25 (0.41/ea)
100
$38.00 (0.38/ea)
1000
$340.00 (0.34/ea)

1/2" OD 1.25
SKU #1070-016-0012
1/2" OD 1.25
SKU #1070-016-0012
1
$0.43 (0.43/ea)
25
$10.00 (0.40/ea)
100
$36.00 (0.36/ea)
1000
$330.00 (0.33/ea)

3/4" OD 1.50
SKU #1070-016-0032
3/4" OD 1.50
SKU #1070-016-0032
1
$0.74 (0.74/ea)
25
$17.00 (0.68/ea)
100
$62.00 (0.62/ea)
1000
$560.00 (0.56/ea)

7/8" OD 2.00
SKU #1070-016-0042
7/8" OD 2.00
SKU #1070-016-0042
1
$1.85 (1.85/ea)
25
$42.25 (1.69/ea)
100
$154.00 (1.54/ea)
1000
$1,380.00 (1.38/ea)

1-1/8" OD 2.25
SKU #1070-016-0062
1-1/8" OD 2.25
SKU #1070-016-0062
1
$3.04 (3.04/ea)
25
$69.75 (2.79/ea)
100
$253.00 (2.53/ea)
1000
$2,280.00 (2.28/ea)

1-1/4" OD 2.25
SKU #1070-016-0072
1-1/4" OD 2.25
SKU #1070-016-0072
1
$3.36 (3.36/ea)
25
$77.00 (3.08/ea)
100
$280.00 (2.80/ea)
1000
$2,520.00 (2.52/ea)

1-1/2" OD 3
SKU #1070-016-0082
1-1/2" OD 3
SKU #1070-016-0082
1
$6.98 (6.98/ea)
25
$160.00 (6.40/ea)
100
$582.00 (5.82/ea)
1000
$5,240.00 (5.24/ea)
