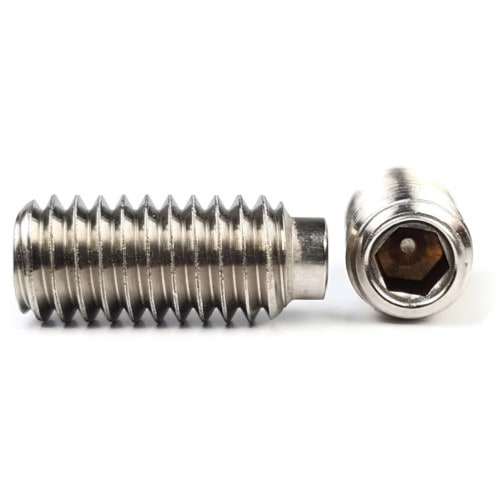

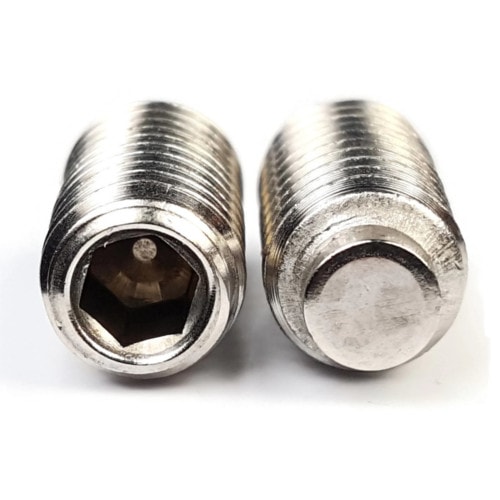

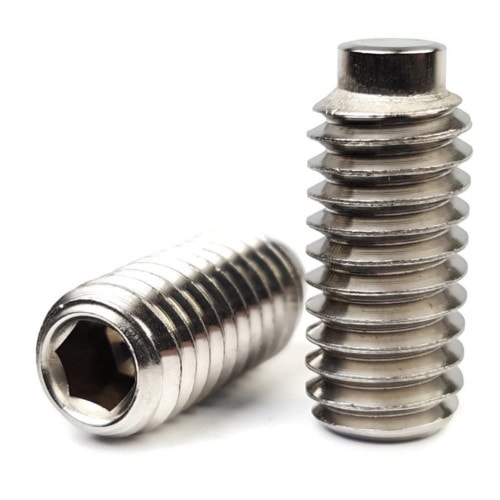

Socket Set Screws, Half Dog Point, Hex 5/64" Drive, Stainless Steel 18-8, #8-32 x 3/16"
Stainless Steel Grub Screws with an Extended Flat Point
| Quantity | Unit price |
|---|---|
| To 99 |
$0.22*
|
| To 999 |
$0.14*
|
| From 1000 |
$0.13*
|
- asme: ASME B18.3
- Color: Silver
- Corrosion Resistant: Yes
- Diameter: #8
- Dog Point Diameter: Max 0.109 - Min 0.103
- Dog Point Length: Max 0.043 - Min 0.037
- Drive Style: Internal Hex (Allen)
- Head Type: No Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 3A
- Grade: 18-8
- Head Style: No Head
- Hex Drive: 5/64"
- Length: 3/16"
- Material: Stainless Steel
- Point Type: Half Dog
- Product Type: Socket Set Screw
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #8-32
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Generally used to secure an object within or against another object
- Commonly used to secure a pulley or gear to a shaft
- Headless (blind)to run flush with surface
- Driven by a Hex Key or Allen Wrench
- Extended point beyond the threading of the screw to match with a hole in the work piece
- 18-8 Stainless steel is corrosion resistant and durable
- Suitable for exterior applications where exposed to fresh water moisture
Dog point set screws feature an extended point beyond the threading of the screw intended to match with a hole in the work piece, similar to a dowel pin. This allows the shaft to rotate without dislodging the part. Half Dog Set Screws feature a point that is half of a standard dog point set screw's in length.
Half Dog Set Screws are used in applications that tend to be permanent, or at least long lasting, which is why corrosion resistant stainless steel is an excellent choice of material for a durable and rust resistant assembly.
Product number:
2018-006-002
