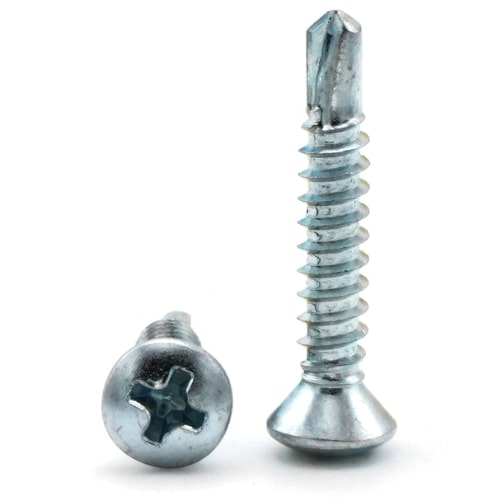

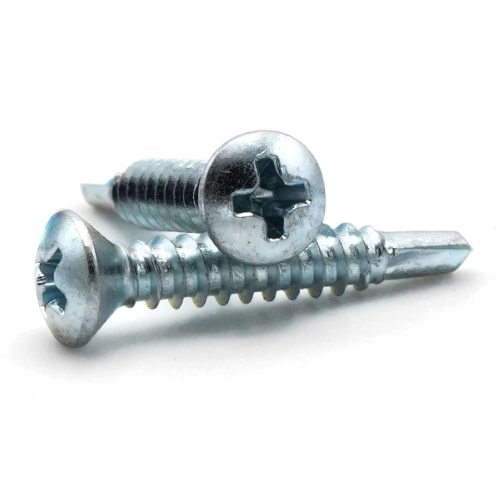

#8-18 Zinc Plated Phillips Oval Head Self Drilling Screws

#8-18 | Zinc Plated Steel Phillips Oval Head Self Drilling Screws

Diameter - Thread Pitch: #8-18

  • #8-18
  • CR+3 Zinc to easily drill into materials
  • Raised decorative head, with a countersunk bottom and a round top
  • #2 Self drilling (TEK) point
  • Zinc plated phillips oval head self drilling screws are hardened to make drilling easy
  • NOTE: Sheet metal screws provide excellent retention in wood but can be difficult to remove
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Phillips Oval Head Self Driller TEK 2 Zinc - #8 x 3/4"
SKU #1523-006-0032
Phillips Oval Head Self Driller TEK 2 Zinc - #8 x 3/4"
SKU #1523-006-0032
1
 $0.44 (0.44/ea)
100
 $8.00 (0.08/ea)
1000
 $70.00 (0.07/ea)
Subtotal: $0.00 /
Phillips Oval Head Self Driller TEK 2 Zinc - #8 x 1"
SKU #1523-006-0042
Phillips Oval Head Self Driller TEK 2 Zinc - #8 x 1"
SKU #1523-006-0042
1
 $0.44 (0.44/ea)
100
 $9.00 (0.09/ea)
1000
 $70.00 (0.07/ea)
Subtotal: $0.00 /
Phillips Oval Head Self Driller TEK 2 Zinc - #8 x 1-1/4"
SKU #1523-006-0052
Phillips Oval Head Self Driller TEK 2 Zinc - #8 x 1-1/4"
SKU #1523-006-0052
1
 $0.44 (0.44/ea)
100
 $9.00 (0.09/ea)
1000
 $70.00 (0.07/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Countersink
Yes
Diameter
#8
Drive Style
Phillips
Finish
Zinc Plated
Head Diameter
Max 0.332 - Min 0.292
Head Height Max
0.152
Head Style
Oval
Material
Steel
Overall Head Height
Max 0.152 - Min 0.126
Phillips Drive
#2
Point Type
TEK
Product Type
Self Drilling Screws
System of Measurement (Unit)
Inch
TEK Self Drilling Point
TEK-2 (0.211)
Thread Direction
Right Hand
Thread Pitch (Count)
18 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
