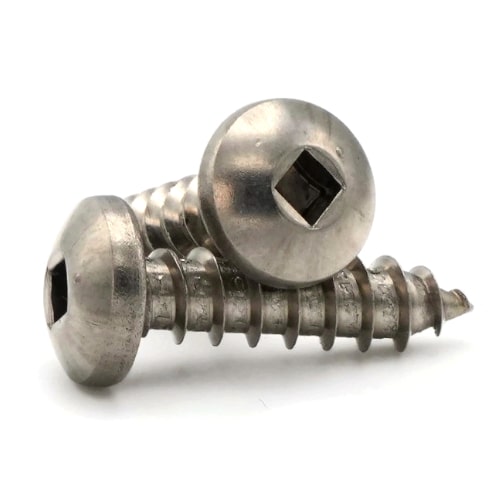

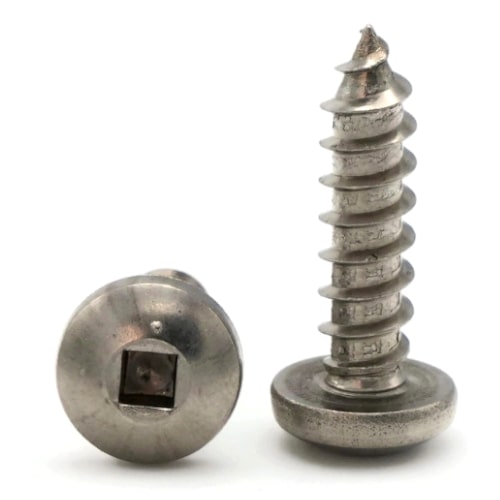

Sheet Metal Screws, Square Drive Pan Head, Stainless Steel 316, #6

Sheet Metal Screws, Square Drive Pan Head, Stainless Steel 316, #6

Diameter - Thread Pitch: #6-20

  • #6-20
  • Easily cut into soft materials
  • Fully threaded
  • Threads cut into material
  • Great for attaching metal equipment to wood
  • Strong retention in wood
  • Square drive to prevent stripping at higher torque
  • Sizes listed below as: Diameter - Length
  • 316 Stainless steel square drive pan head sheet metal screws are corrosion and rust resistant
  • Great for fresh water moisture environments
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
#6-20 x 3/8"
SKU #6016-002-002
#6-20 x 3/8"
SKU #6016-002-002
1 $0.16 (0.16/ea)
100 $12.00 (0.12/ea)
1000 $100.00 (0.1/ea)
Subtotal: $0.00 /
#6-20 x 1/2"
SKU #6016-002-004
#6-20 x 1/2"
SKU #6016-002-004
1 $0.16 (0.16/ea)
100 $12.00 (0.12/ea)
1000 $100.00 (0.1/ea)
Subtotal: $0.00 /
#6-20 x 5/8"
SKU #6016-002-006
#6-20 x 5/8"
SKU #6016-002-006
1 $0.20 (0.2/ea)
100 $16.00 (0.16/ea)
1000 $130.00 (0.13/ea)
Subtotal: $0.00 /
#6-20 x 3/4"
SKU #6016-002-008
#6-20 x 3/4"
SKU #6016-002-008
1 $0.20 (0.2/ea)
100 $16.00 (0.16/ea)
1000 $130.00 (0.13/ea)
Subtotal: $0.00 /
#6-20 x 1"
SKU #6016-002-010
#6-20 x 1"
SKU #6016-002-010
1 $0.20 (0.2/ea)
100 $16.00 (0.16/ea)
1000 $130.00 (0.13/ea)
Subtotal: $0.00 /
#6-20 x 1-1/4"
SKU #6016-002-012
#6-20 x 1-1/4"
SKU #6016-002-012
1 $0.36 (0.36/ea)
100 $30.00 (0.3/ea)
1000 $250.00 (0.25/ea)
Subtotal: $0.00 /
#6-20 x 1-1/2"
SKU #6016-002-014
#6-20 x 1-1/2"
SKU #6016-002-014
1 $0.60 (0.6/ea)
100 $48.00 (0.48/ea)
1000 $450.00 (0.45/ea)
Subtotal: $0.00 /

Frequently Used With

Flat Washers 316 SS - #6 (0.15 ID x 0.312 OD x .031 THK)
Flat Washers 316 SS - #6 (0.15 ID x 0.312 OD x .031 THK) 12280013
Flat Washers 316 SS - #6 (0.15 ID x 0.312 OD x .031 THK)
1 $0.08 (0.08/ea)
100 $3.00 (0.03/ea)
1000 $20.00 (0.02/ea)
Subtotal: $0.00
Lock Washer Split Ring 316 SS - #6 (0.141 ID x 0.250 OD x .031 THK)
Lock Washer Split Ring 316 SS - #6 (0.141 ID x 0.250 OD x .031 THK) 12400014
Lock Washer Split Ring 316 SS - #6 (0.141 ID x 0.250 OD x .031 THK)
1 $0.05 (0.05/ea)
100 $2.00 (0.02/ea)
1000 $10.00 (0.01/ea)
Subtotal: $0.00
Square Power Bits - #1 - Length 2"
Square Power Bits - #1 - Length 2" 1050-600-0006
Square Power Bits - #1 - Length 2
1 $1.02 (1.02/ea)
10 $8.60 (0.86/ea)
50 $38.50 (0.77/ea)
Subtotal: $0.00
Square Power Bits Titanium Nitride - #1 x 2"
Square Power Bits Titanium Nitride - #1 x 2" 1050-602-0002
Square Power Bits Titanium Nitride - #1 x 2
1 $4.84 (4.84/ea)
10 $43.20 (4.32/ea)
50 $194.50 (3.89/ea)
Subtotal: $0.00
Norseman Magnum Super Premium Jobber Length Drill Bits, #32
Norseman Magnum Super Premium Jobber Length Drill Bits, #32 1052-338-0188
Norseman Magnum Super Premium Jobber Length Drill Bits, #32
1 $1.51 (1.51/ea)
10 $10.30 (1.03/ea)
Subtotal: $0.00
Bolts, Screws & Nuts Gauge
Bolts, Screws & Nuts Gauge 1050-200
Bolts, Screws & Nuts Gauge
Fastener Measuring Gauge Nuts, Bolts Washers & Screws Measuring & Identification Tool
Our Price: $9.00
Subtotal: $0.00
Product Specifications
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#6
Drive Style
Internal Square
Grade
316
Head Diameter
Max 0.270 - Min 0.256
Head Height Max
0.082
Head Style
Pan
Marine Grade
Yes
Material
Stainless Steel
Overall Head Height
Max 0.082 - Min 0.072
Product Type
Sheet Metal Screws
Square Drive
#1
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
20 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
