#6-32 Square Drive Pan Head Machine Screw 18-8 Stainless Steel

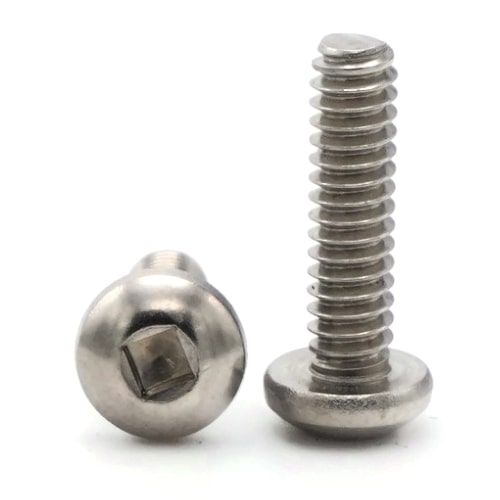

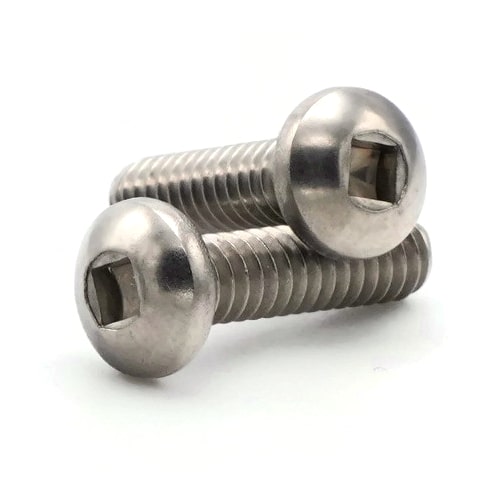

#6-32 Stainless Steel Square Drive Pan Head Machine Screws

Diameter - Thread Pitch: #6-32

  • A machine screw is commonly identified by its small size
  • Square Drive can help eliminate the stripping effect when installed correctly
  • Installed with either a nut or in a pre-drilled pilot hole
  • 18-8 Stainless steel square pan head machine screws are suitable for exterior applications where fresh water is present
  • 18-8 Stainless steel is rust resistant and corrosion resistant

#6-32 Star drive pan head machine screws are available in black oxide 18-8 stainless steel.

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Square Drive Pan Head Machine Screw 18-8 SS (#6-32 x 1/2")
SKU #1015-40012-0002
Square Drive Pan Head Machine Screw 18-8 SS (#6-32 x 1/2")
SKU #1015-40012-0002
1
 NA
25
 $4.75 (0.19/ea)
100
 $13.00 (0.13/ea)
1000
 $110.00 (0.11/ea)
Subtotal: $0.00 /
Square Drive Pan Head Machine Screw 18-8 SS (#6-32 x 3/4")
SKU #1015-40012-0012
Square Drive Pan Head Machine Screw 18-8 SS (#6-32 x 3/4")
SKU #1015-40012-0012
1
 NA
25
 $5.75 (0.23/ea)
100
 $17.00 (0.17/ea)
1000
 $150.00 (0.15/ea)
Subtotal: $0.00 /
Square Drive Pan Head Machine Screw 18-8 SS (#6-32 x 1")
SKU #1015-40012-0022
Square Drive Pan Head Machine Screw 18-8 SS (#6-32 x 1")
SKU #1015-40012-0022
1
 NA
25
 $5.75 (0.23/ea)
100
 $17.00 (0.17/ea)
1000
 $150.00 (0.15/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Square Power Bits - #2 - Length 2"
Square Power Bits - #2 - Length 2" 1050-600-0011
Square Power Bits - #2 - Length 2
1
 $1.05 (1.05/ea)
10
 $8.60 (0.86/ea)
25
 $19.75 (0.79/ea)
50
 $38.50 (0.77/ea)
Subtotal: $0.00 /
Hex Machine Nuts 304 Stainless Steel - #6-32 (5/16 Flats x 7/64 Thick)
Hex Machine Nuts 304 Stainless Steel - #6-32 (5/16 Flats x 7/64 Thick) 125062
Hex Machine Nuts 304 Stainless Steel - #6-32 (5/16 Flats x 7/64 Thick)
1
 NA
25
 $1.50 (0.06/ea)
100
 $4.00 (0.04/ea)
1000
 $30.00 (0.03/ea)
Subtotal: $0.00 /
Flat Washers 304 SS - #6 (.149 ID x .375 OD x .031 Thick)
Flat Washers 304 SS - #6 (.149 ID x .375 OD x .031 Thick) 1000-105102
Flat Washers 304 SS - #6 (.149 ID x .375 OD x .031 Thick)
1
 NA
25
 $1.50 (0.06/ea)
100
 $3.00 (0.03/ea)
1000
 $20.00 (0.02/ea)
Subtotal: $0.00 /
Product Specifications
ANSI
B18.6.3
Color
Silver
Corrosion Resistant
Yes
Drive Style
Internal Square
Fit
Class 2A
Grade
18-8
Hardness
100 Rockwell B
Head Diameter
Max 0.270 - Min 0.256
Head Style
Pan
Material
Stainless Steel
Overall Head Height
Max 0.082 - Min 0.072
Product Type
Square Drive Pan Head Machine Screw
Square Drive
#2
Standards Met
ANSI B18.6.3
System of Measurement (Unit)
Inch
Tensile PSI
100,000 - 125,000 PSI
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Yield PSI
55,000 - 75,000 PSI
