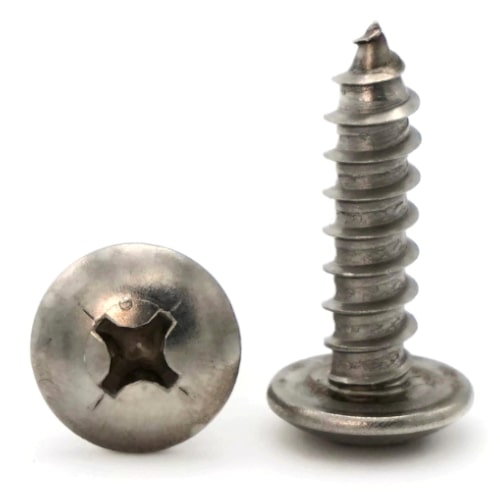

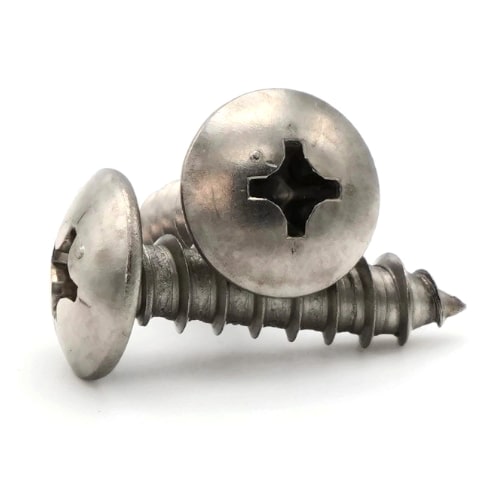

#6-18 | 316 Stainless Steel Phillips Truss Head Sheet Metal Screws
Diameter - Thread Pitch: #6-18
- #6-18
- Sharp cutting threads that cut into material for better retention
- Fully Threaded
- Excellent for attaching metal hardware to wood
- 316 Stainless steel Phillips truss head sheet metal screws are ideal for marine and other harsh environments
- Extremely Corrosion resistant
- Suitable for fresh water moisture environments
- Most commonly used for:
- Sheet Metal
- Wood
- Plastic
- Sizes listed below as: Diameter - Thread Pitch
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
ANSI
ANSI B18.6.4
Color
Silver
Corrosion Resistant
Yes
Diameter
#6
Drive Style
Phillips
Grade
316
Head Diameter
Max 0.321 - Min 0.303
Head Side Height
0.086
Head Style
Truss
Marine Grade
Yes
Material
Stainless Steel
Overall Head Height
Max 0.086 - Min 0.074
Phillips Drive
#2
Point Type
A
Product Type
Sheet Metal Screws
Standards Met
ANSI B18.6.4
System of Measurement (Unit)
Inch
Thread Diameter Major
(#6) 0.141" - 0.136"
Thread Diameter Minor
(#6) 0.102" - 0.096"
Thread Direction
Right Hand
Thread Pitch (Count)
18 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
