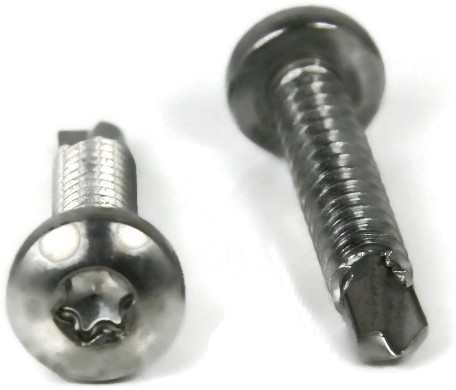

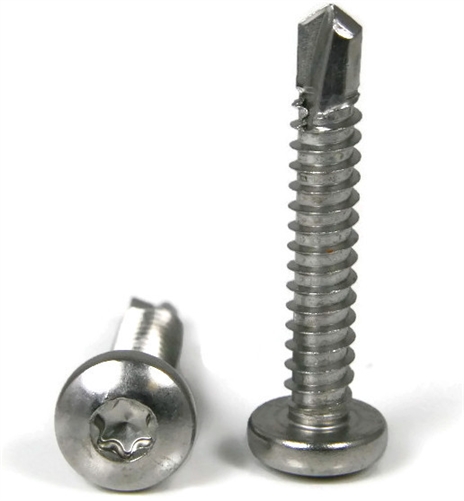

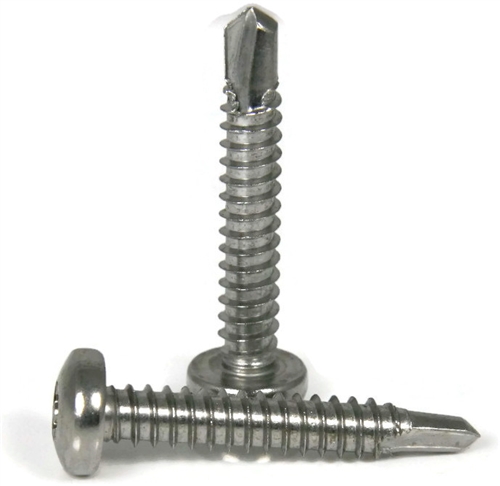

#6-20 Star Drive Pan Head Self Driller 410 Stainless Steel

#6-20 Stainless Steel Star Drive Pan Head Self Drilling Screws

Diameter - Thread Pitch: #6-20

  • #6-20
  • Self drilling point (TEK) with cutting threads
  • Star Drive 6 Lobe drive is unconventional and efficient
  • Lessens the chance of stripping during installation which means more torque can be applied safely
  • 410 Stainless steel square drive pan head self drilling screws are hardened and corrosion resistant
  • A benefit/disadvantage of an unusual drive is that it can be more difficult for users of a device to disassemble than more common head types
  • Sizes listed below as: Diameter - Thread Pitch
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Star Drive Pan Head Self Driller 410 Stainless Steel (#6-20 x 3/8")-
SKU #1010-000-0002
Star Drive Pan Head Self Driller 410 Stainless Steel (#6-20 x 3/8")-
SKU #1010-000-0002
1
 $0.18 (0.18/ea)
100
 $12.00 (0.12/ea)
1000
 $110.00 (0.11/ea)
Subtotal: $0.00 /
Star Drive Pan Head Self Driller 410 Stainless Steel (#6-20 x 1/2")-
SKU #1010-000-0012
Star Drive Pan Head Self Driller 410 Stainless Steel (#6-20 x 1/2")-
SKU #1010-000-0012
1
 $0.19 (0.19/ea)
100
 $12.00 (0.12/ea)
1000
 $110.00 (0.11/ea)
Subtotal: $0.00 /
Star Drive Pan Head Self Driller 410 Stainless Steel (#6-20 x 5/8")-
SKU #1010-000-0022
Star Drive Pan Head Self Driller 410 Stainless Steel (#6-20 x 5/8")-
SKU #1010-000-0022
1
 $0.20 (0.2/ea)
100
 $13.00 (0.13/ea)
1000
 $120.00 (0.12/ea)
Subtotal: $0.00 /
Star Drive Pan Head Self Driller 410 Stainless Steel (#6-20 x 3/4")-
SKU #1010-000-0032
Star Drive Pan Head Self Driller 410 Stainless Steel (#6-20 x 3/4")-
SKU #1010-000-0032
1
 $0.23 (0.23/ea)
100
 $14.00 (0.14/ea)
1000
 $130.00 (0.13/ea)
Subtotal: $0.00 /
Star Drive Pan Head Self Driller 410 Stainless Steel (#6-20 x 1")-
SKU #1010-000-0042
Star Drive Pan Head Self Driller 410 Stainless Steel (#6-20 x 1")-
SKU #1010-000-0042
1
 $0.26 (0.26/ea)
100
 $15.00 (0.15/ea)
1000
 $140.00 (0.14/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Star Drive Power Bits - T10 - Length 2"
Star Drive Power Bits - T10 - Length 2" 1050-700-0021
Star Drive Power Bits - T10 - Length 2
1
 $2.60 (2.6/ea)
10
 $21.50 (2.15/ea)
50
 $97.50 (1.95/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Drive Style
Star
Grade
410
Hardness
40 Rockwell C
Head Diameter
Max 0.270 - Min 0.256
Head Style
Pan
Material
Stainless Steel
Overall Head Height
Max 0.082 - Min 0.072
Point Type
TEK
Product Type
Star Drive Pan Head Self Drilling Screw
System of Measurement (Unit)
Inch
TEK Self Drilling Point
TEK-2 (0.211)
Tensile PSI
180,000 PSI Heat Treated
Thread Diameter Major
#6 (0.139)
Thread Diameter Minor
#6 (0.104)
Thread Direction
Right Hand
Thread Pitch (Count)
20 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Torx Drive
T-10
