5/16"-18 316 Stainless Steel Carriage Bolt
Diameter - Thread Pitch: 5/16-18
- Square section grips into the part being fixed (typically wood)
- Carriage bolts are threaded all the way down to the square section beneath the head
- Prevents the bolt from turning when the nut is tightened
- 316 Stainless steel is corrosion and rust resistant
- 316 Stainless steel is considered the fastener industry standard

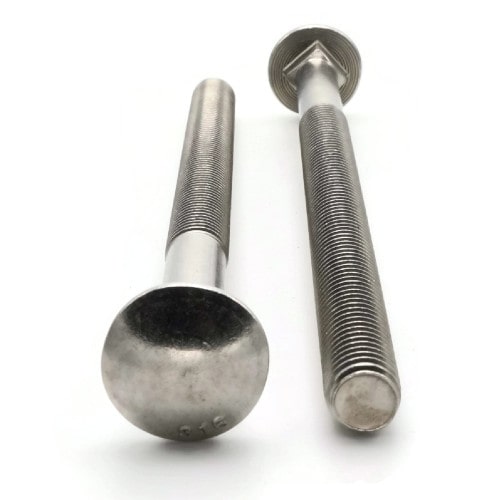

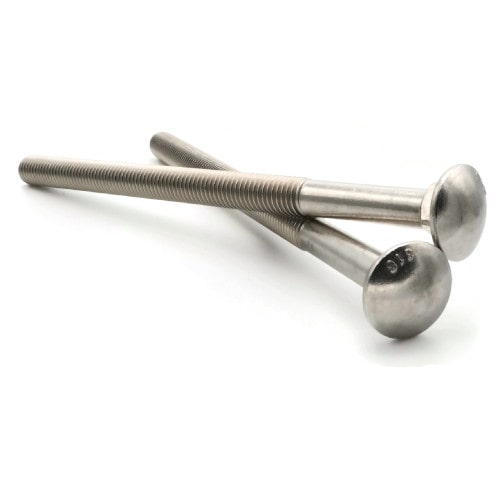

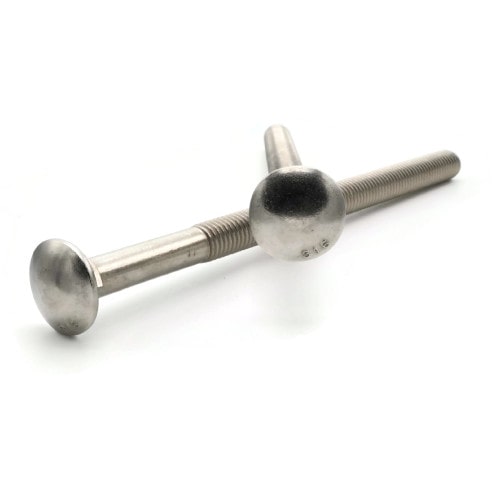

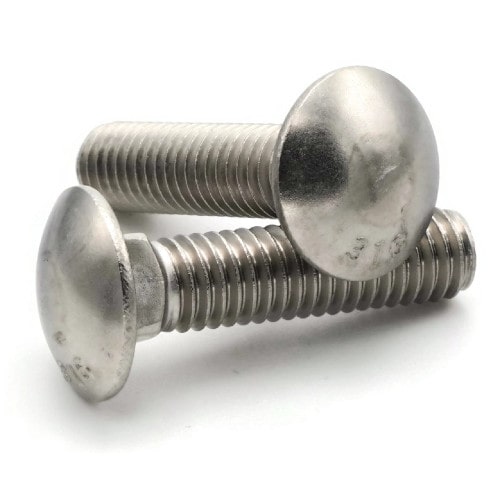

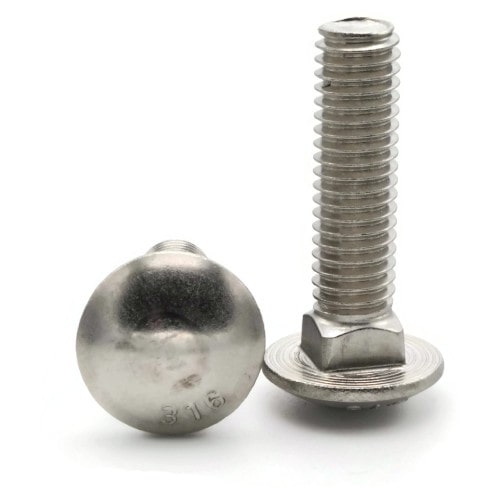

5/16"-18 Carriage bolts have a domed or countersunk head, and the shank is topped by a short square section under the head.
All Carriage Bolts over 6" in length are Partially Threaded
Diameter x Thread Pitch x Length from Under Head
FT: Fully Threaded
PT: Partially Threaded
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Corner Radius on Square
0.031
Corrosion Resistant
Yes
Filet Radius
0.031
Grade
316
Head Diameter
Max 0.719 - Min 0.688
Head Height Max
0.176
Head Style
Dome
Marine Grade
Yes
Material
Stainless Steel
Overall Head Height
Max 0.176 - Min 0.156
Product Type
Carriage Bolt
Square Neck Depth
Max 0.187 - Min 0.156
Square Neck Width
Max 0.324 - Min 0.307
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
18 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
