5/8"-11 Square Head Bolts in Hot Dipped Galvanized Steel

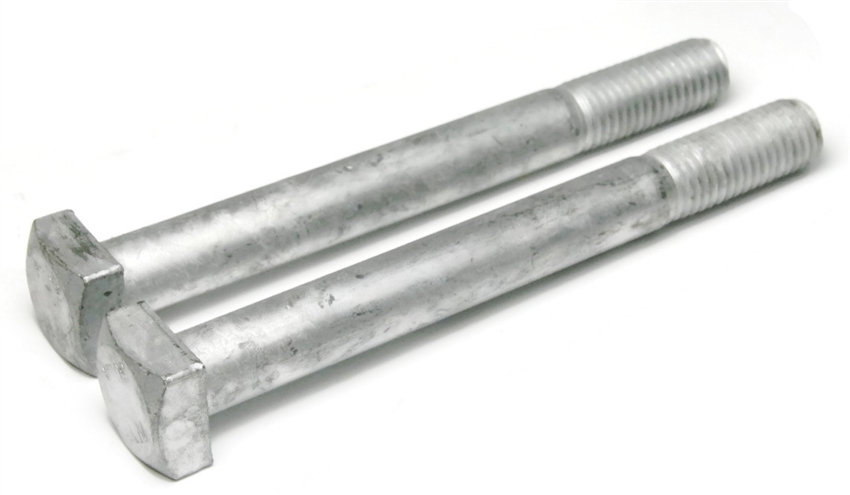

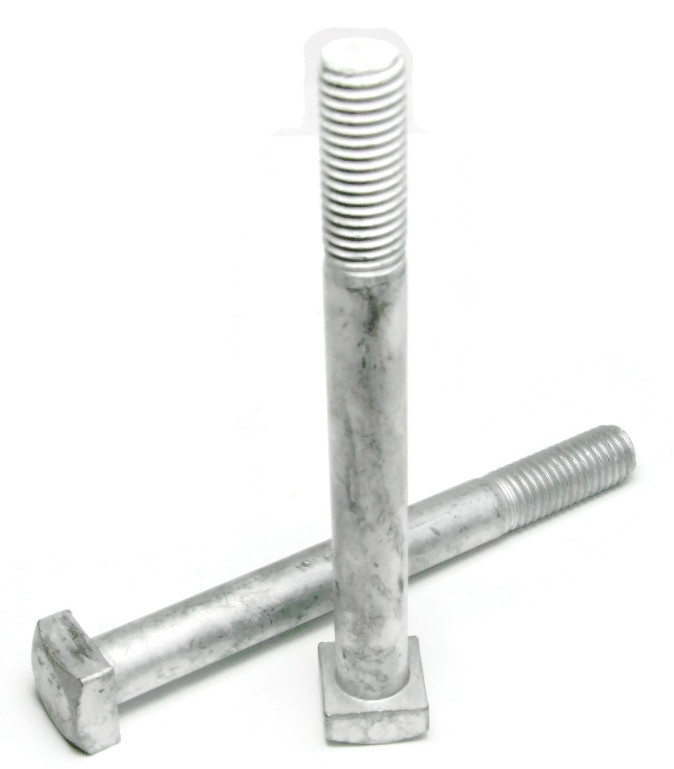

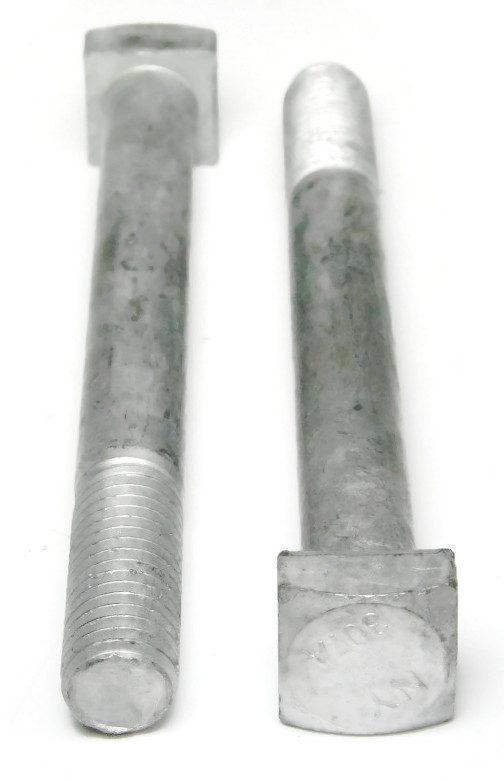

Hot Dip Galvanized Square Head Bolts



Alternative Views:


Hot Dip Galvanized Square Head Bolts

Bolt Diameter - Thread Pitch: 5/8"-11

Square Head Bolts are similar to Hex Cap screws but have a 4 sided square head instead of a 6 sided hexagonal head. The square head enables an easier wrench grip for tightening and a larger bearing area for gripping. They are commonly referred to as both bolts and screws and are designed to be driven with a wrench. Square Head Bolts are partially threaded with a shoulder beneath the head. Hot Dip Galvanized fasteners are extremely corrosion resistant and often used in long lasting, outdoor applications.

Product Specifications:
Square Head Bolts
Body Diameter: (5/8) Max 0.642 - Min 0.605
Thread Pitch: 11 Per Inch (Coarse)
Head Width Across Flats: 15/16", Max 0.938 - Min 0.906
Head Height: Max 0.444 - Min 0.400
Thread Direction: Right Hand
Material: Hot Dip Galvanized Steel
Wrench Size: 15/16"
Product Specifications may vary slightly +/- depending upon production run
within IFI Tolerances

Additional Sizes and Materials of Square Head Bolts are available, but not yet listed on the site. Please call customer service at 866-573-0445 for a custom quote or to place an order.


Matching Products:


Hot Dip Galvanized
Hex Finish Nuts

Hot Dip Galvanized
Flat Washers
Hot Dip Galvanized Hex Nuts
Hot Dip Galvanized Flat Washers

Sizes Listed As:
Diameter - Thread Pitch x Length from Underside of Head



Item# Item Name Our Price Qty Add
1860-002-0002 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 5-1/2" PT - Qty-1
$2.21
1860-002-0004 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 5-1/2" PT - Qty-25
$50.45
1860-002-0006 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 5-1/2" PT - Qty-100
$183.47
1860-002-0008 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 5-1/2" PT - Qty-250
$435.72
1860-002-0010 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 5-1/2" PT - Qty-1000
$1,651.16
1860-002-0012 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 6" PT - Qty-1
$7.67
1860-002-0014 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 6" PT - Qty-25
$60.48
1860-002-0016 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 6" PT - Qty-100
$206.09
1860-002-0018 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 6" PT - Qty-250
$482.25
1860-002-0020 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 6" PT - Qty-1000
$1,812.85
1860-002-0022 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 8" PT - Qty-1
$7.92
1860-002-0024 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 8" PT - Qty-25
$66.30
1860-002-0026 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 8" PT - Qty-100
$227.24
1860-002-0028 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 8" PT - Qty-250
$532.49
1860-002-0030 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 8" PT - Qty-1000
$2,003.19
1860-002-0032 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 10" PT - Qty-1
$8.83
1860-002-0034 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 10" PT - Qty-25
$87.19
1860-002-0036 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 10" PT - Qty-100
$303.24
1860-002-0038 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 10" PT - Qty-250
$712.97
1860-002-0040 Square Head Bolts Hot Dipped Galvanized - 5/8"-11 x 10" PT - Qty-1000
$2,687.14
