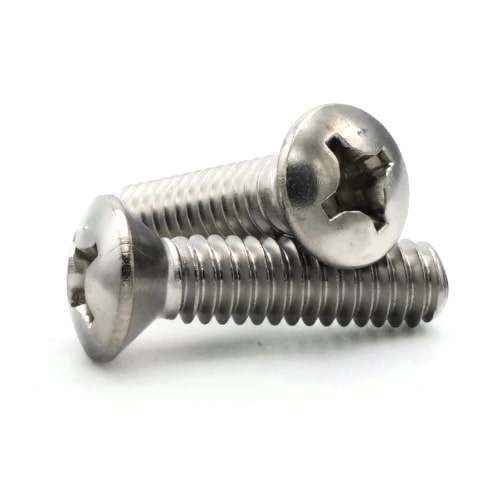

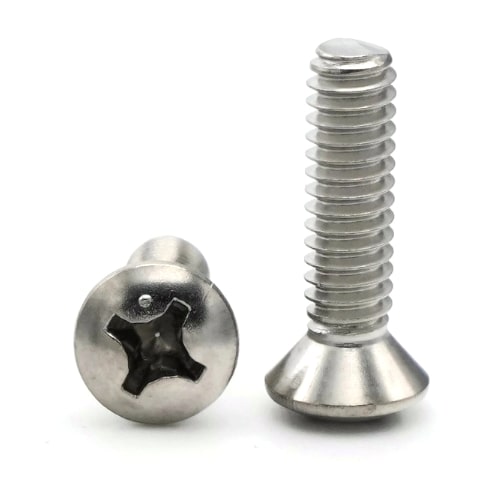

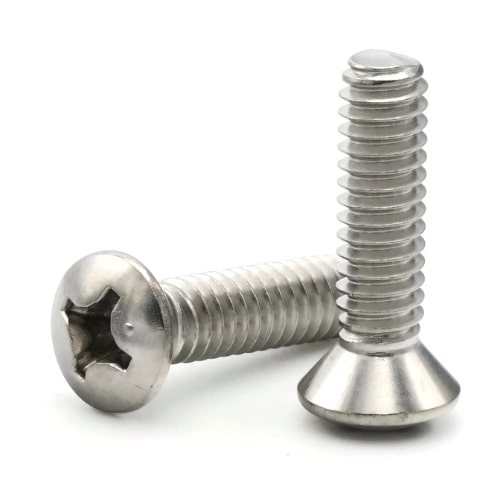

Machine Screws, Phillips Oval Head, Stainless Steel 316, 5/16"-18 x 1"
Diameter - Thread Pitch: 5/16"-18
| Quantity | Unit price |
|---|---|
| To 99 |
$1.18*
|
| To 999 |
$0.93*
|
| From 1000 |
$0.82*
|
- ANSI: ANSI B1.1
- Class: 2A
- Color: Silver
- Corrosion Resistant: Yes
- Countersink: 82 Degree
- Diameter: 5/16"
- Drive Style: Phillips
- Elongation: 30%
- Head Type: Oval Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Grade: 316
- Head Height Max: 0.29
- Head Diameter: Max 0.635 - Min 0.568
- Head Style: Oval
- Length: 1"
- Marine Grade: Yes
- Material: Stainless Steel
- Overall Head Height: Max 0.290 - Min 0.249
- Phillips Drive: #3
- Point Type: Machine Screws
- Product Type: Machine Screws
- Standards Met: ANSI B18.6.3
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 18 Per Inch
- Thread Size: 5/16"-18
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Countersunk head with a raised domed top
- Used either with a nut or in a pre-tapped hole
- A machine screw is commonly identified by its small size
- Raised decorative head
- Used to secure materials that may be tampered with
- Ideal for saltwater moisture environments
- Rust and corrosion resistant
5/16"-18 Phillips drive oval head machine screws are available in marine grade 316 stainless steel.
Product number:
5106-052-002
