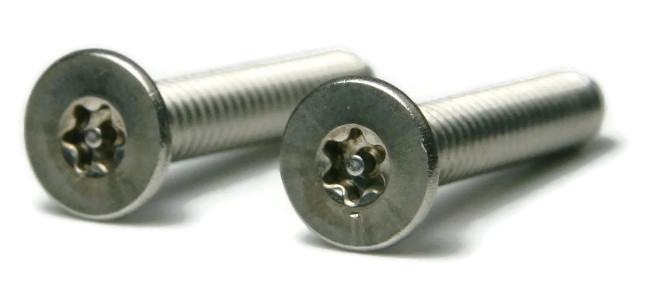

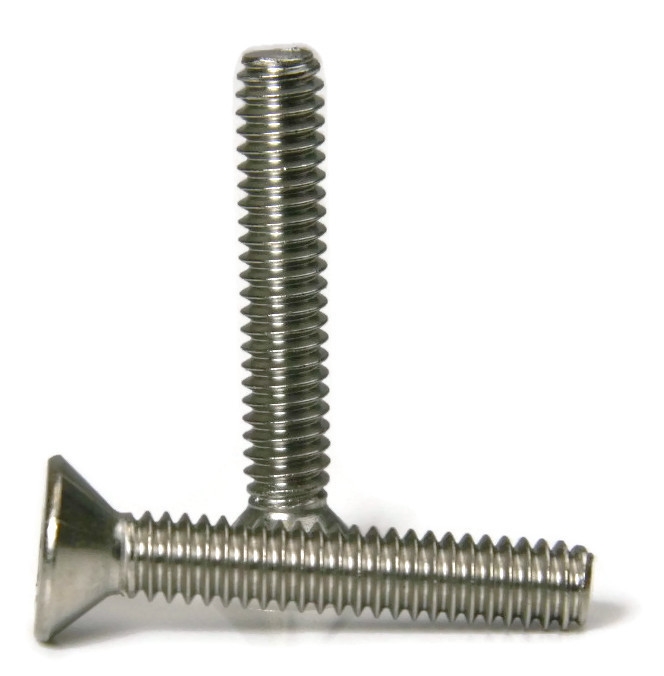

Tamper Proof Machine Screws, Star Pin-In Flat Head, Stainless Steel 18-8, #4-40 x 1/4 (T-10)
Diameter - Thread Pitch: #4-40
| Quantity | Unit price |
|---|---|
| To 99 |
$0.53*
|
| To 999 |
$0.45*
|
| From 1000 |
$0.42*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #4
- Drive Style: Star (with Pin)
- Head Type: Flat Head
- Tamper Proof: Yes
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Grade: 18-8
- Head Style: Flat
- Length: 1/4
- Material: Stainless Steel
- Part Number: 941000
- Product Type: Tamper Proof Machine Screws
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 40 Per Inch
- Thread Size: #4-40
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Star TP Drive: T-10
- Weight: 1 lb
- Tamper Proof Star Drive Size - T-10
- Recommended for metal to metal applications
- A machine screw is commonly identified by its small size
- Commonly used in food prep and processing areas
- Corrosion resistant: can prevent rust due to freshwater moisture
- Characterized by a 6 lobe or star drive with a central pin
- Pin grants additional protection by preventing conventional screwdrivers and grabbing devices from tampering with the fastener assembly
#4-40 Star with pin flat head security machine screws are made of 18-8 stainless steel.
