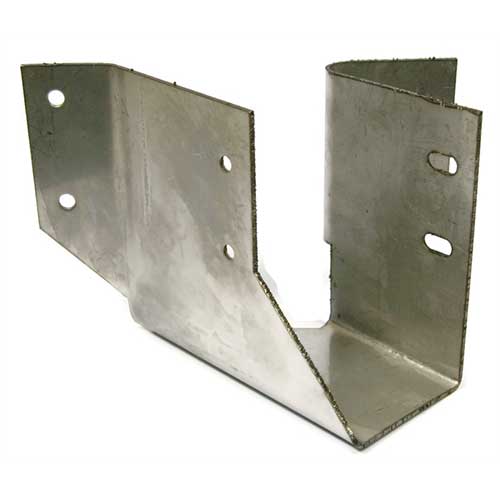

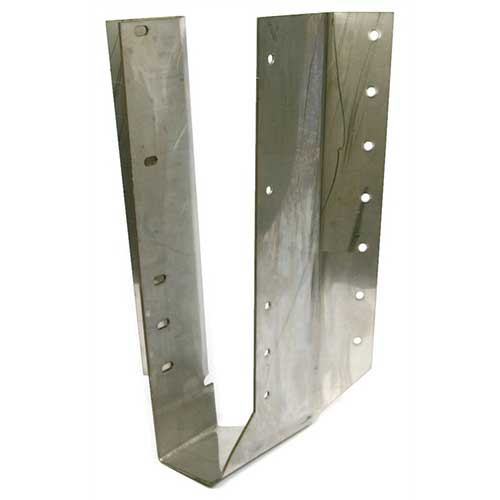

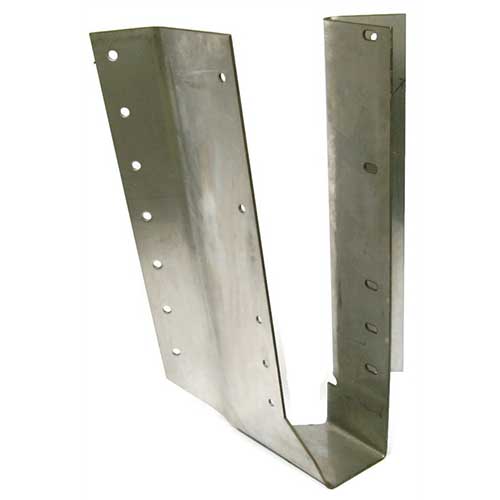

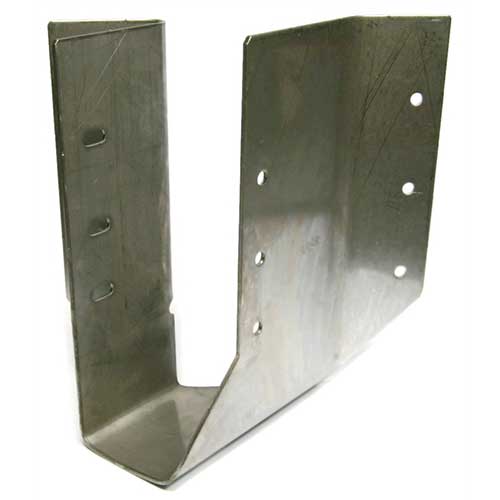

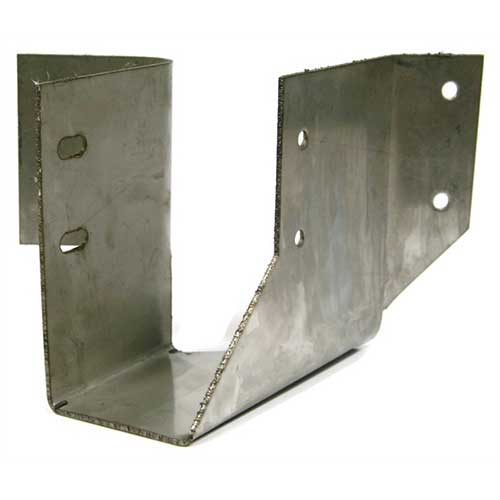

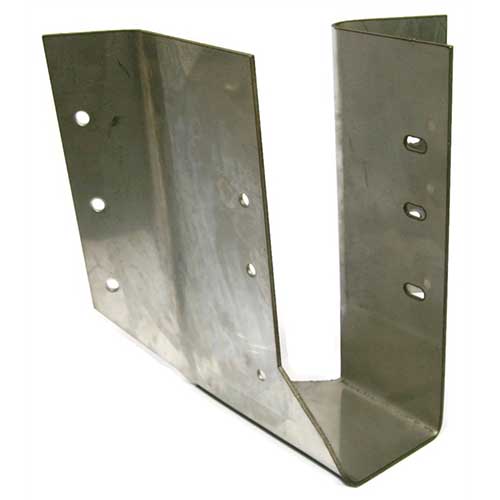

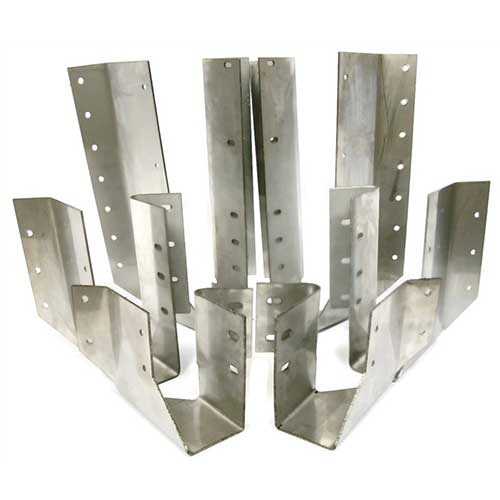

316 Stainless Steel Skewed Joist Hangers
Decking Applications | 316 Stainless Steel
- Used to help form the floor of decks
- Wrap around 3 sides of a joist
- Skewed joist hangers allow installation at 40-50 degree angles
- Height of joist hanger must match the depth of the joist
- The number of holes dictate the number of nails expected on install
- 316 Stainless Steel
- Perfect for harsh or marine environments
- Available in single sizes: 45-degree Right and Left hand variants
- Only use nails when installing joist hangers
- Ensure joist nails are the same grade as the skewed joist hangers
Skewed Joist Hangers are framing connectors attached to the ends of wood or timber joists to the ledger board.
| Joist Hanger Size / Type: | 2 x 4 - L/R | 2 x 6 - L/R | 2 x 10 - L/R | |||||
| Manufacturer Part Number: | SKH24L-SS / SKH24R-SS | SKH26L-SS / SKH26R-SS | SKH210L-SS / SKH210R-SS | |||||
| Simpson Part Number: | SUL24SS / SUR24SS | SUL26SS / SUR26SS | SUL210SS / SUR210SS | |||||
| Dimensions (Width): | 1-9/16" | 1-9/16" | 1-9/16" | |||||
| Dimensions (Height): | 3-1/4" | 5-1/4" | 9-1/4" | |||||
| Dimensions (Depth): | 1-7/8" | 1-7/8" | 1-7/8" | |||||
| Floor Load (Lbs.): | 510 | 830 | 1790 | |||||
| Uplift Load (Lbs.): | 565 | 1085 | 1565 | |||||
| Steel Gauge: | 16 | 16 | 16 | |||||
| Material: | 316 Stainless Steel | |||||||
.JPG)
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Corrosion Resistant
Yes
Grade
316
Marine Grade
Yes
Material
Stainless Steel
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
