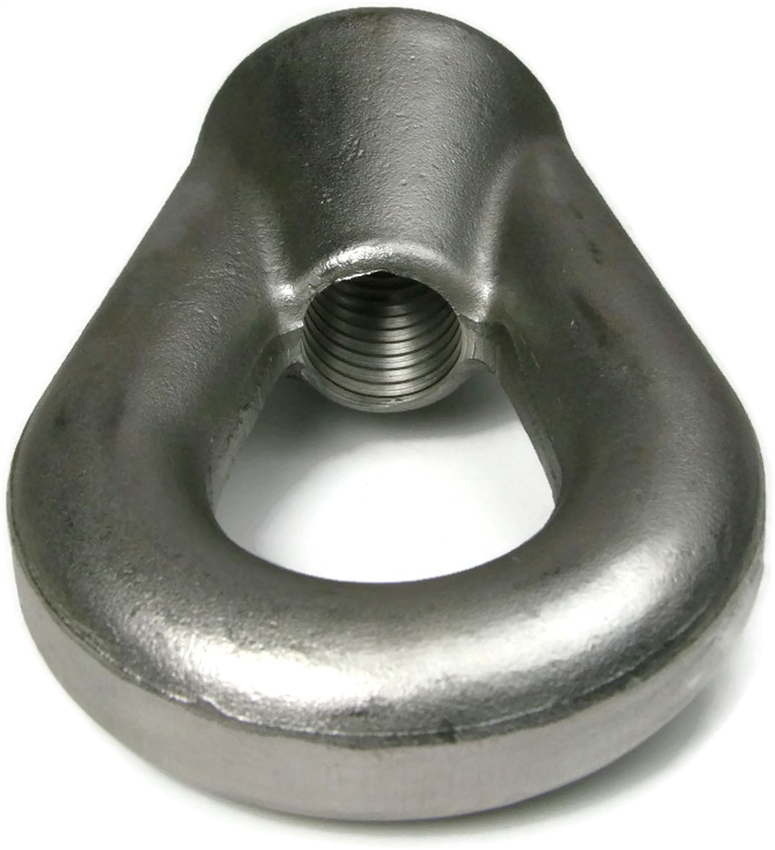

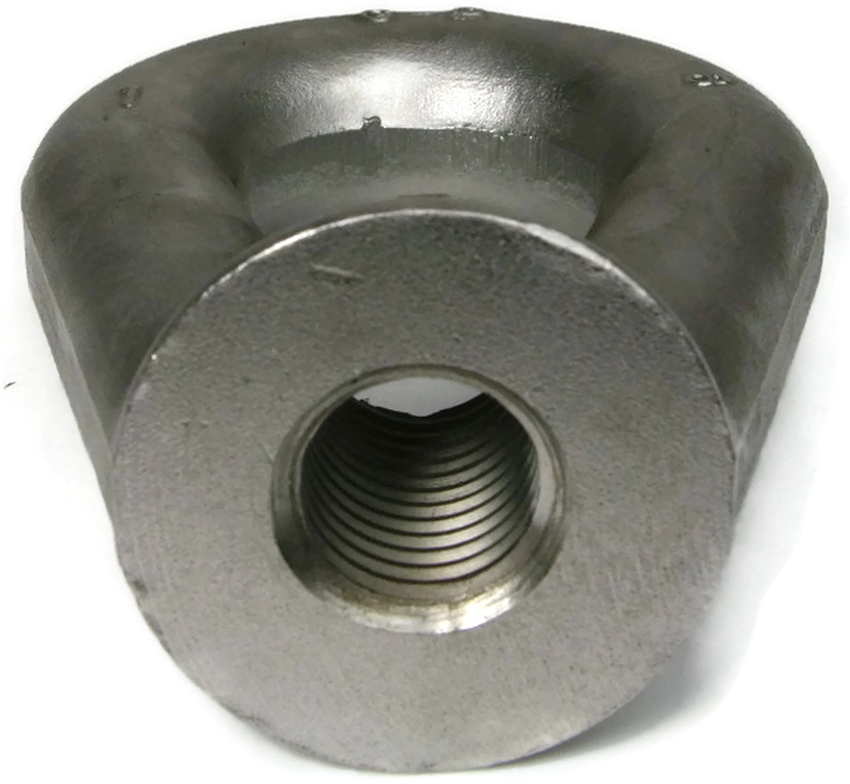

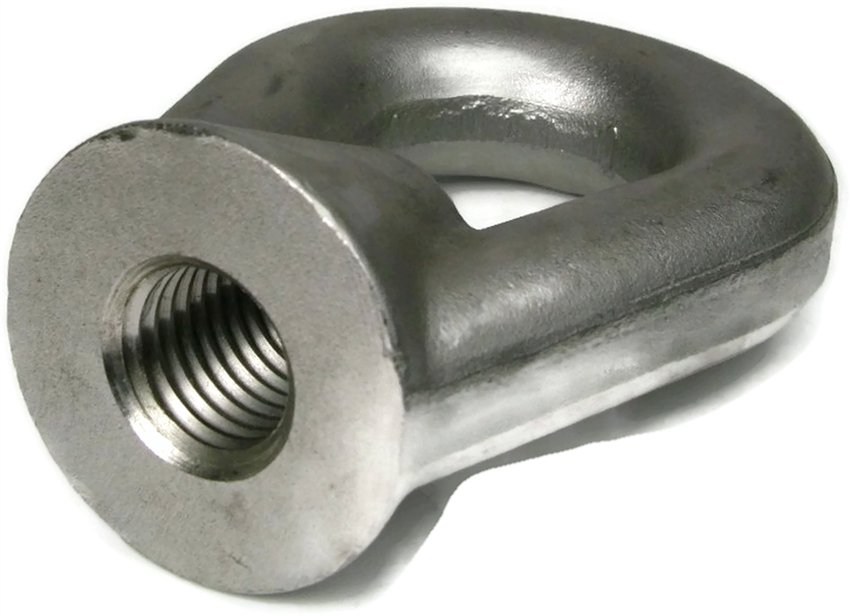

Ken Forging Style B Eye Nuts, Stainless Steel 304, 7/8"-9, USA Made
Forged Lifting Hardware
| Quantity | Unit price |
|---|---|
| To 9 |
$94.04*
|
| To 99 |
$81.77*
|
| From 100 |
$75.20*
|
- Brand: Ken Forging
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 7/8"
- Eye Nut Style: B
- Head Type: Eye
- Thread Direction: Right Hand
- Fit: 2B
- Grade: 304
- Head Style: Eye
- Internal Thread: 7/8/2009
- Material: Stainless Steel
- Part Number: 787392530604
- Product Type: Home > Forged Industrial Hardware > Eye Nuts > Style B
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 9 Per Inch
- Thread Size: 7/8"-9
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- Designed to receive a hook or a rope, cable, or chain
- Possess higher load capacities than other eye nut types of the same sizes
- Used to lift heavy equipment vertically, but are not recommended for angular lifting
- Typically used as attachments to equipment for transportation purposes that could not be moved by hand
- 304 Stainless steel is corrosion and rust resistant
- Suitable for exterior use where exposed to fresh water moisture
304 Stainless Steel Style B Eye Nuts come in larger sizes and feature a thicker and more heavy duty looped head and bell than a Style A Eye Nut.
Please Note: Eye Nuts are not eligible for free shipping.
Follow the Manufacturer (Ken Forge) safety information for installation and usage of Eye bolts and Nuts on their Website.
Sizes listed as: Thread Diameter - Thread Pitch
Product number:
1522-004-0002
