3/8"-7 Stainless Steel Lag Bolts
Diameter - Thread Pitch: 3/8" - 7
- Commonly referred to as a lag screw, lag bolt, or coach screws
- Significantly larger than most other screws
- Essentially just a very large wood screw
- Feature the sharp cutting threads of a wood screw
- Commonly used in exterior applications
- Corrosion and rust resistant

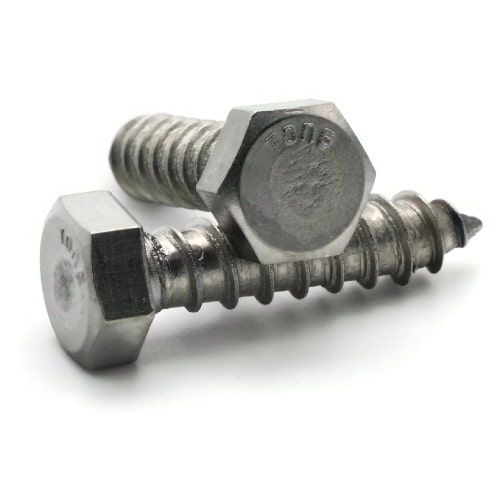

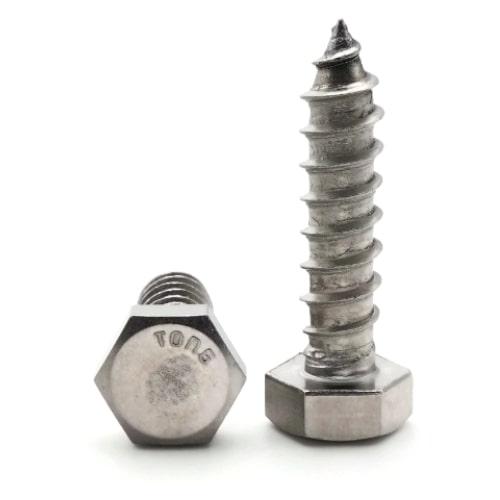

3/8" Stainless steel lag bolts in corrosion resistant 304 Grade Stainless Steel feature a Hex Head and are designed to be driven with a wrench or hex driver.
Lag Screws are typically used in heavy duty carpentry applications including lumber framing and anchoring equipment to wood such as machinery and large vices.

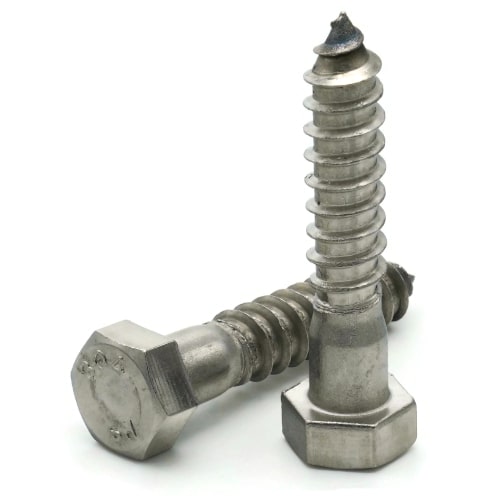

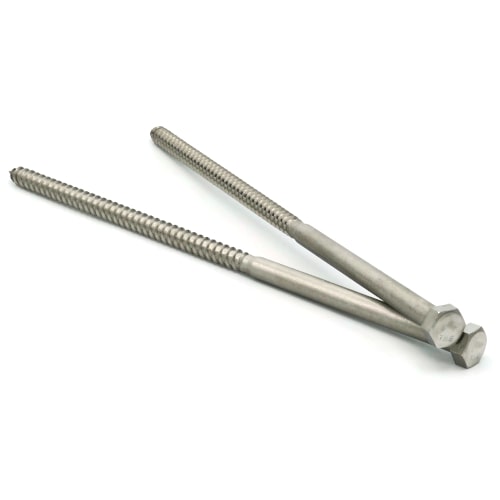

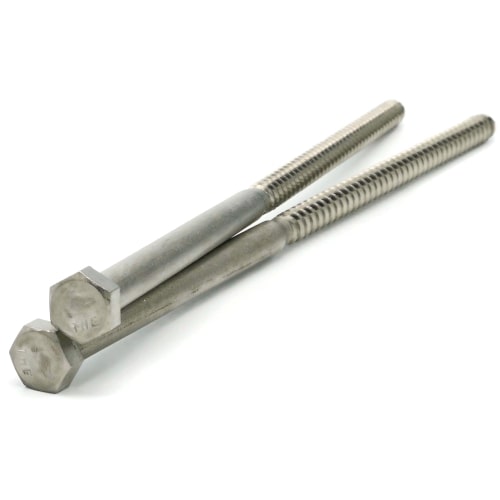

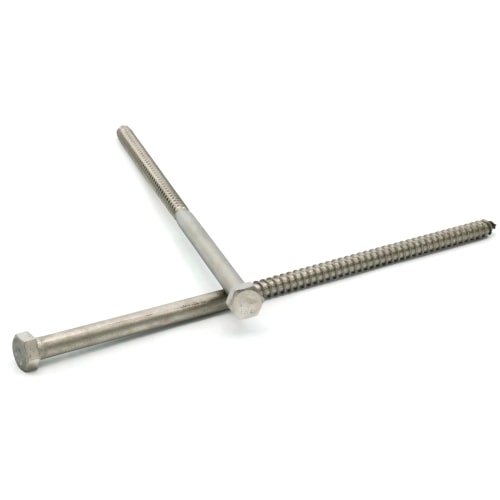

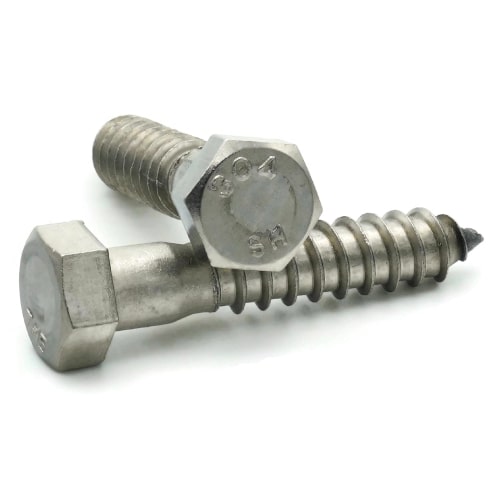

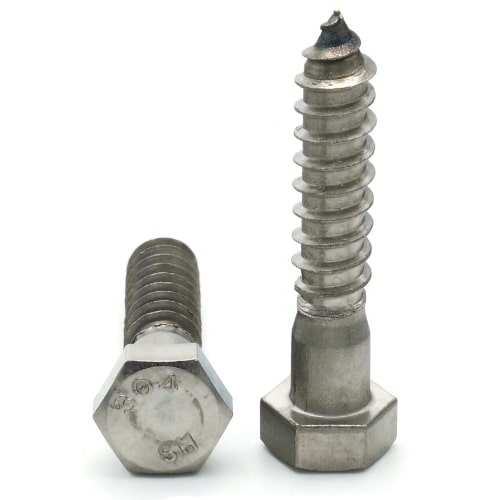

Hex Lag Screws in 3/8" diameter are Partial Thread in lengths 1" and over
See Product Specifications
Select Package Quantity
Loading ...
Product Specifications
Across Flats (Width)
9/16" (Max 0.562 - Min 0.551)
Body Diameter
3/8" (Max 0.375 - Min 0.369)
Color
Silver
Corrosion Resistant
Yes
Diameter
3/8"
Drive Style
External Hex
Grade
304
Head Height Basic
1/4"
Head Style
Hex
Material
Stainless Steel
Product Type
Lag Screws
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
7 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Width Across Corners
Max 0.650 - Min 0.628
Wrench Size
9/16"
