Wedge Anchor, Zinc Plated Steel, 3/8"-16 x 2-1/4"
Diameter - Pitch: 3/8"-16
| Quantity | Unit price |
|---|---|
| To 99 |
$0.52*
|
| To 999 |
$0.45*
|
| From 1000 |
$0.42*
|
- Across Flats (Width): 9/16" (Max 0.562 - Min 0.551)
- Additional Sizing Info: Wedge Anchors
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Diameter: 3/8"
- Drill (Hole) Size: 3/8"
- Drive Style: External Hex
- Head Type: No Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Zinc Plated
- Grade: 5
- Head Style: No Head
- Length: 2-1/4"
- Material (Duplicate): Zinc Plated Steel
- Material: Steel
- Other: Listed As
- Part Number: 730656624489
- Pattern: Wedge Anchor
- Product Type: Wedge Anchors
- Size: 3/8"-16 x 2-1/4"
- Size System: US
- Size Type: Regular
- Standards Met: REACH and RoHS Compliant
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 16 Per Inch
- Thread Size: 3/8"-16
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Wrench Size: 9/16"
- Used to anchor equipment to masonry materials such as concrete
- Installed into pre-drilled holes
- Non-threaded end is inserted into the whole then struck to expand
- The nut is then tightened against the washer to the installation material
- Corrosion resistant
- Not recommended for exterior use

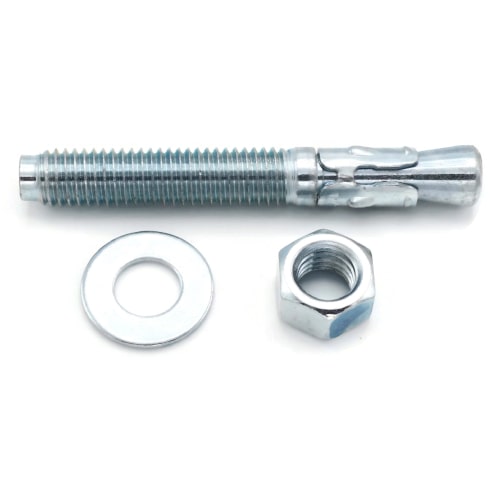

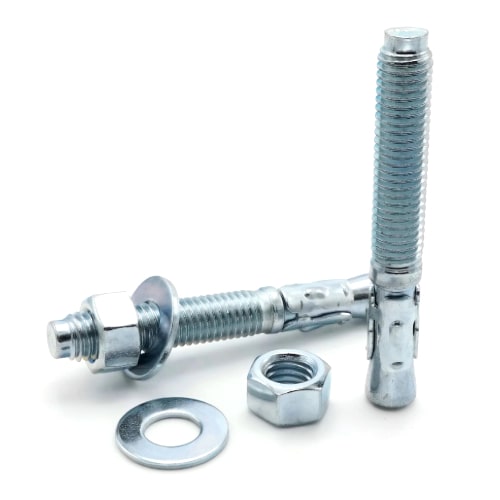

A 3/8"-16 (Grade 5) Zinc plated steel Wedge Anchor, also sometimes called an anchor bolt or expansion wedge, is used to secure or anchor materials and equipment to masonry surfaces. Anchor bolts consist of an expansion wedge bolt, a hex nut, and a flat washer.
AlbanyCountyFasteners.com stocks 3/8 inch wedge anchors zinc plated in various lengths, including:
- 3/8 x 2-1/4 wedge anchors zinc plated
- 3/8 x 2-3/4 wedge anchors zinc plated
- 3/8 x 3 wedge anchors zinc plated
- 3/8 x 3-1/2 wedge anchors zinc plated
- 3/8 x 3-3/4 wedge anchors zinc plated
- 3/8 x 5 wedge anchors zinc plated
- 3/8 x 6-1/2 wedge anchors zinc plated
- 3/8 x 7 wedge anchors zinc plated
REACH and RoHS compliance ensures these zinc-plated wedge anchors are safe and environmentally friendly. For top-quality 3/8-16 thread wedge anchors, rely on AlbanyCountyFasteners.com.
Product number:
1080-004-0002
