3/4"-10 Stainless Steel Shoulder Pattern Eye Bolts

3/4"-10 Stainless Steel Shoulder Pattern Eye Bolts

Forged Lifting Hardware | 304 Stainless Steel

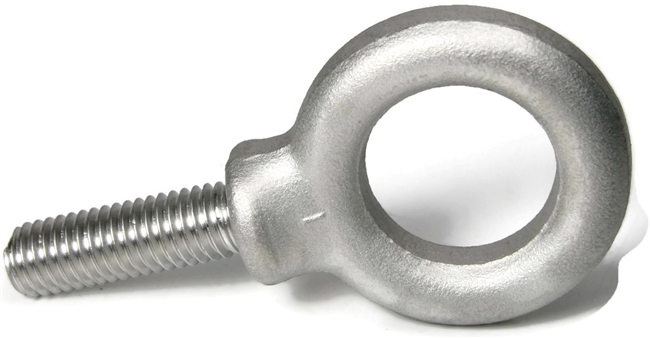

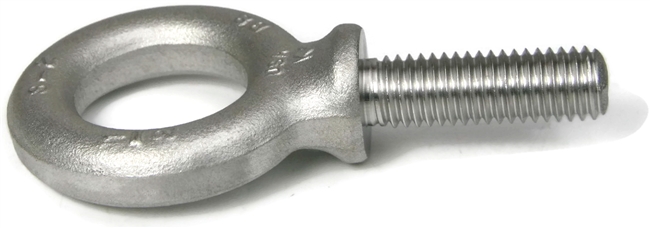

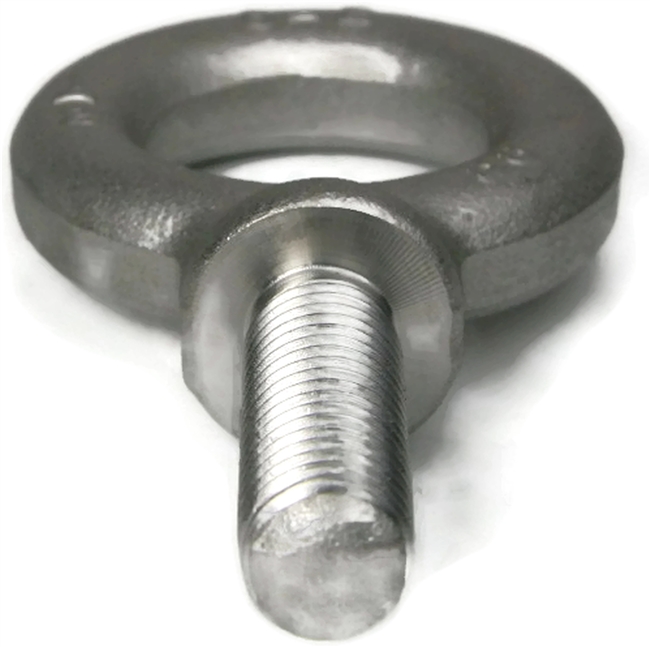

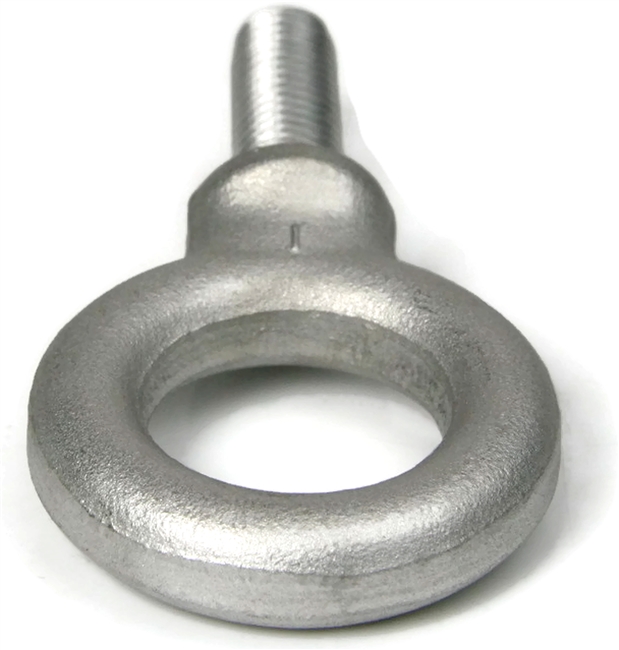

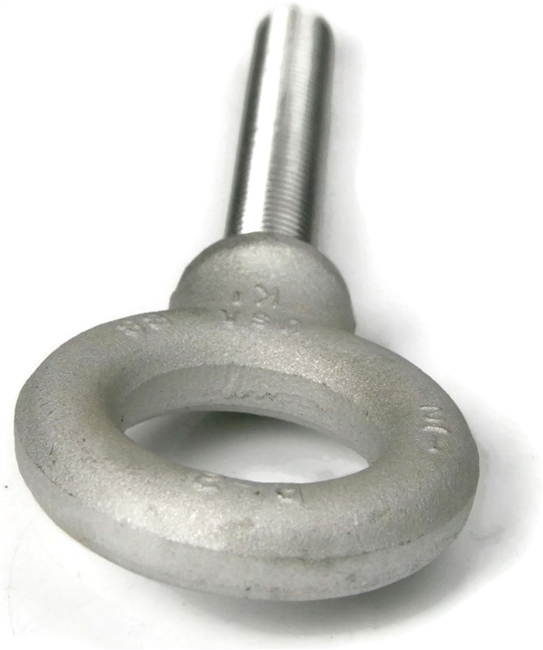

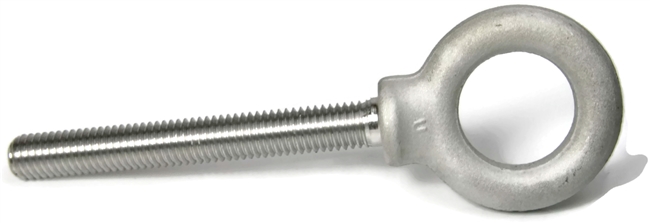

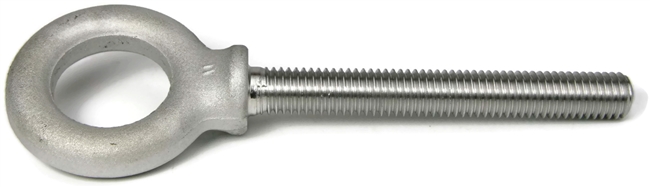

3/4"-10 Stainless Steel Shoulder Pattern Eye Bolts have a threaded shank with a ring for a head. This ring is used to hold a hanging fitting or a load, commonly seen in industrial rigging applications. In a shoulder pattern Eye Bolt, there is a shoulder between the shank and the eye. Plain eye bolts feature a ring directly above the threaded portion of the fastener, whereas shoulder pattern variety features a shoulder between the ring and the shank.

Eye bolts from Albany County Fasteners in 304 Stainless Steel are Drop Forged, Passivated and Electropolished for a durable corrosion resistant finish.

  • USA Made
  • ASTM A489 and UNC-2A
  • 304 Stainless steel is corrosion and rust resistant
  • Ideal for exterior environments or when exposed to fresh water moisture
Please Note: Eye Bolts are not eligible for free shipping.

If you are unsure if an Eye Bolt has the appropriate specifications for your application, or have a question regarding any of the information concerning Eye bolts, please call us at 866-573-0445 for further assistance.
Please follow Ken Forge's recommendations for load capacities of Eye Bolts and their safety information for the installation and usage of Eye bolts on their website.

Sizes listed as Shank Diameter - Thread Pitch x Shank Length
Proudly Made in The USAMADE USA

Please Note: This item is not eligible for free shipping

Select Products Below
Product Specifications
ASTM
A-193-B8
Brand
Ken Forging
Color
Silver
Corrosion Resistant
Yes
Drive Style
External Hex
Eye Bolt Pattern
Shoulder
Eye Inside Diameter
1-1/2"
Eye Outside Diameter
2-13/16"
Grade
304
Head Style
Eye
Material
Stainless Steel
Product Type
Eye Bolts
Shank Diameter
3/4"
Standards Met
ASTM A-193-B8
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
10 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
