3/4"-10 Hot Dip Galvanized Shoulder Pattern Eye Bolts

3/4"-10 Hot Dip Galvanized Shoulder Pattern Eye Bolts

Forged Lifting Hardware | Hot Dip Galvanized


  • USA Made
  • ASTM A-193-B8 and UNC-2A
  • Hot Dipped Galvanized Steel provides superior corrosion resistance
  • HDG offers superior resistance compared to zinc
  • Due to the finishing process for Hot Dip Galvanized fasteners, it is recommended to only use Hot Dip Galvanized fasteners with Hot Dip Galvanized fasteners and not mix metals. This can create threading and durability issues.

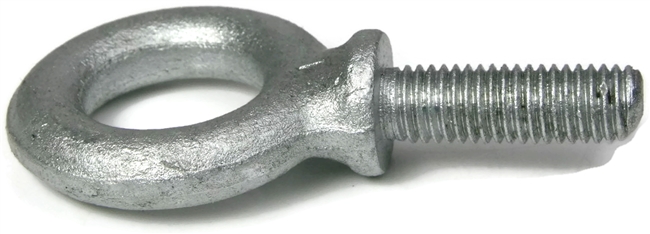

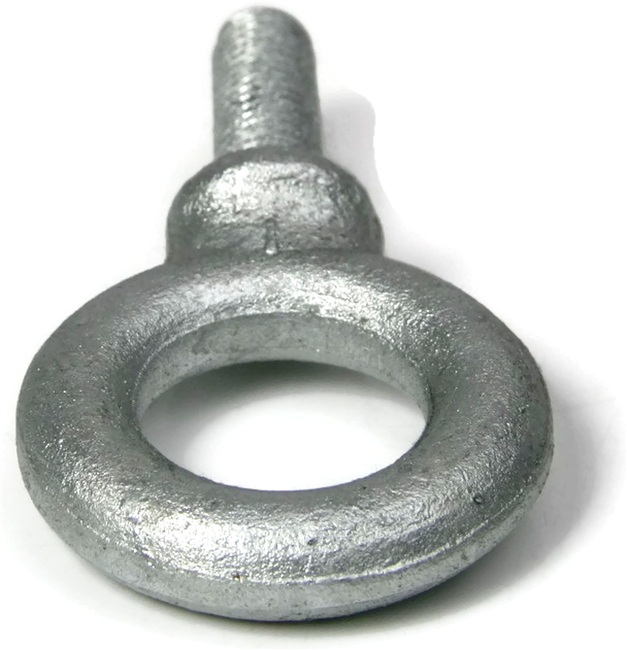

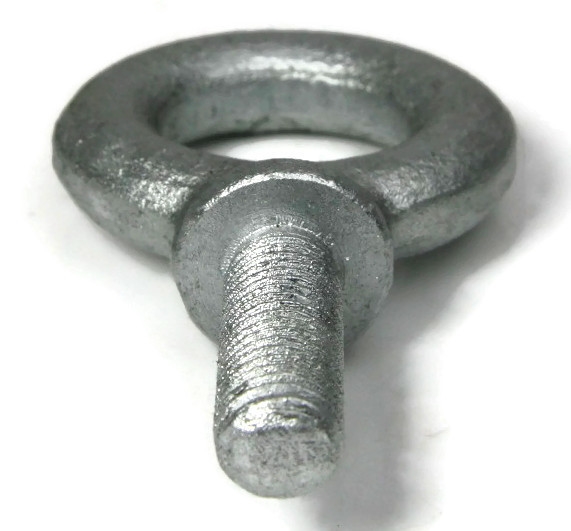

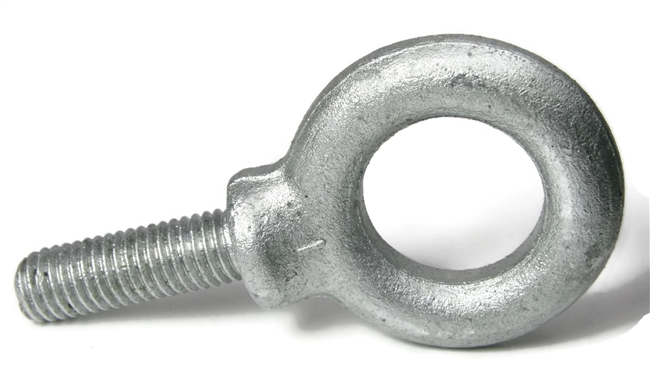

3/4"-10 Hot Dip Galvanized Shoulder Pattern Eye Bolts have a threaded shank with a ring for a head. This ring is used to hold a hanging fitting or a load, commonly seen in industrial rigging applications. In a shoulder pattern Eye Bolt, there is a shoulder between the shank and the eye. Shoulder pattern variety features a shoulder between the ring and the shank.

If you are unsure if an Eye Bolt has the appropriate specifications for your application, or have a question regarding any of the information concerning Eye bolts, please call us at 866-573-0445 for further assistance.
Please follow Ken Forge's recommendations for load capacities of Eye Bolts and their safety information for the installation and usage of Eye bolts on their website.

Sizes listed as Shank Diameter - Thread Pitch x Shank Length
Proudly Made in The USAMADE HERE



Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Eye Bolt Shoulder Pattern HD Galvanized - 3/4"-10 x 1-1/2"
SKU #1507-008-0002
Eye Bolt Shoulder Pattern HD Galvanized - 3/4"-10 x 1-1/2"
SKU #1507-008-0002
1
$18.82 (18.82/ea)
10
$171.30 (17.13/ea)
100
$1,576.00 (15.76/ea)
Subtotal: $0.00 /
Eye Bolt Shoulder Pattern HD Galvanized - 3/4"-10 x 2"
SKU #1507-008-0012
Eye Bolt Shoulder Pattern HD Galvanized - 3/4"-10 x 2"
SKU #1507-008-0012
1
$18.82 (18.82/ea)
10
$171.30 (17.13/ea)
100
$1,576.00 (15.76/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$0.69 (0.69/ea)
100
$59.00 (0.59/ea)
1000
$530.00 (0.53/ea)
Subtotal: $0.00 /
1
$0.57 (0.57/ea)
100
$48.00 (0.48/ea)
1000
$490.00 (0.49/ea)
Subtotal: $0.00 /
1
$20.88 (20.88/ea)
10
$203.90 (20.39/ea)
Subtotal: $0.00 /
1
$21.43 (21.43/ea)
10
$153.10 (15.31/ea)
100
$1,410.00 (14.1/ea)
Subtotal: $0.00 /

Product Specifications
ASTM
A-193-B8
Color
Gray
Corrosion Resistant
Yes
Drive Style
External Hex
Eye Bolt Pattern
Shoulder
Eye Inside Diameter
1-1/2"
Eye Outside Diameter
2-13/16"
Finish
Hot Dip Galvanized
Head Style
Eye
Material
Steel
Product Type
Eye Bolts
Shank Diameter
3/4"
Standards Met
ASTM A-193-B8
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
10 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
